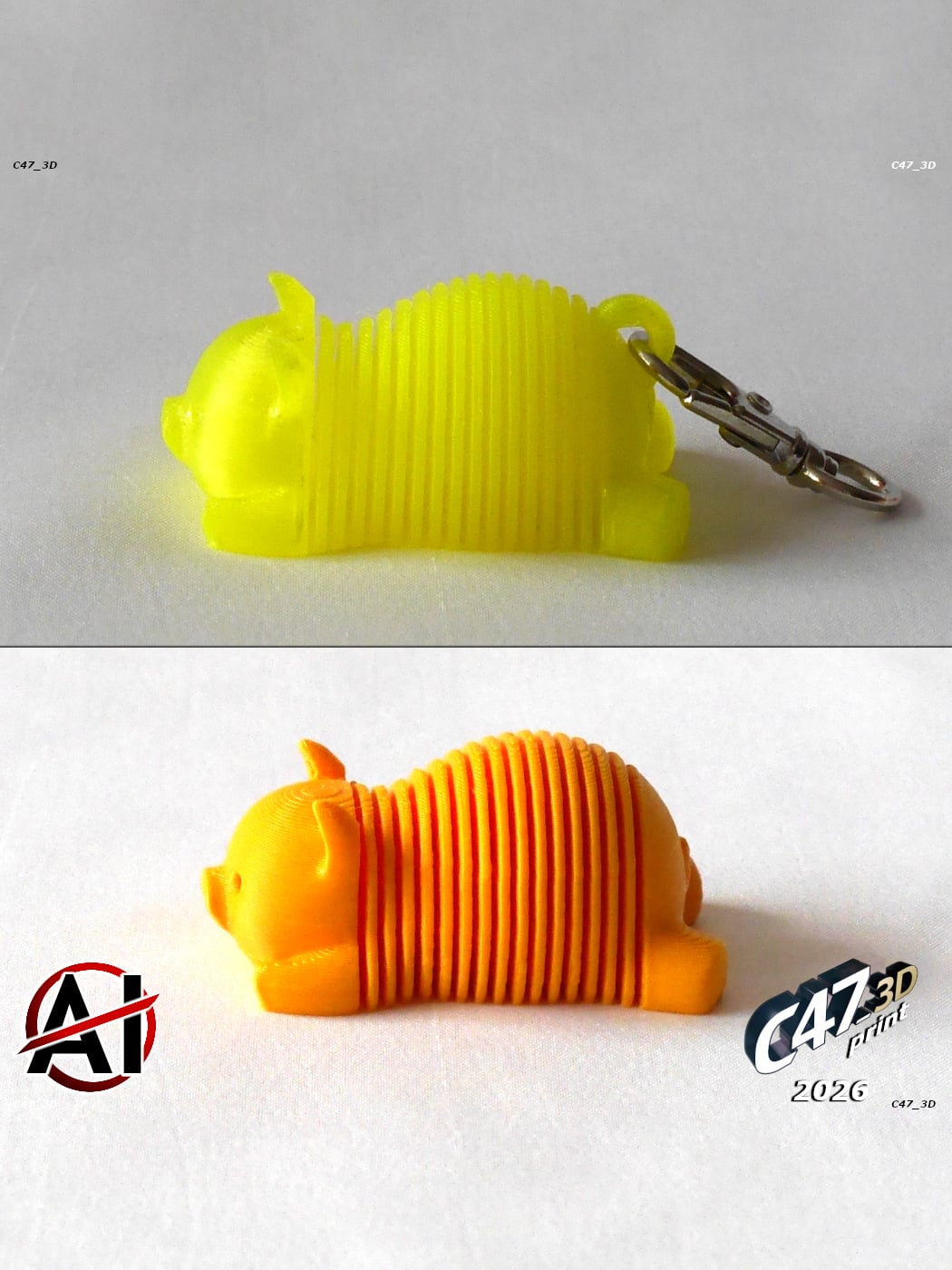

Small Pig with a springy body Version 1.1 12 VI 2026

Optional Keayring, printing in parts (body+eyes) and a multicolor print

If you want to sell prints of this model you can buy a Commercial License Membership for all of my models on Thangs

PRINGING TIPS 0.1-0.2mm layer height 2-3 walls No supports needed

Classic wall generator recomended (instead of Arachne) - top of coils will look cleaner

May be harder to print than typical models You will need a good bed adhesion and a good cooling Using a glue for 3d printing on a bed plate is recommended

You may be needed to separate spring coils from each other after a print. Usually just by expangins a spring or with your finger nails, in some more rare cases with a thin knife (scalpel) It mostly depends on your seam settings and filament stringing

If you will have problems with a nozzle knocking out spring parts you can use a brim or a Spring-joiner wich will connect spring coils with lines of filament - you will need to cut it with a knife after a print Drop a Piggy and a Spring-joiner to slicer and merge both models together I printed my pigs without any problems without using spring-joiners

Piggy with holes for a filament string eyes Drop a Piggy in slicer Right click and add a negative volume, select Eyes-negative-volume file After a print push some black filament in the holes and cut the excess with pliers. Then you can gently burn the string ends to round them up You can also leave a piggy with holes

KEYRING Drop a Piggy and a Keyring addon in slicer, merge both models together

MULTICOLOR Drop a Piggy and both MULTI files in slicer and merge models together. You can also use it with a keyring Then select a color for each part

Tips if the model is breaking Filament should be dry and with a good self adhesion Printing with wet filament will make the model more brittle (especially PLA) and Piggy may break when stretched

Silk filaments (especially dual or tripple color) and the ones with particles (like 'marble') may not be a good option - but it all depends on the filament

You can try printing it slower, bonds between layers should be stronger
