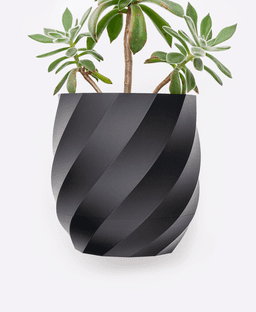

Twisted Planter

This planter is the same design as the Cracked Spiral Planter, just without the cracked part.

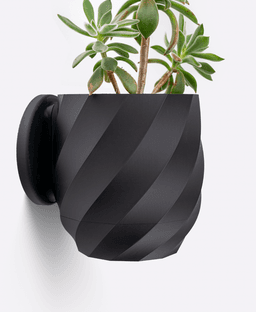

These can mount to your wall using command strips or screws and feature a hidden, twist off drip tray.

Two sizes available (2.75" and 4.5") and two variations for each size (wall mounted or tabletop).

Supports None needed!

Scaling I wouldn't recommend scaling this one since it perfectly fits the command strips and the screw holes are designed specifically for #10-12 x 1-1/4 in anchors and screws.

Orientation The planter and tray should have their bottoms on the build plate. All mounts should have the sliding dovetail facing up.

Print Settings .2mm layer height 15% grid infill (gyroid for wall mounts) 2 walls

Filament & Hardware Filament: Bambu Lab Latte Brown Matte PLA Hardware: Command Medium Picture Hanging Strips #10-12 x 1-1/4 in anchors and screws

Filament and non 3D printed items for this model can be found on my Amazon Storefront, linked here: https://linktr.ee/loftedgoods

Community Makes (1)
Make by user
Make by user


Community Makes (1)
Make by user
Make by user

Discussions
maxelman
maxelman
 3d model
PrinterBambu Lab X1
P
Penche1903

Is it possible to add lighting to this model at the bottom, like this one?

https://thangs.com/designer/LoftedGoods/3d-model/Wall%20Light%20Planter%20-%20The%20Grid-1376432

F
F2g

I got my self this very nice pot to go with the rail, as i just love the concept.

My issue though: I dont have that nice snappy action in the tray. Mine just freely rotates open and closed. Did you change that at some point? Or is it a problem with filament or printer tolarences?
