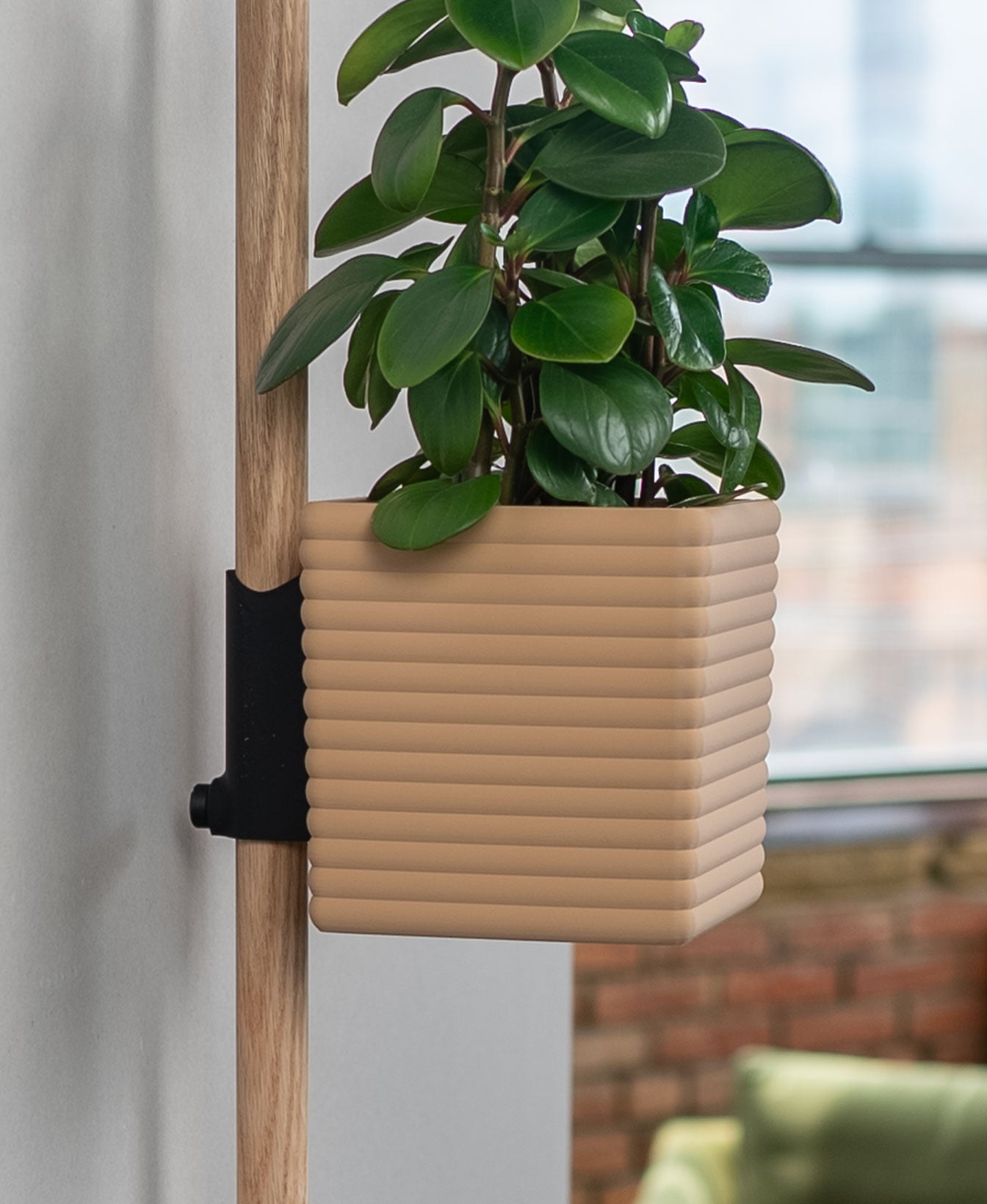

A highly requested square, tapered version of The Poppy. Compatible with The Vertical Rail, The Horizontal Rail, The Tripod Rail, and my original command strip wall mount.

The Command Strip mount is included in this file. The files for both versions of The Rail can be downloaded from the links above!

Supports None needed!

Scaling Cannot be scaled since this is designed to fit with my universal dovetail system.

Orientation

• Everything prints upright with its bottom on the build plate
• The wall mount prints flat with the sliding dovetail facing up

Print Settings

• .2mm layer height
• 15% grid infill | 15% gyroid infill for wall mount
• 2 walls
• Set bridge flow to 1.6 for drip tray and wall mount

Filament

Bambu Lab Matte PLA

Colors I used:

• Latte Brown

Hardware

• #10 - #12 x 1-1/4" screws and anchors
• 3M Medium Picture Hanging Command Strips

Filament and non 3D printed items for this model can be found on my Amazon Storefront, linked here: https://linktr.ee/loftedgoods
