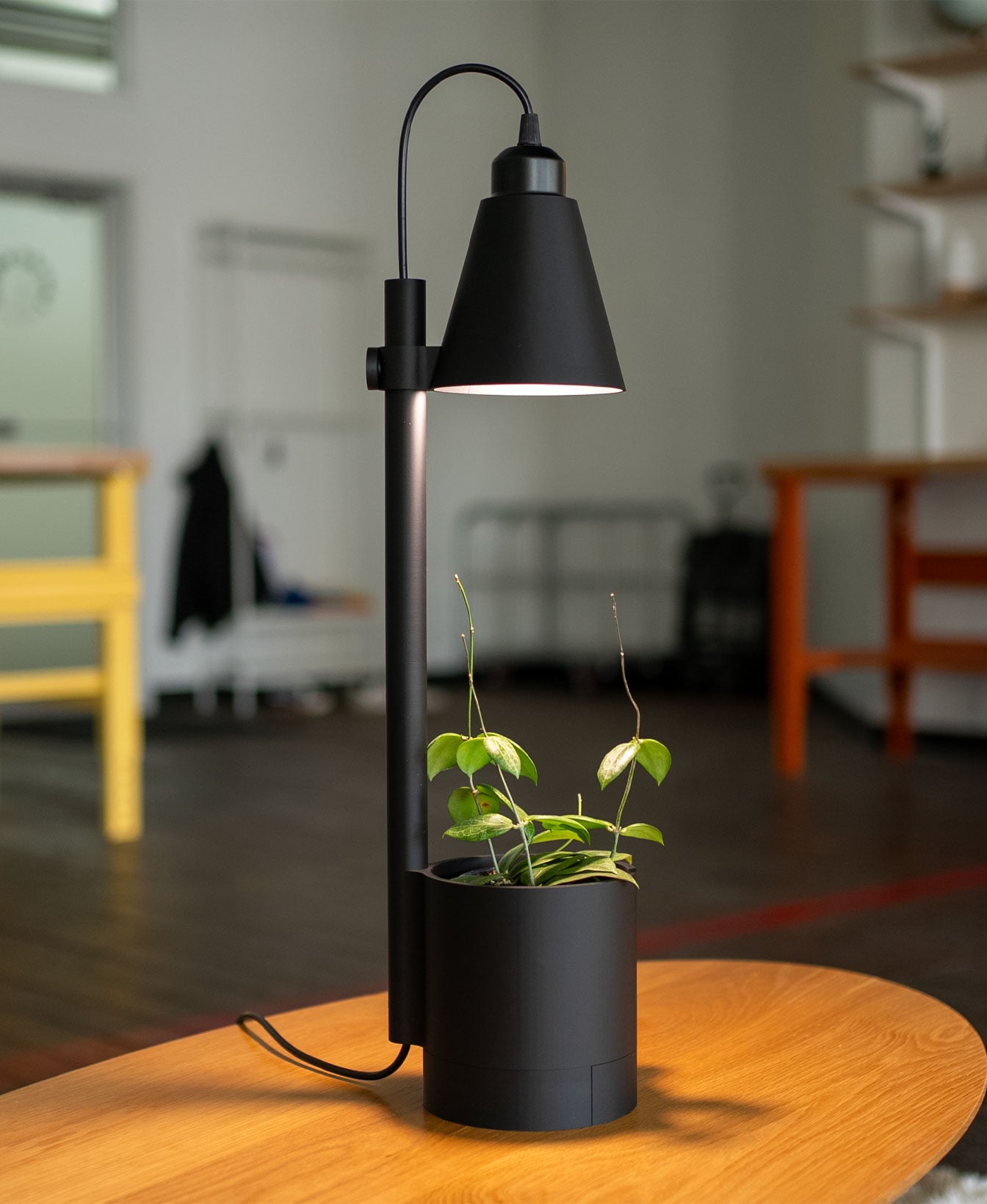

Grow Light Planter
Update: The drip drawer has been updated to be contained within the riser so it's more of an actual drawer. I've also added 3 different drawer options with different pulls.
I'm always trying to improve my designs and this update was a direct result of your feedback, so thank you!
After I made my wall mounted grow light system, I got a lot of requests for a tabletop version, so here it is!
I started designing this to have the twist-off drip tray that most of my other planters have, but realized that didn't make a whole lot of sense from a usability perspective since you'd have to lift the whole thing up to remove the drip tray. So I made the drip tray more of a drip drawer that you can pull out and dump the excess water.
Important You must only use a 9W light bulb. I've linked the 9W grow lights I use in my Amazon Storefront at the bottom of this description.
Assembly
- Thread the extension rod onto the rod that's attached to the pot
- Twist the riser onto the bottom of the pot. This can be positioned with the opening in the front or either side, whichever you prefer
- Slide the shade onto the rod from the top
- Secure the shade with the set screw

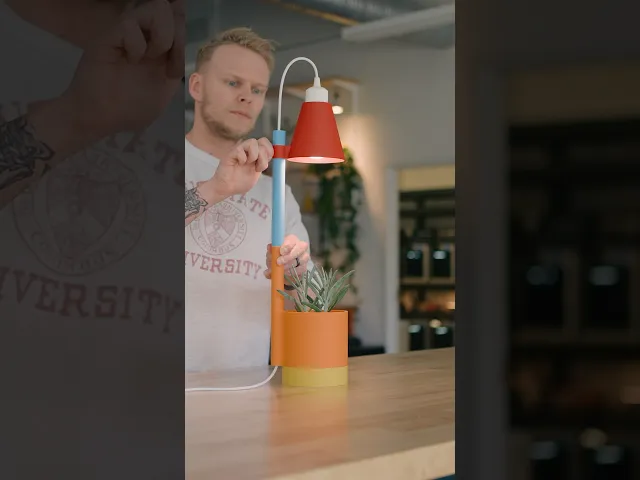

- The pendant light kits (linked in my Amazon Storefront) can be disassembled so you can feed the cord up through the rod. Video tutorial here
- Reassemble pendant light, insert into shade, and screw in 9W LED bulb
Supports Supports are needed inside the shade. Supports are not necessary for any other parts.
Print Settings
- .2mm layer height
- 15% grid infill
- 2 walls
Filament & Hardware
Filament
- Bambu Lab Charcoal Matte PLA
Hardware Links to the exact products are in my Amazon Storefront linked below
- E26 pendant light kit
- 9W LED Grow Bulbs
Filament and non 3D printed items for this model can be found on my Amazon Storefront, linked here: https://linktr.ee/loftedgoods
