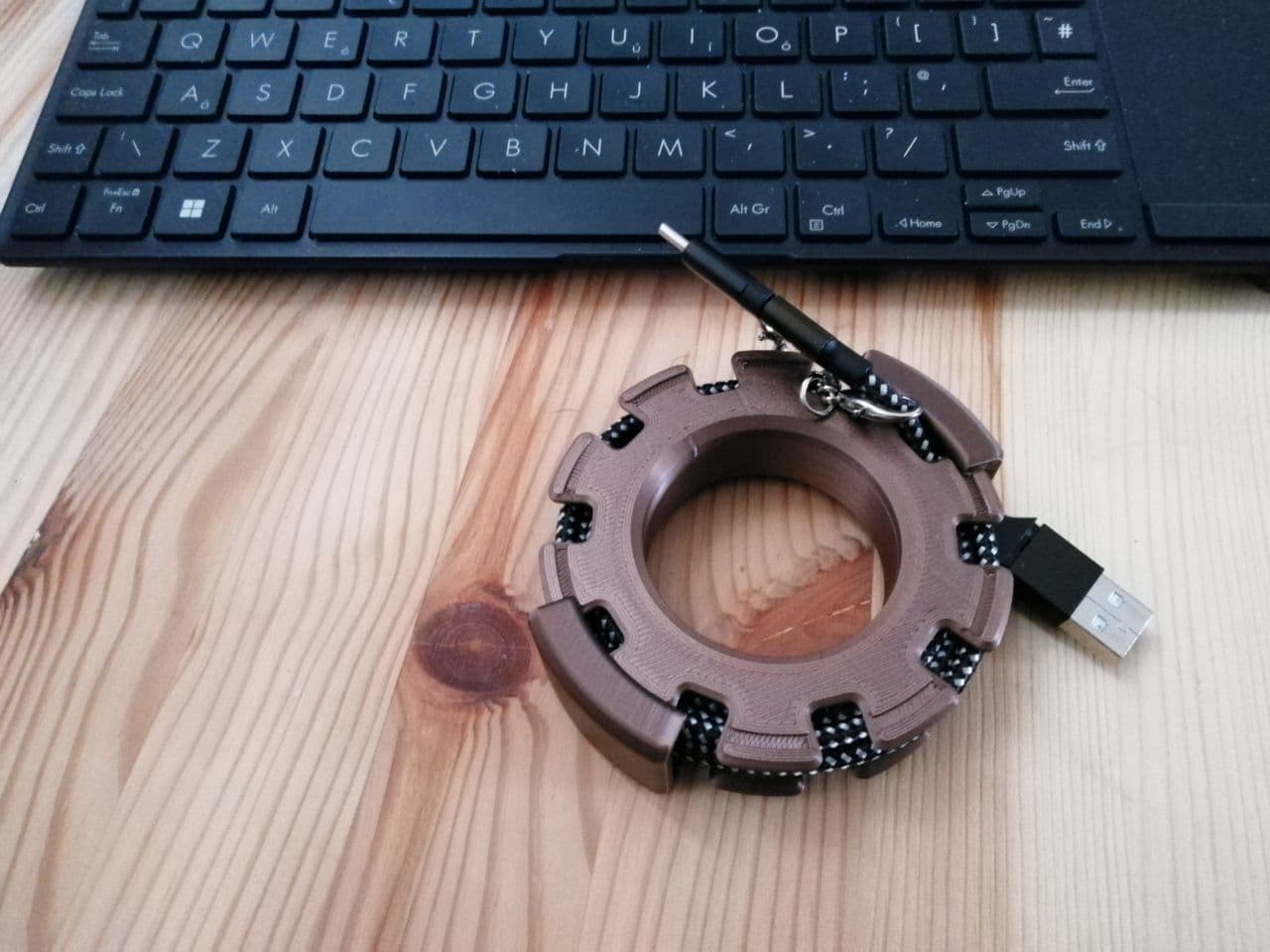

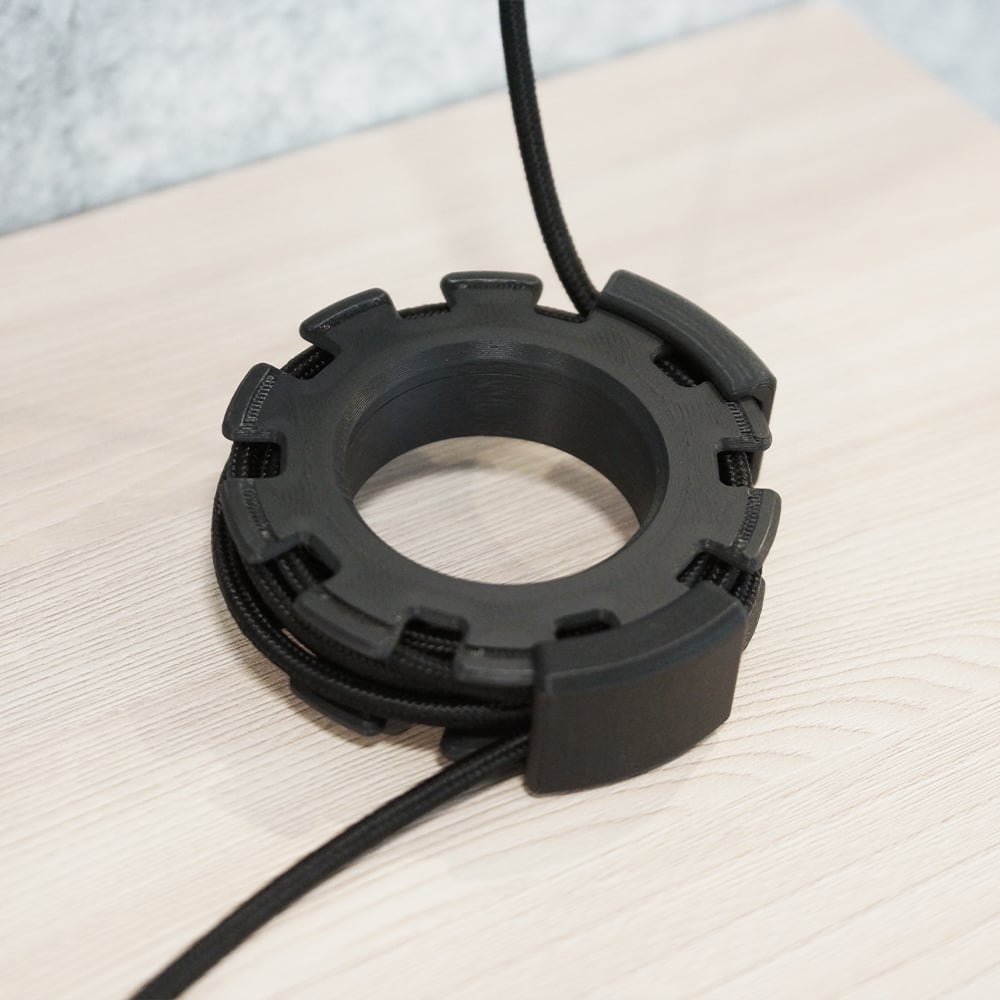

Cable Organiser - Cable Roll

A modular cable management device. Modular design allows volume expansion by stacking “cable-roll-ext-thewhatbrandsg.stl”.

Dimensions:

• Cable Roll Diameter - 56.4mm.
• Centre Hole Diameter - 44mm.

Suggested print settings:

• Layer height 0.2mm.
• Infill 15%.
• Perimeters: 5 (for strength).
• No supports are needed but follow the suggested print orientation for ideal results.

Assembly The snap-on "Cap (cable-roll-cap-thewhatbrandsg.stl)" piece may be snug initially but should loosen up after a few rotations around the roll.

Changelog:

• 1 Jul 2024: Added a “Cap Ext” for use with one "cable-roll-ext-thewhatbrandsg.stl".

NOTE Most of our designs are printed and tested on a Prusa Mini and MK4, so tolerances may vary if you are using a different brand. While we strive for a smooth experience with our designs, we appreciate your understanding if tolerance issues arise.

This work is licensed under a Creative Commons (4.0 International License) Attribution—Noncommercial—Share Alike
