🖥 Rosewill ACA502B Reinforced ATX Tower Feet Replacement

📝 Introduction

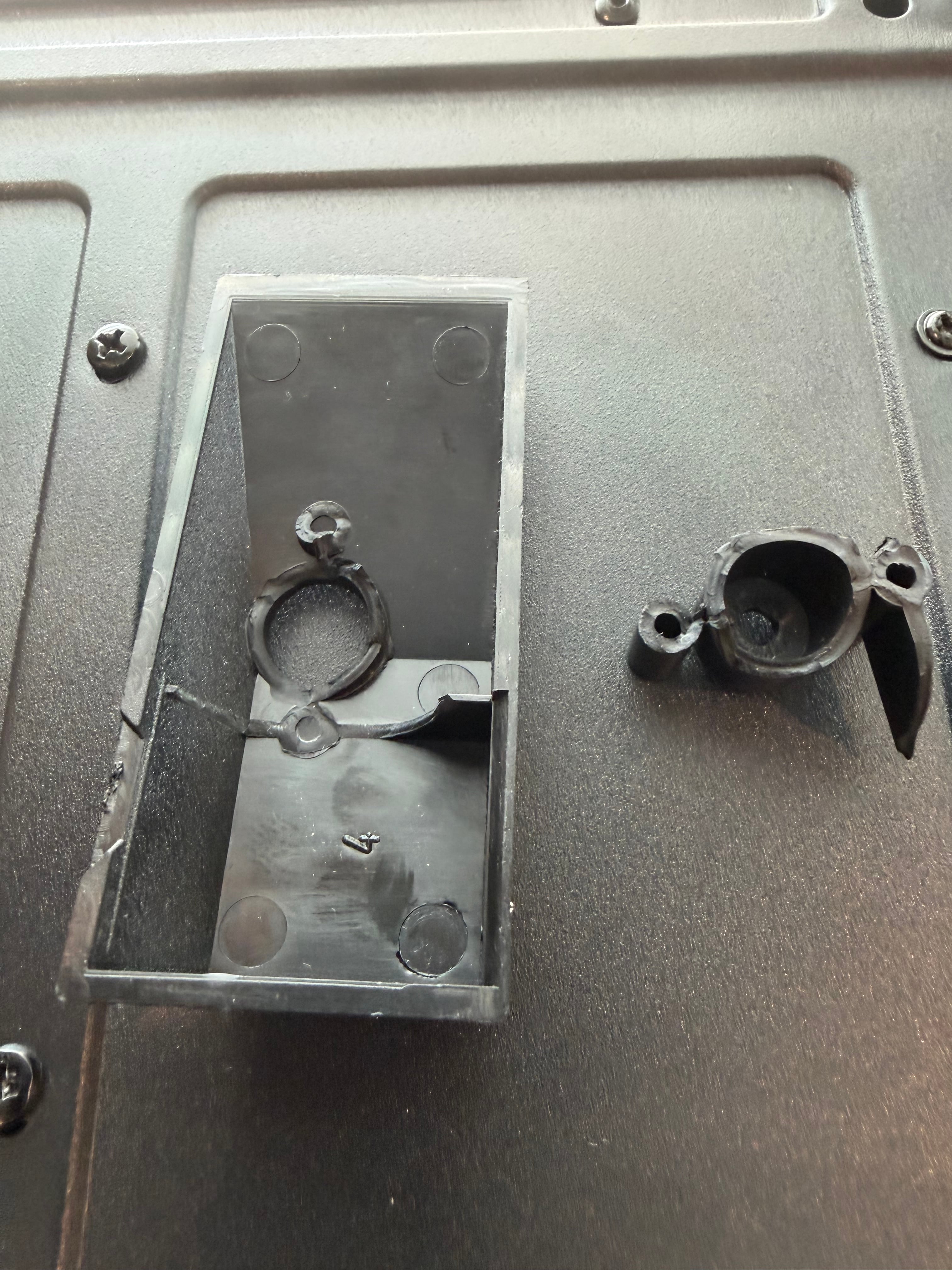

The original feet on the Rosewill ACA502B ATX tower are a weak point in an otherwise solid case design. The factory feet are prone to cracking, especially if the case is moved or transported roughly. Heat exposure and repeated stress over time may also contribute to the failure of the original plastic design.

I redesigned these feet from the ground up with durability and long-term reliability in mind. This replacement design is a near 1:1 reproduction of the original foot while improving the areas where the factory design falls short.

The goal was not simply to create a replacement, but to create a stronger, more reliable version that preserves the original case functionality while improving structural integrity.

🔧 Design Details

Every detail of the original design has been carefully accounted for, including:

Accurate reproduction of the original foot dimensions

Matching rivet locations and mounting geometry

Side panel insert slot compatibility

Preserved pivot pin design to prevent twisting

Improved stability so the feet remain straight and aligned under load

Original 3mm mounting screw compatibility

Unlike the original design, this version has been reinforced using stronger materials and improved geometry to better withstand movement, installation stress, and everyday use.

There are two files.

rosewill_aca502b_foot_a

rosewill_aca502b_foot_b

Depending on the orientation you need or if you just want to print two of each, you have options.

I also added a 12mm x 12mm square recessed area underneath the foot to accommodate anti-skid pads. This provides improved grip and vibration reduction while keeping the pad securely positioned.

If you use a different size anti-skid pad, please contact me. I would be happy to modify the design to accommodate other pad sizes.

🖨 Print Settings

This design was created with strength and durability as the priority.

Recommended Filaments:

PETG (recommended)

ABS

TPU (for additional flexibility and vibration dampening)

Suggested Settings:

Layer Height: 0.20mm

Infill: 15–20%

Supports: Normal support recommended

Wall/perimeter count: Use your preferred strength settings for durable functional parts

Print Orientation:

Anti-skid foot surface facing downward

Pivot tabs facing upward

With the proper support settings, this print requires minimal cleanup while producing a strong and functional replacement part.

🤝 Collaboration & Remixes

Collaboration, improvements, and community modifications are encouraged!

If you create modifications, improvements, or alternate versions of this design, please make sure to:

Tag the original author's Printables page

Provide proper credit to the original design

Reference this project as the foundation of your modification

The purpose of this project is to continue improving the design and provide the community with a stronger, more reliable solution for the Rosewill ACA502B case.

💬 Questions, Requests & Feedback

Questions, comments, suggestions, and modification requests are always welcome.

If you need a different anti-skid pad size, mounting adjustment, or have an idea for improvement, please reach out. I am happy to help adapt the design for other users and setups.

Enjoy the improved stability and durability of your Rosewill ACA502B!
