ABOUT:

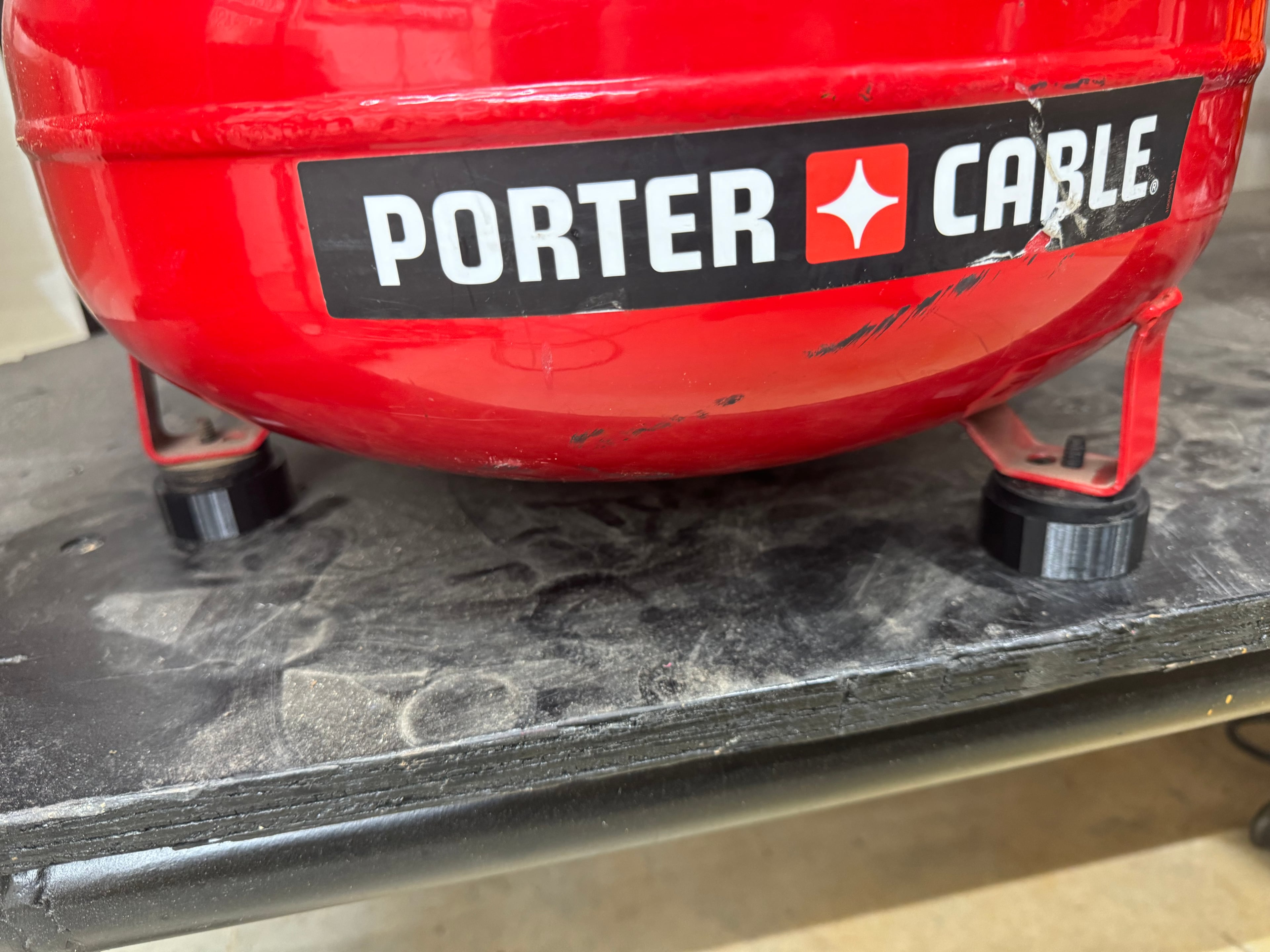

Made some anti-skip feet for my pancake compressor that lives on a wooden board under my metalworking bench. Most people keep it under a work bench of some kind. Hopefully it's wood.

This will work with any pancake style compressor's feet. Porter Cable, Craftsman, Ryobi, etc…

If you need another diameter for yours, I can help out.

I only have one pancake compressor so I don't know what sizes are out there.

FEATURES:

Keeps the compressor in one place without skipping. Will accommodate a bolt or screw depending on what size you need. (5mm or 10mm). The feet have an ID of 40mm.

HARDWARE NEEDED:

(3) 5mm or 10mm ¾" or 1" long fasteners.

PRINTING SUGGESTIONS:

I would use PLA, TPU 95a, or ABS. Basically anything shock resistant.

It shouldn't take more than 1hr to print all three.

I would do 10-15% infill.

No brim is needed because of the large print surface.

License CC BY-NC-SA Soldering Base by scupoli is licensed under the Creative Commons - Attribution - Non-Commercial - Share Alike license.

FINAL THOUGHTS:

Maybe someone will find this useful.

Cheers!
