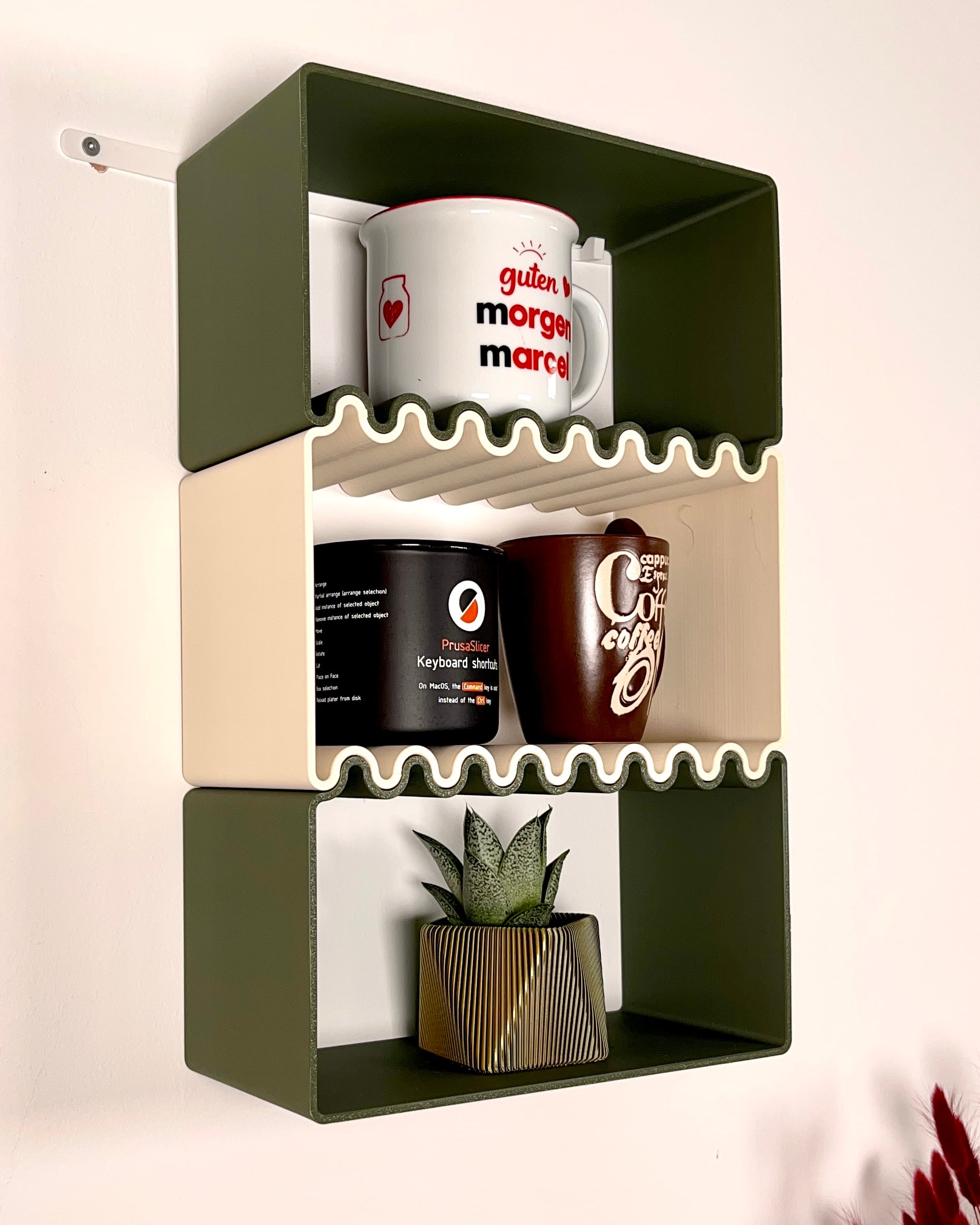

Cup shelf wave

Upgrade your kitchen with this minimalistic and modular cup shelf system. You can add as many middle parts as you like.

The "Cube wave" side table can be found here

Size & Scaling: 240x150x120mm (one part) Scaling can be possible (you might need to experiment with the dovetails due to tolerances) Print settings: main bodies: 0.2mm layer height 2 walls (with bright filament like white you might see the infill trough..) 15% infill brim position the seam in a corner, it is less visible then

dovetail/hanger: 0.12mm layer height 4 walls 30% infill If you have problems getting the connector in experiment with X-Y expansion offset.

Additional hardware: Depending on your wall you will need dowels and screws/hooks. The hanger is designed for 4/4.5mm countersunk wood screws.
