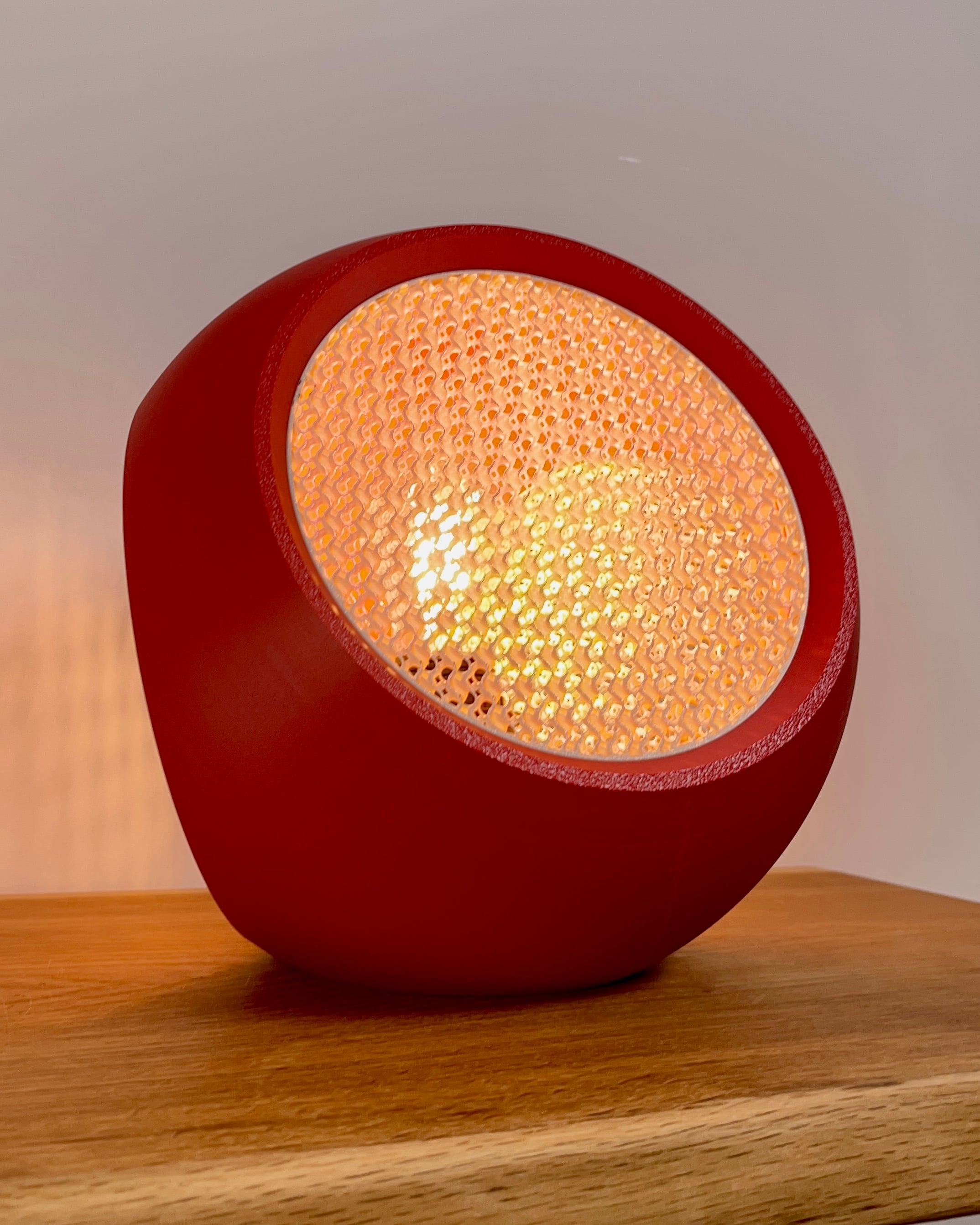

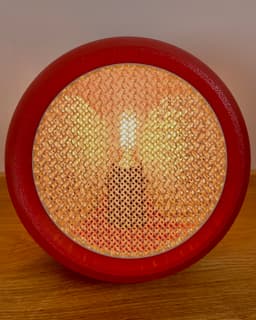

Cibol - a table lamp

Cibol is a modern desk lamp to illuminate your space.

Size & Scaling: Two sizes available: 21cm: fits Prusa MK3/220 cubed or bigger 25cm fits Bambulab P1/X1 or bigger Scaling is not recommended, as the parts are designed for bulb sockets to fit

Print settings: main: printed on the front face (see pictures) locate the seam on the back 0.12-0.16mm layer height 2-3 walls tree support

plate: 0.16mm layer height 0.6mm line width or more 2 walls 0 top/bottom layers 15-50% gyroid (higher for more diffusion)

Additional hardware: E14 or E27 light cord short light bulb

Filament: Choose a whiteish filament for the plates and a contrasting one for the main part
