Printer Health Check - quick print torture test

2.4K downloads · 4 years ago · This is a quick print printer health check. It takes just over half an hour to print. It has overhan

This model is restricted by licensing terms.

View license.

Description

This is a quick print printer health check. It takes just over half an hour to print. It has overhangs, holes, curved recesses, strings, posts, thin walls and surface details and part of the base is one layer thick so that you can check first layer quality.

Print at 0.3mm layer height with the 'print thin lines' box checked

Community Makes (6)

I also tried to print, using sermoon-v1 215° + 60° ； Too much stringing, I guess it's temperature is too high. When I used 200° to print, can't working.

Printed smoothly with the Starlex DHB hot-end, 0.4 brass 24mm nozzle

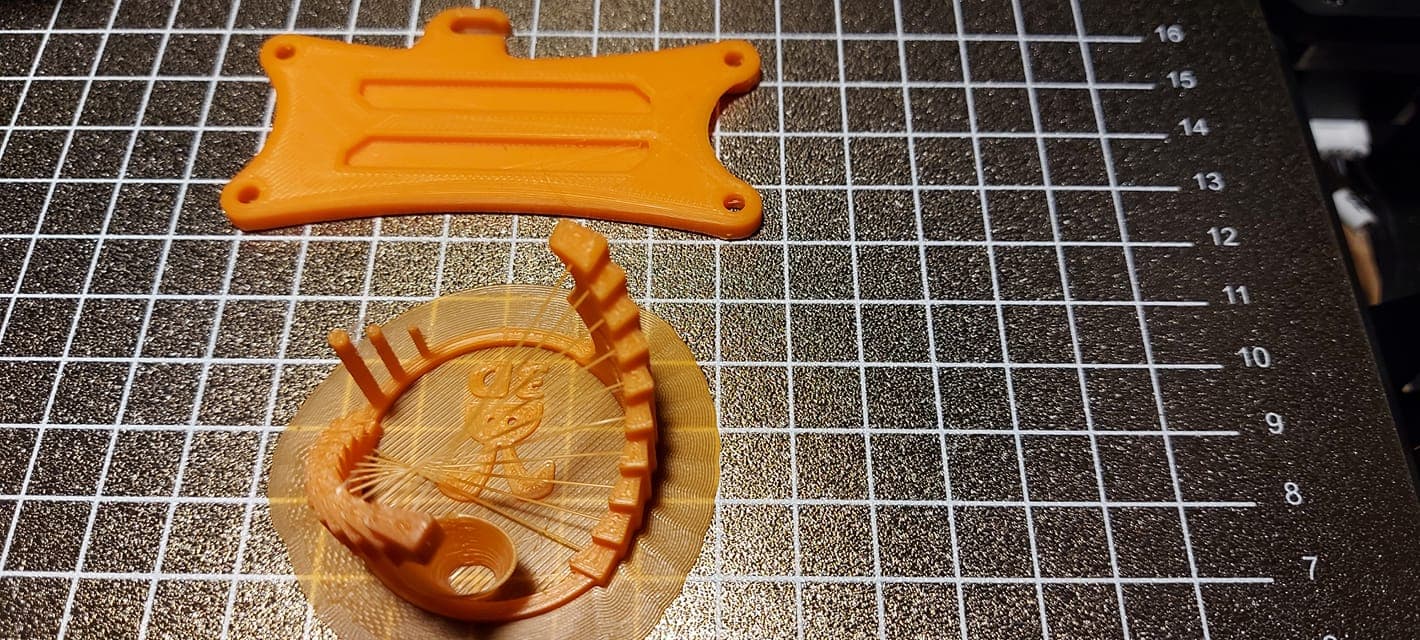

ABS on a sovol sv06. a positive audition

A nice multifaceted printer test :)

Dialing in a .6 nozzle on a CR-10 S5. Not a bad start, but still needs tinkering.

Thank you for sharing!

Community Makes (6)

Discussions

jlconlin2 years ago

luckywavespider1 year ago

I also tried to print, using sermoon-v1 215° + 60° ； Too much stringing, I guess it's temperature is too high. When I used 200° to print, can't working.

PrinterCreality Sermoon-V1

Layer height2 mm

Infill density20 %

SupportsNone

BrimNo

accessskills1 year ago

The Level 3 Diploma in Care is a nationally recognized qualification designed for individuals working in senior care roles, such as care supervisors, senior care assistants, or support workers. The Level 3 Diploma in Care provides in-depth knowledge and practical skills needed to deliver high-quality care in settings like residential homes, hospitals, and community care.

Swiss3dc1 year ago

Printed smoothly with the Starlex DHB hot-end, 0.4 brass 24mm nozzle

PrinterBambu Lab P1S

MaterialPLA

Layer height0.28 mm

Infill density15 %

SupportsNone

rjoker1652 years ago

This printer health check assesses various print intricacies in just over half an hour. It covers overhangs, holes, and even surface details, making it thorough like a colostomy examination.

NikosSprocket4 years ago

Pretty cool! A quick print using ABS at 0.2 and standard settings for Voron part printing using a Voron 2.4 came out pretty good; see blue sample in uploads.

Thanks! and keep on designing awesome pieces!
