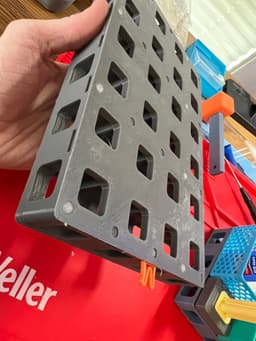

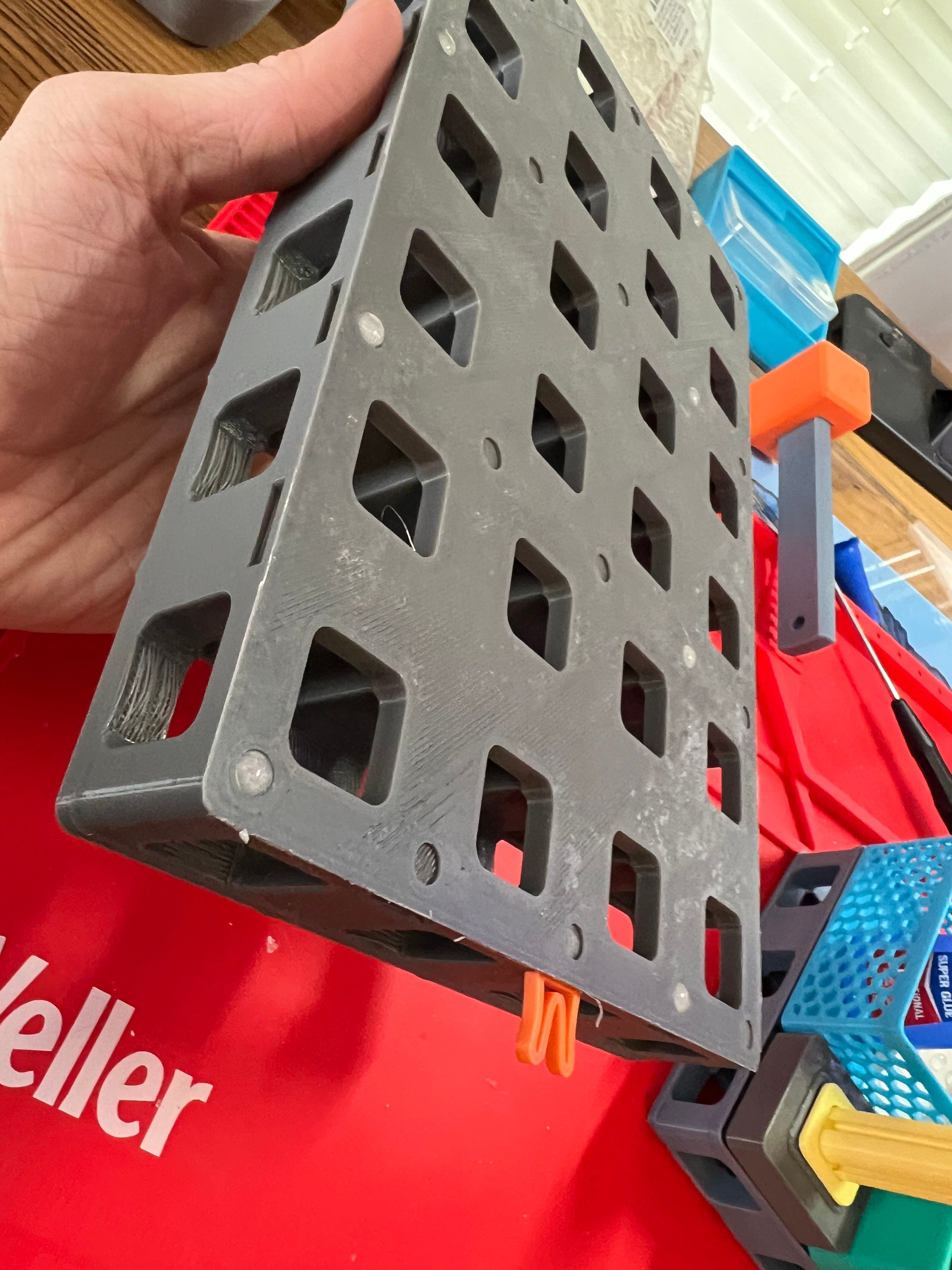

This is a variant of my tunnel block with a flat bottom meant to be used as a baseplate:
- features rabbit clips and sockets to allow multiple basepaltes to be locked together
- features pockets for rubber feet, default setup for 6x2mm feet (0.5mm deep pockets)
These are designed for a desktop grid module that you don't want to accidentally slide around.
Suggested slicer settings:
- split the baseplate itself from the clip sub-object
- the baseplate works well for me using 5% infill (3d honeycomb), 3 top/bottom layers, and no support
- the clip seems best printed with 2 walls, 0 top/bottom layers, and 0% infill; it should be all wall paths
I've also uploaded a 1u-tall version that is just a grid of Z-holes with the same rabbit clip sockets.
Parameterized openscad model for easy customization: https://github.com/jcorbin/gridfinity-risers
Gridfinity Tunnel Baseplate
132 downloads · 3 years ago in  andÂ
This model is restricted by licensing terms.Â
View license.












Quick question - why is the included clip floating above the buildplate?
Also, I'd like to request a standalone STL for the clip itself.
