Multiboard DeWalt battery holder 3 tier.stl 3d model

Multiboard DeWalt battery holder 3 tier.stl

87 downloads · 8 months ago · Remix of DeWalt battery Holder by Jerrari This is a 3 tier DeWalt battery holder for your multiboar

This model is restricted by licensing terms.

View license.

Description

Remix of DeWalt battery Holder by Jerrari

This is a 3 tier DeWalt battery holder for your multiboard, because who only has one DeWalt battery? There are 6 slots on the back to mount it to your multiboard with multipoints. The top 2 bays will hold the 20v 3ah batteries, the bigger XR batteries would only fit the bottom bay.

.4mm nozzle .2mm layer height 15%infill No brim Print with support, easy to paint supports if you wish to save some filament and time as the slots do not need supports.

Tags:

Community Makes (1)

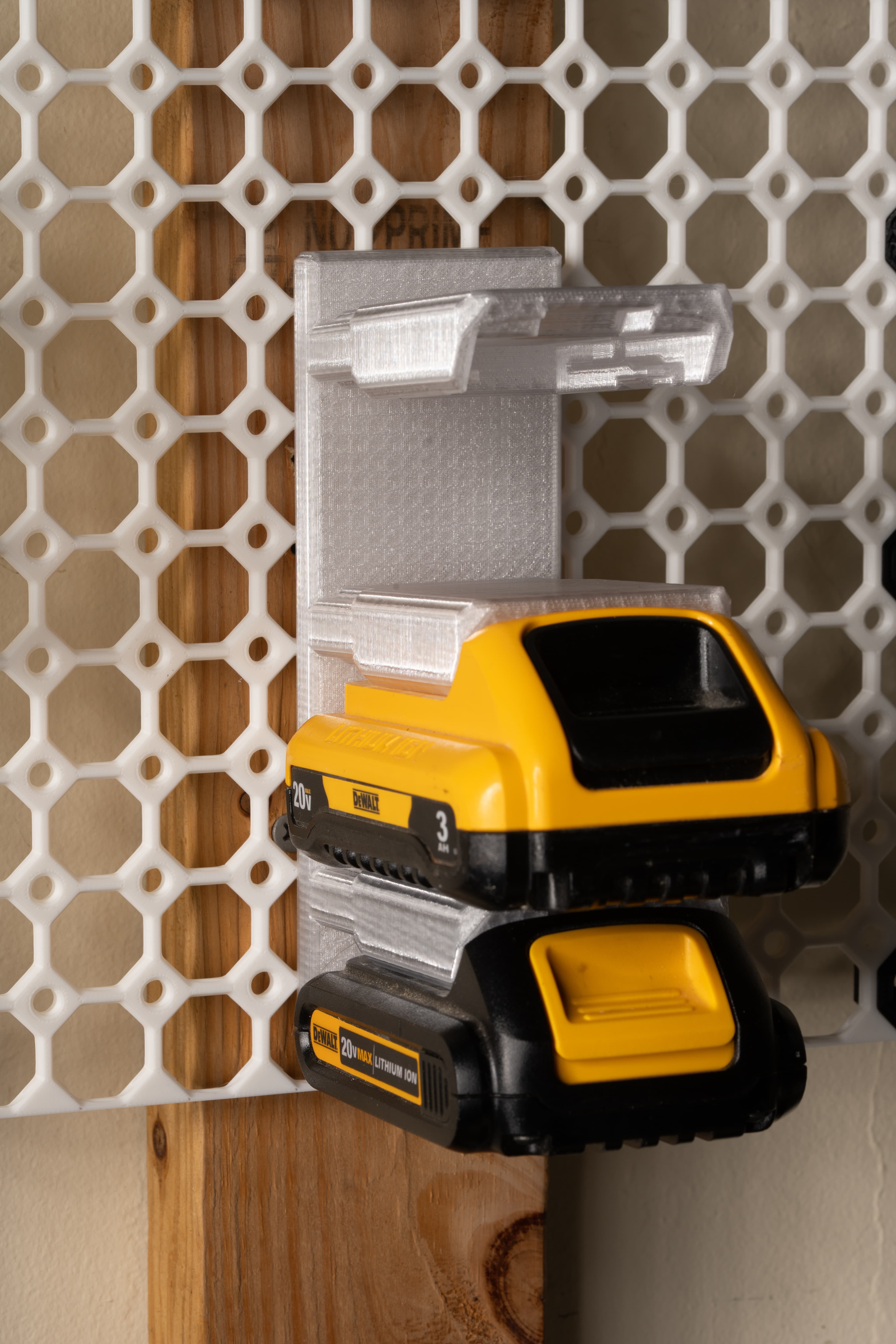

Beautiful print. I was worried about the layer lines adding weak points as I had printed it with the brackets pointing upwards. This came out super strong in Creality PETG Clear

Beautiful design and engineering.

Community Makes (1)

Discussions

c.brough6 months ago

Beautiful print. I was worried about the layer lines adding weak points as I had printed it with the brackets pointing upwards. This came out super strong in Creality PETG Clear Beautiful design and engineering.

PrinterCreality K1C

Print bed sizeX: 220 mm; Y: 220 mm; Z: 220 mm

MaterialPETG

Layer height0.2 mm

Infill density15 %

brownlee1291 month ago

Apologies for my ignorance as I'm new to multiboard accessories, but which connectors do I need to mount this? The ones I've found are all too large to slot in.

bing01 month ago

https://than.gs/m/1123317

bing01 month ago

Any multipoint should work, I use the large thread multipoints for this
