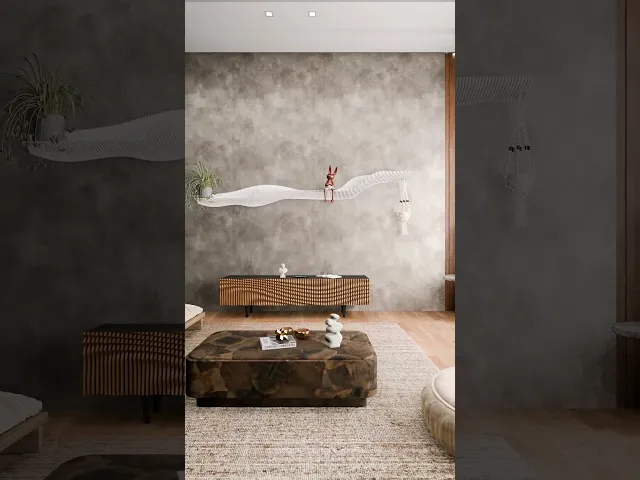

Parametric Shelf Design V4

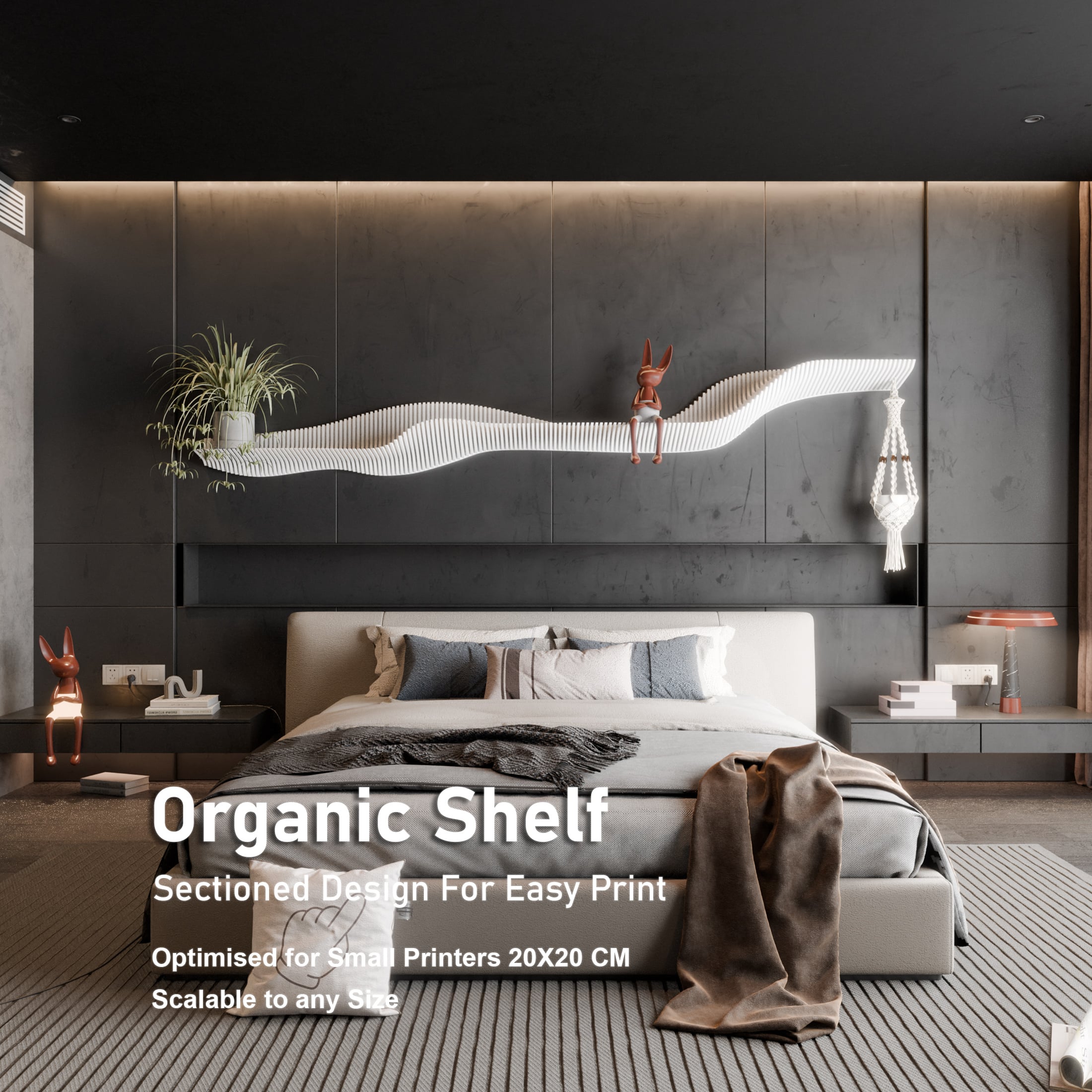

Organic Parametric Shelf Series V3 by Arcforms — This is the third shelf design for 3D printers. Based on the feedback I received; I aimed to make this shelf as simple as possible to 3D print. It is divided into six sections and uses six wall mounts featuring a French cleat mounting system.
After a successful debut in the CNC and laser cutting niche, I decided to expand and modify the files to work with 3D printers. I designed this shelf with a modern, organic aesthetic and a parametric structure, combining elegance and functionality to elevate any space with a unique, sculptural form. Over the years, I've created numerous parametric designs, and I thought it would be great to make these designs available for 3D printing. More similar designs will be available soon. – Jurgien, Arcforms Designer"
**PDF Instructions Included
Description
This shelf is separated into 8 sections, all fitting a 20x20 cm print area. You can scale the model as much as you like. Making it larger or smaller.
This model features French cleats, ensuring a simpler and more convenient assembly process. Assembly requires 16 M5 screws to secure the wall mounts and glue to attach the shelf pieces to the mount. You can scale the files as desired. Feel free to contact us if you have any requests to modify them.
Dimensions
The files are scalable to any size you prefer. Scale the files in Z axis to make the shelf area bigger.
The Current size available with the files is: 160 x 25 x 13.5 cm or 62.99 x 9.84 x 5.31 Inches. You will need 2.5-2.8kg of filament depending on the wall thickness and infill.
Scaling the files to fit a 30x30cm area will result in a product measuring 240 x 37.5 x 20 cm or 94.49 x 14.76 x 7.87 Inches.
