PISTON ENGINE MODEL

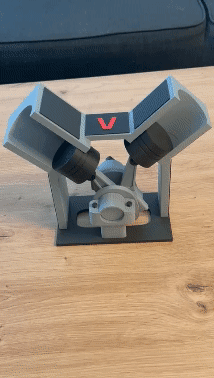

Amazing High quality model of a V8 engine.

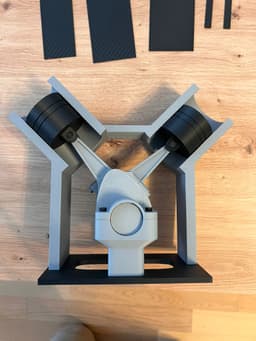

The engine shows only 2 of the 8 pistons in a V8 in order to see from the frontal part how the movement of the pistons are in a real engine.

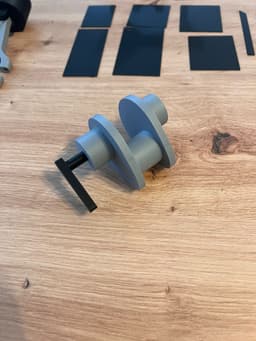

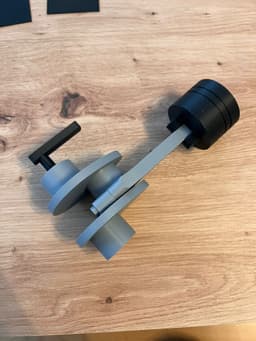

The crankshaft moves with a lever attached to it at the back making the pistons go up and down.

Model has tight fit on all of the parts for a perfect finish, specially between the pistons and the block.

This can be used as a decoration item or to explain how an engine works!

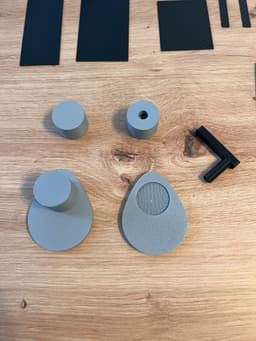

(Model comes with a Wrench to tight all of the nuts) (Use the pictures provided as instructions and contact me if more info is needed via DM without any issue!!)

Any question regarding the model can be sent to my Instagram: https://www.instagram.com/printplay.3d/ :)

3D printing settings MODEL IS SCALABLE. It just depends on how big you want the final product to be. I printed mine at 50% and ended up being amazing.

Layer height: 0.2 mm or less for a higher quality

Supports: Some of the parts need supports because of the arches in STL 3.2 or overhangs in STL 3.1. Check your settings on supports and tweak it if needed.

Adhesion: No need of extra adhesion for any of the STLs.

Infill: 10% is more than enough.
