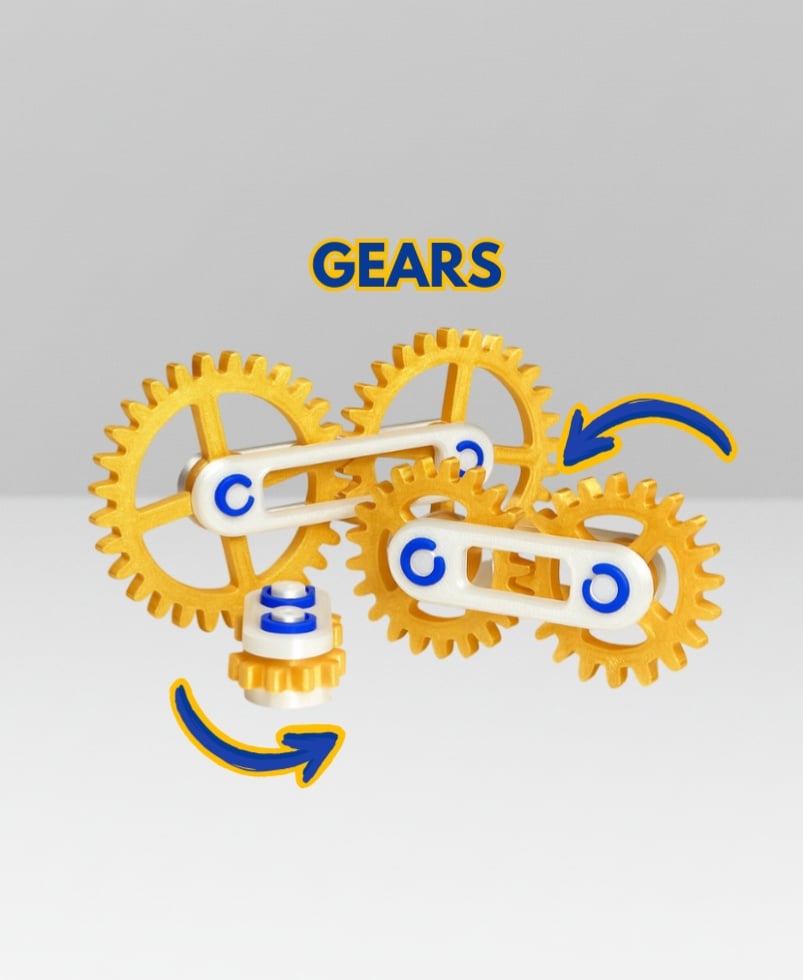

MODULAR GEARS TOY

DESCRIPTION Simple mechanism composed by two gears. In the file you can find several gears with different number of teeth. Thus, you can combine them to obtain different gear ratio.

ADDITIONAL INFORMATION

• Gear files (TOY-002) have in the name the number of teeth. Since the gear pitch is 2mm, the diameter (in mm) is double of the number of teeth.
• TOY-001 and TOY-003 files have in the description the distance (in mm) between the centers of rotation
• A combination is acceptable if the distance between the centre (in mm) is equal to the sum of the number of teeth of the gears.
• Some examples of acceptable combinations:

1. TOY-001_60 / TOY-003_60 / TOY-002_30 / TOY-002_30
2. TOY-001_40 / TOY-003_40 / TOY-002_25 / TOY-002_15
3. TOY-001_30 / TOY-003_30 / TOY-002_10 / TOY-002_20
