Decora Alignment Tool

by
Grazz
Follow
Follow
Remix Model
G
Grazz
|
Image 1 of 2
Decora Alignment Tool 3d model
G
Grazz
|
Image 1 of 2
Decora Alignment Tool 3d model
2D
3D
Makes
Decora Alignment Tool 3d model
Decora Alignment Tool 3d model
This model is restricted by licensing terms.

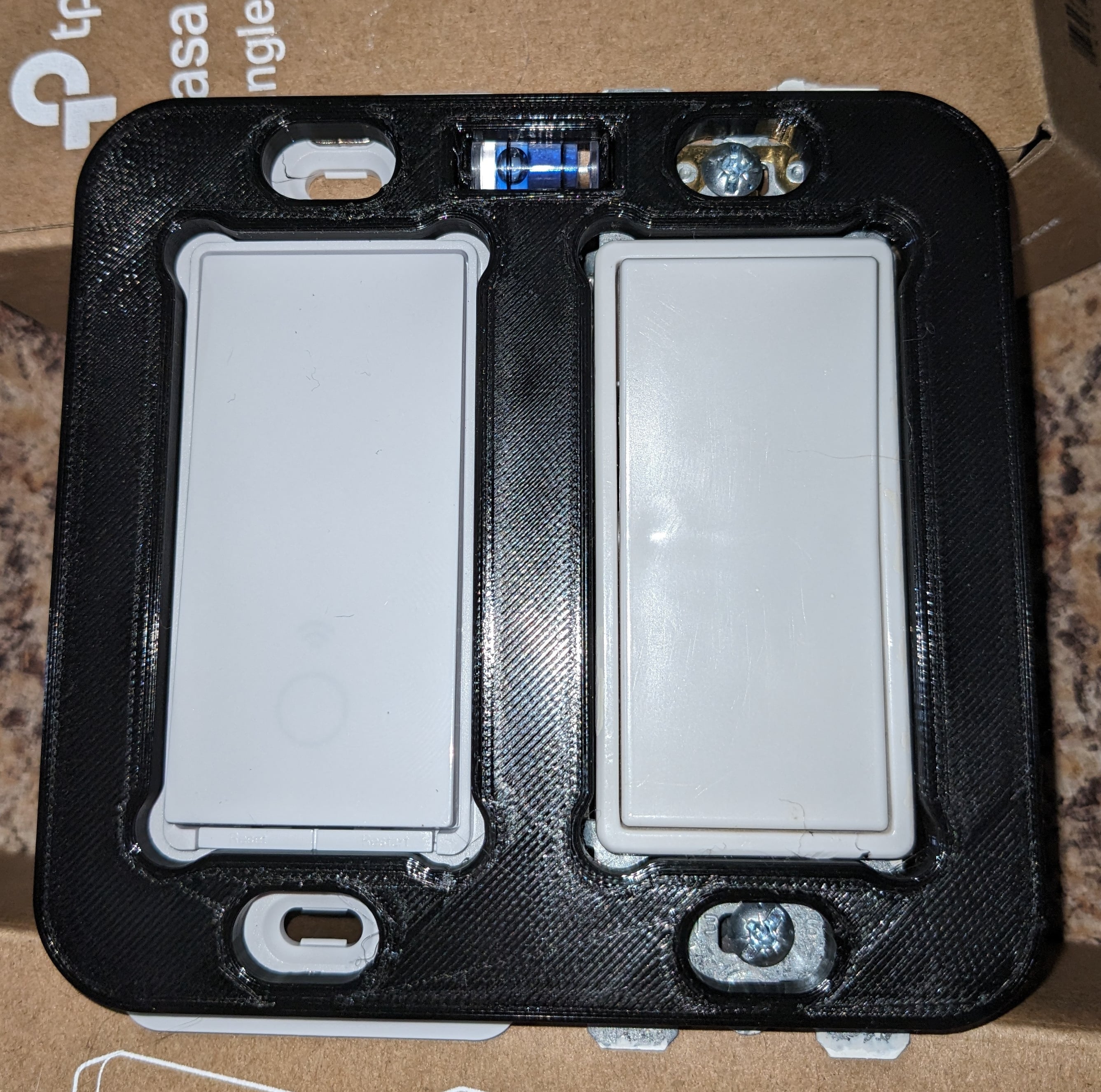

Helps align Decora electrical sockets/switches, this tool was specifically designed to align and level double gang Decora boxes but will also help with single gang.

Features:

  • Sized to space devices for a standard double gang Decora face plate.
  • Large slots to give access to mounting screws to allow tightening of device while holding alignment.
  • Slot for installation of an optional bubble level (14 mm x 6 mm - based on the one that comes with Ubiquity U6+ access points).

Suggested Print Settings:

  • 0.24 mm layer height
  • 3 walls
  • 3 top/bottom layers
  • No supports

Decora style smart switches can be found on amazon here (affiliate link): https://amzn.to/3U7C148


2 Likes9 DownloadsApril 8, 2024
