Desktop Golf - Instead of printing the flag pole, I just used a piece of filament 😉 - 3d model
Desktop Golf 3d model
Desktop Golf 3d model

This is the perfect game for your desk, and makes an excellent gift for golfers/fathers.

This took me a long time to perfect and it is SUPER fun to play. It is a little more complicated to assemble but I promise its worth it!

**Components you'll need to order. ** All of these should be on Amazon Prime

1. The Balls: 1/4" Steel Ball Bearings (Amazon)

2. The Magnets: Small Round Magnets (Amazon)

3. The Tube: 3/8" ID, 1/2" OD PVC Clear Vinyl Tubing (Amazon)

--Assembly Instructions--

Everything goes together in an intuitive way. However, here are some instructions on assembly.

Putting Green

  • Assemble flag onto flag pole, and insert into hole inside the putting green

  • Slide the putting green clamps into the putting green holes. Secure to desk with 2 screws

  • Install Tube into putting green

Tee Box

  • Insert screw into Tee Box, tighten onto desk

  • Place the Hex Piece into the tee box hex hole

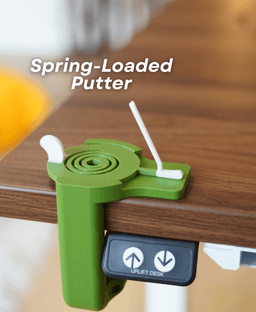

  • Click the Club/Spring onto the hex

  • Insert Release lever into hole underneath the Tee box

  • Cut Tube to length (some sag is fine) and insert into the tube hole. Start with the tube longer than needed and test to see if the ball has the correct speed. Cut tube shorter if more speed is needed

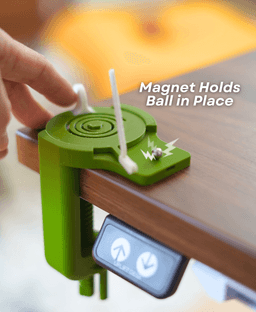

  • Install 1 magnet into slot in top side of tee box (push all the way in)

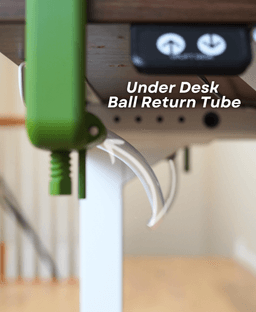

  • Install 1 magnet into tube return on tee box (helps to catch the ball)
