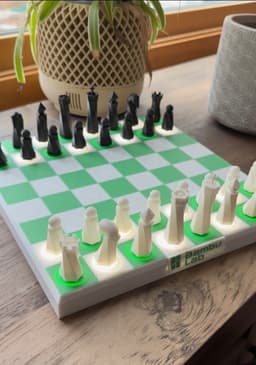

Open Chess - Smart Chess Board

896 downloads · 1 year ago · Print. Click. Play. OpenChess is a fully open source smart chessboard designed to make interactive,

Description

Print. Click. Play. OpenChess is a fully open source smart chessboard designed to make interactive, intelligent gameplay accessible to everyone. By combining low-cost electronics, 3D printing, and customizable software, OpenChess empowers makers, educators, and chess lovers to build their own connected chess experience — without the high price tag.

💡 Why OpenChess?

Most smart chessboards are expensive and closed-source. OpenChess changes that. It’s built from the ground up to be:

Affordable – Uses a custom PCB with embedded magnetic sensors and LEDs for real-time move detection and feedback.

DIY-Friendly – Print your own board, your own pieces, and assemble everything at home.

Programmable – Based on Arduino, you can customize behavior, create new game modes, or build learning tools and challenges.

Modular & Open – Everything is open source. Remix the board, design your own pieces, or upgrade the electronics however you want.

🔧 What You’ll Need:

OpenChess PCB – Detects pieces and lights up squares.

https://concept-bytes.com/products/openchess-pcb?variant=50601021833517

Or make your own! Gerbers are attached below! Just send them to JLCPCB!

Arduino Nano ESP32/RP2040/33IOT – Controls the logic and communication.

https://www.stemsolutionsmart.com/products/arduino-nano-rp2040-connect

3D Printed Board & Pieces – Print everything from scratch or customize it to your style.

Attached below or over at Maker world and Thangs!

https://makerworld.com/en/models/1256302-openchess-smart-chess-board#profileId-1279762

Whether you’re building a smart chessboard for your classroom, designing a game with custom rules, or just want a cool weekend project — OpenChess puts the power in your hands.

🎓 Print it. Click it. Play it. Welcome to the future of chess
