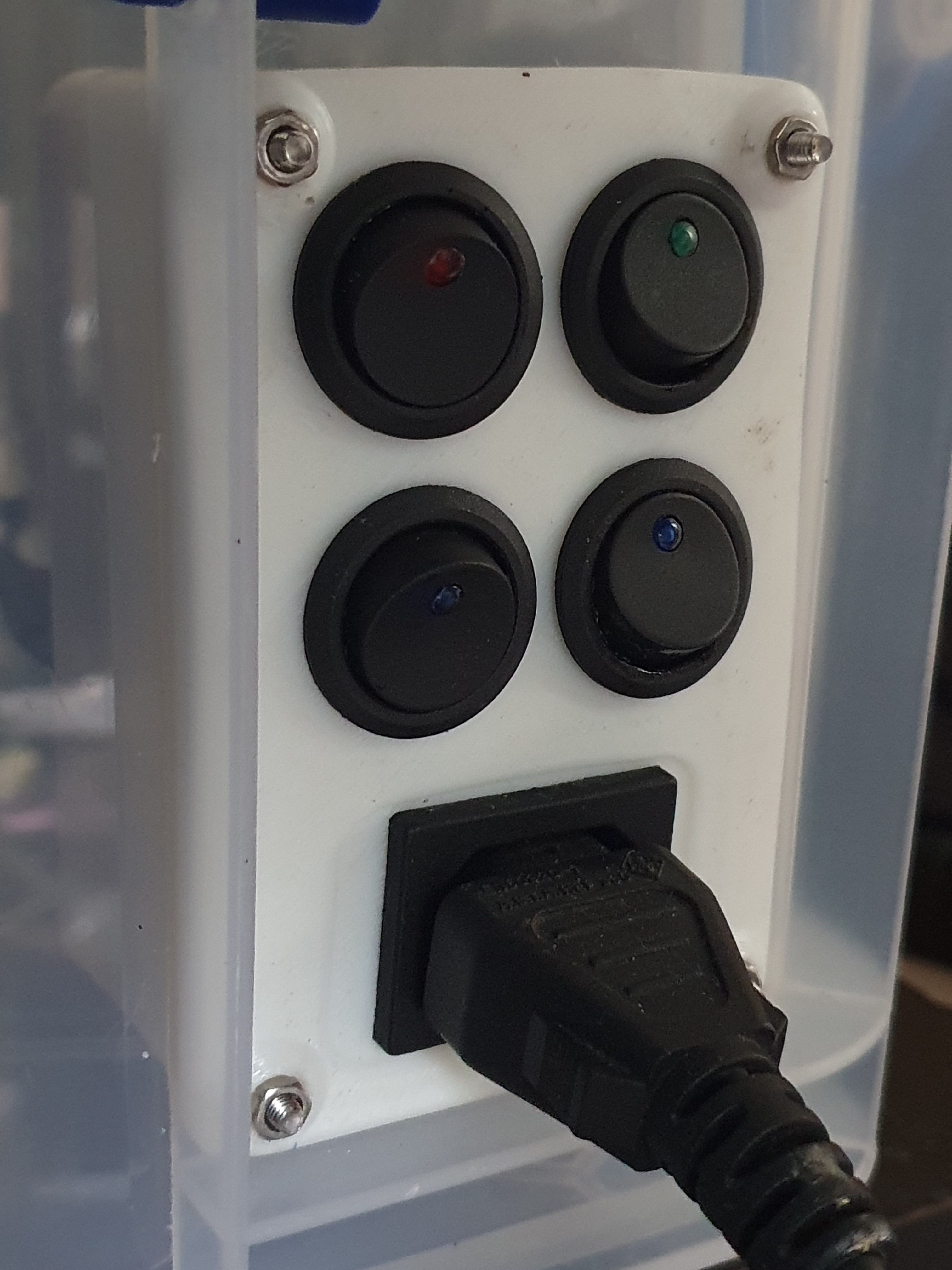

Power Switch Panel 3d model
AlphaZen
AlphaZen
|
Image 1 of 3
Power Switch Panel 3d model
2D
3D
Makes
Power Switch Panel 3d model
Power Switch Panel 3d model
Power Switch Panel 3d model

Dont Use PLA

  • Installed to inside wall of enclosure.

You will need to make a hole in enclosure: Use FRONT model to trace desired location on enclosure, including screw holes and switch and power supply clearance.

  • Reverse the screws, tighten nut from the outside.
  • Then place SEALmodel on top of tightened nuts.
  • Then place that to inside wall, place FRONT model on outside wall over screws.
  • Finally place nuts on outermost, tightening FRONT to enclosure by way of reverse screws first installed.
