This is an even LARGER version of the Giant Rolling Storage Box.
Note: This design requires a print bed of at least 300x300mm.
Printing
If positioned correctly, all parts can be easily printed without supports.
Files to print: 6 x Bin.stl 14 x Hinge_Cap.stl 7 x Hinge_Bar.stl 1 x Lid.stl 1 x Lock_Ring.stl 1 x Start_Bin.stl 1 x End_Bin.stl 1 x Core_Front.stl 1 x Core_Back.stl
If adding dividers, print 2x parts per desired divider.

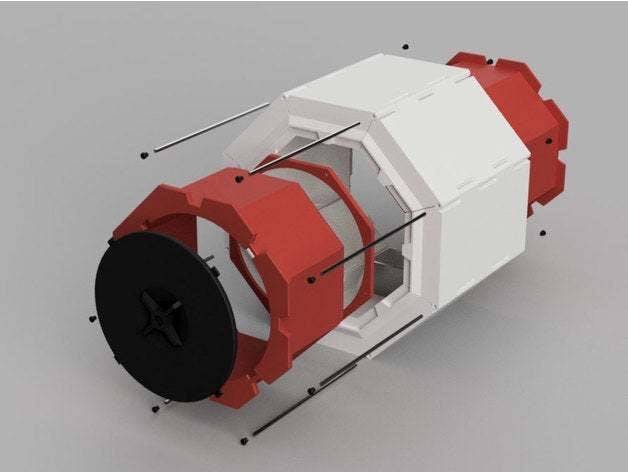

Assembly
- Assemble all 6 regular bins, 1 start bin, and 1 end bin by inserting 7 long hinge bars.
- Use 14 hinge caps to lock the hinge pins in place.
- Add 6 3mm x 6mm cylinder magnets to the start and end bins.
- Slide the lock ring into the front core. Glue or bolt using 4 m3x6mm bolts.
- Make sure the lid locks onto the front core easily. If it's too tight, loosen the lock ring.
- Join the front core and back core. They are a tight fit, so glue should be unnecessary.
- Attach the bins to the core by sliding the core onto the start bin.
- Roll the bins around the core.
- Insert a ribbon of strip of velcro into the horizontal slot in the end bin. Use a flat screwdriver to push the ribbon/velcro in.
- Glue is usually not needed.
