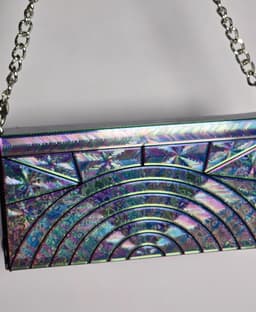

Large Arc Clutch 3d model
kaizen3dprints
kaizen3dprints
|
|
Image 1 of 11
Large Arc Clutch 3d model
Large Arc Clutch video thumbnail
Large Arc Clutch 3d model
Large Arc Clutch 3d model
Large Arc Clutch 3d model
Large Arc Clutch 3d model
Large Arc Clutch 3d model
Large Arc Clutch 3d model
Large Arc Clutch 3d model
Large Arc Clutch 3d model
Large Arc Clutch 3d model
Large Arc Clutch - This was done with a variety of infill patterns, after the stl had been split to objects. - 3d model
Large Arc Clutch 3d model

Large Arc Clutch

Subscribe for access starting at $12 USD
Get access to this model and 104+ more
This model is restricted by licensing terms.

There are three versions- Edit - There are now two additional variations, one that has a thicker base and one with a thicker base and small frame around the design.

I have edited the top magnetic bars to have splits in them, so the clutch is able to be opened much wider than the previous version.

Version 1 if you'd prefer to use snap fasteners (size 15) instead of E6000

Version 2 with the jump ring holes that are closer to the top of the sides

Version 3 with holes that are designed to fit the Chicago style screw fastener listed below (https://a.co/d/eJTBKzu) This is my preferred method.

There is also a template you can print out for cutting your fabric that has two hole options depending on the print that you choose, both in STL and PDF format (A3 and A4 size)

This is printed at .24mm layer height. There is a pause command inserted at layer 2 to add the fabric (two variations now have the pause at layer 3), and another pause at layer 14 (or layer 15 depending on the model chosen) to add 10 magnets that are 10mm x 2mm, all facing the same orientation.

There are holes at the top of the clutch for either jump rings or Chicago style rings to attach your strap of choice. More details can be found in the attached printing guide.

This is intended to be printed face down on a build sheet that offers some effect, but the textured effect can be just as cool. I like using tri color silk PLA with these, with the bottom layer as octogram spiral - Change the bottom layer pattern to get a different effect! My favorites are octagram spiral and archimidean chords

Community Makes (6)
Make by user
Make by user
My girlfriend loves this!! I had to print it at 92% scale because of my print bed but it was really easy to print and put together. The stencil for cutting the inner lining was super handy too so thanks!
This was my first shot at completing a print with tulle!
I would say this one came out well, especially for my first one.
The fabric on the inside is simple fabric from Walmart, I ordered the    D-rings on the sides from Amazon, and the Tulle came from a local fabric store, HOWEVER I did order and receive the Tulle combo pack from Kaizen3D and its much easier to deal with.

WELL worth the $12 for the combo pack!
This was a very easy print to work with and the designer was immediate in their reply and assistance. I’m looking forward to printing more from them!
Printed my clutch in Black and Gold and used Gold Sparkle inside material. Had some issues with layer 3 but I think that was my own fault for having temps too high and speed too fast. All in all the end looking print looks great. I used clear tpu as the strap until I get a chain. I just melted the ends with a lighter and pressed flat. Thanks for opening up a new realm of printing to me. The ladies at the fabric store are going to  have their minds blown today!!

Printed on the new Anycubic Kobra 3 ACE combo. ( there's no option to select it)
Make by user
Make by user
My girlfriend loves this!! I had to print it at 92% scale because of my print bed but it was really easy to print and put together. The stencil for cutting the inner lining was super handy too so thanks!
This was my first shot at completing a print with tulle!
I would say this one came out well, especially for my first one.
The fabric on the inside is simple fabric from Walmart, I ordered the    D-rings on the sides from Amazon, and the Tulle came from a local fabric store, HOWEVER I did order and receive the Tulle combo pack from Kaizen3D and its much easier to deal with.

WELL worth the $12 for the combo pack!
This was a very easy print to work with and the designer was immediate in their reply and assistance. I’m looking forward to printing more from them!
Printed my clutch in Black and Gold and used Gold Sparkle inside material. Had some issues with layer 3 but I think that was my own fault for having temps too high and speed too fast. All in all the end looking print looks great. I used clear tpu as the strap until I get a chain. I just melted the ends with a lighter and pressed flat. Thanks for opening up a new realm of printing to me. The ladies at the fabric store are going to  have their minds blown today!!

Printed on the new Anycubic Kobra 3 ACE combo. ( there's no option to select it)


Community Makes (6)
Make by user
Make by user
My girlfriend loves this!! I had to print it at 92% scale because of my print bed but it was really easy to print and put together. The stencil for cutting the inner lining was super handy too so thanks!
This was my first shot at completing a print with tulle!
I would say this one came out well, especially for my first one.
The fabric on the inside is simple fabric from Walmart, I ordered the    D-rings on the sides from Amazon, and the Tulle came from a local fabric store, HOWEVER I did order and receive the Tulle combo pack from Kaizen3D and its much easier to deal with.

WELL worth the $12 for the combo pack!
This was a very easy print to work with and the designer was immediate in their reply and assistance. I’m looking forward to printing more from them!
Printed my clutch in Black and Gold and used Gold Sparkle inside material. Had some issues with layer 3 but I think that was my own fault for having temps too high and speed too fast. All in all the end looking print looks great. I used clear tpu as the strap until I get a chain. I just melted the ends with a lighter and pressed flat. Thanks for opening up a new realm of printing to me. The ladies at the fabric store are going to  have their minds blown today!!

Printed on the new Anycubic Kobra 3 ACE combo. ( there's no option to select it)
Make by user
Make by user
My girlfriend loves this!! I had to print it at 92% scale because of my print bed but it was really easy to print and put together. The stencil for cutting the inner lining was super handy too so thanks!
This was my first shot at completing a print with tulle!
I would say this one came out well, especially for my first one.
The fabric on the inside is simple fabric from Walmart, I ordered the    D-rings on the sides from Amazon, and the Tulle came from a local fabric store, HOWEVER I did order and receive the Tulle combo pack from Kaizen3D and its much easier to deal with.

WELL worth the $12 for the combo pack!
This was a very easy print to work with and the designer was immediate in their reply and assistance. I’m looking forward to printing more from them!
Printed my clutch in Black and Gold and used Gold Sparkle inside material. Had some issues with layer 3 but I think that was my own fault for having temps too high and speed too fast. All in all the end looking print looks great. I used clear tpu as the strap until I get a chain. I just melted the ends with a lighter and pressed flat. Thanks for opening up a new realm of printing to me. The ladies at the fabric store are going to  have their minds blown today!!

Printed on the new Anycubic Kobra 3 ACE combo. ( there's no option to select it)

Discussions
Drexel M
drexmont89
This was my first shot at completing a print with tulle! I would say this one came out well, especially for my first one. The fabric on the inside is simple fabric from Walmart, I ordered the D-rings on the sides from Amazon, and the Tulle came from a local fabric store, HOWEVER I did order and receive the Tulle combo pack from Kaizen3D and its much easier to deal with. WELL worth the $12 for the combo pack!
This was my first shot at completing a print with tulle!
I would say this one came out well, especially for my first one.
The fabric on the inside is simple fabric from Walmart, I ordered the    D-rings on the sides from Amazon, and the Tulle came from a local fabric store, HOWEVER I did order and receive the Tulle combo pack from Kaizen3D and its much easier to deal with.

WELL worth the $12 for the combo pack!  3d model
 3d model
 3d model
 3d model
 3d model
PrinterBambu Lab P1S
Print bed sizeX: 257 mm; Y: 257 mm; Z: 257 mm
MaterialPLA
SupportsNone
BrimNo
Foxicus
Foxicus
This was a very easy print to work with and the designer was immediate in their reply and assistance. I’m looking forward to printing more from them!
This was a very easy print to work with and the designer was immediate in their reply and assistance. I’m looking forward to printing more from them! 3d model
PrinterBambu Lab X1
MaterialPLA
Layer height0.24 mm
Infill density5 %
SupportsNone
Eric B
PLURprints
My girlfriend loves this!! I had to print it at 92% scale because of my print bed but it was really easy to print and put together. The stencil for cutting the inner lining was super handy too so thanks!
My girlfriend loves this!! I had to print it at 92% scale because of my print bed but it was really easy to print and put together. The stencil for cutting the inner lining was super handy too so thanks!  3d model
 3d model
PrinterElegoo Neptune 3 Pro
Print bed sizeX: 235 mm; Y: 235 mm; Z: 280 mm
MaterialPLA
Layer height0.24 mm
Infill density8 %
Sara
Wasabean

what size magnets did you use for this scale?

That Cannabis G
Ian Power
Printed my clutch in Black and Gold and used Gold Sparkle inside material. Had some issues with layer 3 but I think that was my own fault for having temps too high and speed too fast. All in all the end looking print looks great. I used clear tpu as the strap until I get a chain. I just melted the ends with a lighter and pressed flat. Thanks for opening up a new realm of printing to me. The ladies at the fabric store are going to have their minds blown today!! Printed on the new Anycubic Kobra 3 ACE combo. ( there's no option to select it)
Printed my clutch in Black and Gold and used Gold Sparkle inside material. Had some issues with layer 3 but I think that was my own fault for having temps too high and speed too fast. All in all the end looking print looks great. I used clear tpu as the strap until I get a chain. I just melted the ends with a lighter and pressed flat. Thanks for opening up a new realm of printing to me. The ladies at the fabric store are going to  have their minds blown today!!

Printed on the new Anycubic Kobra 3 ACE combo. ( there's no option to select it) 3d model
 3d model
 3d model
PrinterAnycubic Kobra
Print bed sizeX: 250 mm; Y: 250 mm; Z: 260 mm
MaterialPLA
Layer height0.2 mm
Infill density10 %
Daniel B
kaizen3dprints

Nice! Loving that color combo

Diane A
dithedoll
 3d model
 3d model
PrinterBambu Lab A1
MaterialPLA
Monica S
monicasovik
 3d model
PrinterBambu Lab P1P
MaterialPLA
Foxicus
Foxicus

I may just be really dumb but I bought the magnets and the Chicago style rings, but I can't seem to figure out how or where to stop the print and add in the circle magnets and the mesh... Do you have a longer YouTube video explaining it, by chance Thank you so much ><

Daniel B
kaizen3dprints

We are all new at some point! The pause commands are added at layer 2 and 14, they should be in there already if you download the 3MF file. You should be printing these at .24mm layer height with a .4mm nozzle. Send me an email at kaizen3dprints@gmail.com and we'll get you all squared away!

Melissa G
melissaevelynf

Hi, wich filament did you use? I want mine to look like the one on the picture =)

Diane A
dithedoll

how do I message you? I have some questions about your membership. For example I need an idea of what kind of prints it would include.
I did this print. Bambu A1
