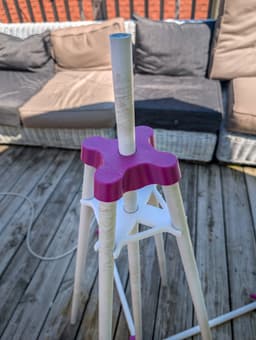

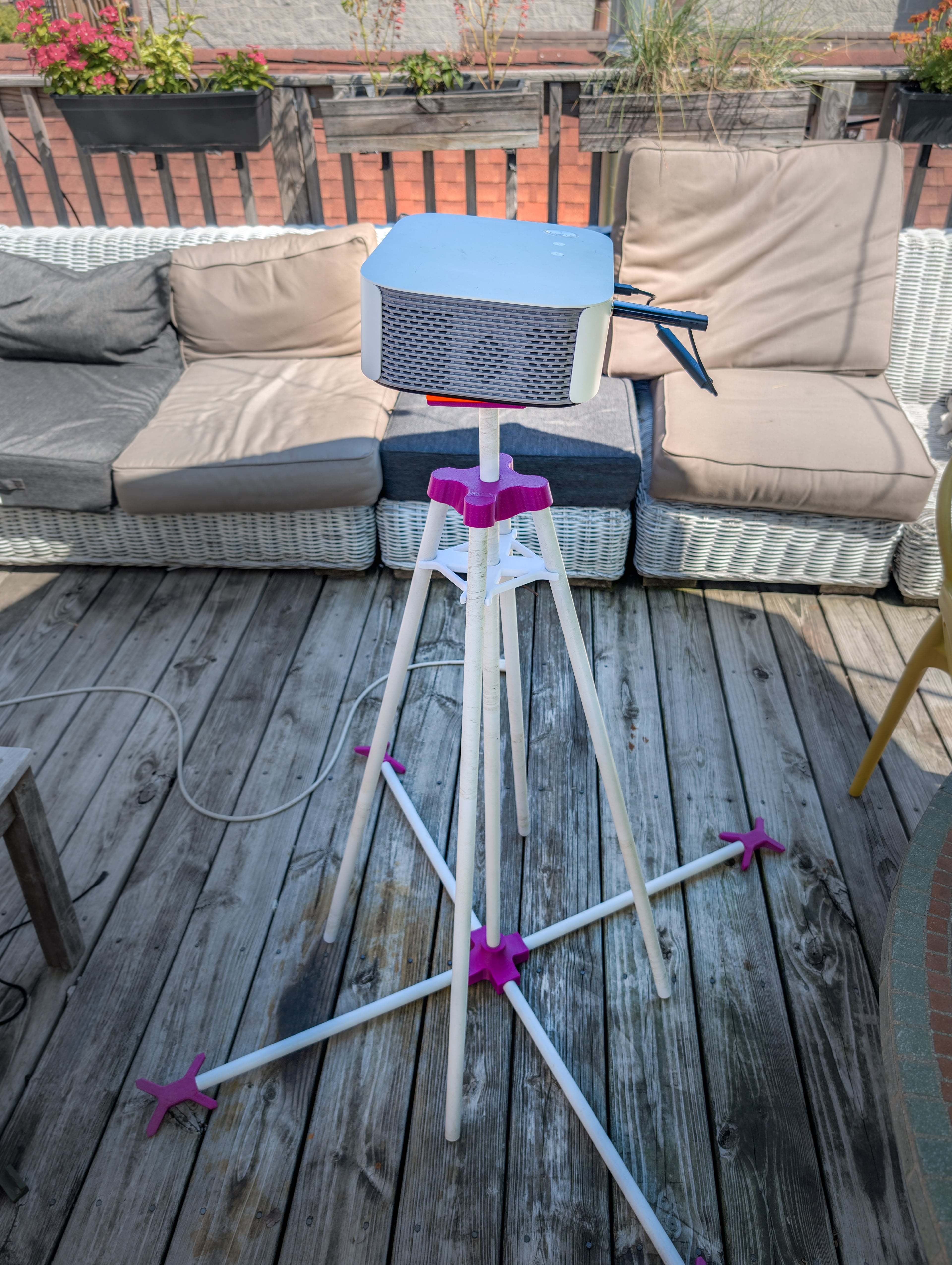

This is my second version of a projector mount utilizing 21.5mm PVC pipe meant for outdoor use. This version is stronger, more stable, and more versatile in terms of the ground you place it on.

I've only tested with the VANKYO Performance V700W projector, as that is what we have, but mounting holes should be similar. Let me know if there are other mounting hole options that I can add!

Improvements

• The PVC pipes from the top brace now project out at a 15-degree angle to better stabilize the projector
• There is a new brace plate that the 4 angled PVC pipes click into

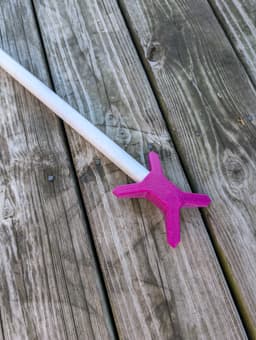

• New feet that match the height of the base and can be rotated to compensate for uneven ground

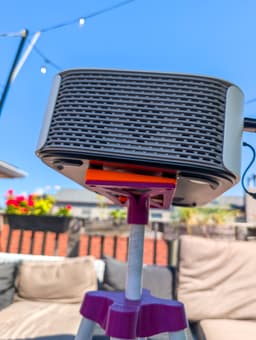

• Projector mount shims are now individual blocks, reducing filament usage

You'll need long M4 screws (or whatever screw your projector uses) to secure the projector to the projector stand between the shims, depending on how many of them you end up using.

Materials Required

• 21.5mm diameter PVC pipe
• M4x25-50 screws or equivalent for your projector

What to Print

• Everything you need to print is included in the “projector mount” 3MF

Printing Material

• Outdoor use: ABS/ASA
• Indoor use: PLA+

Strength

• 25-45% infill
• 5 walls
• 5 top/bottoms

Happy printing!
