Modular Vase - CONCEPT 1

This model is restricted by licensing terms.

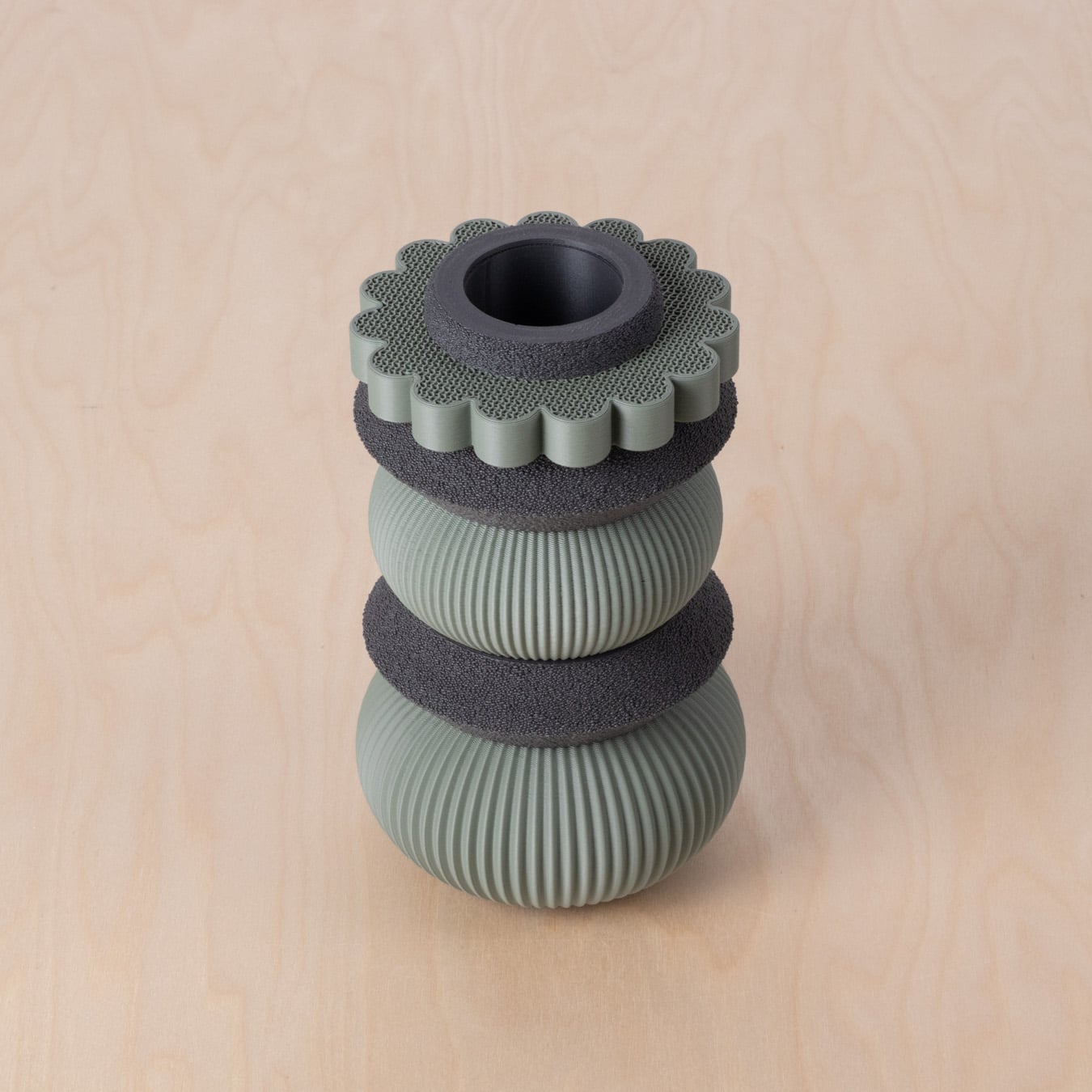

The modular vase Concept 1 is a vase you assemble yourself. The system consists of an inner core, interchangeable sections and a twist-lock cap. The sections slide around the core and can be swapped whenever you like. The cap twists onto the core and locks everything firmly in place, with nothing shifting.

The modules come in four heights: 0.5, 1, 1.5 and 2. You combine them freely, as long as the total adds up to 6. Swap the order, mix textures and colours, and build a vase that suits your interior. The rounded modules have a fine ribbed pattern. The sharper modules are designed for fuzzy skin, but can also be printed smooth. I'm developing more modules that will follow later, so you can vary endlessly. The inner core is suitable for dried flowers. Want to use fresh flowers? Print the core with extra walls for a watertight interior. The entire system is 3D printable, with no external parts needed.

Specs Size: 11 x 20 cm (assembled) Resizable: yes, in your slicer 3D Model Type: shelled body, designed for multi-wall printing Recommended materials: PLA, PETG Print difficulty: easy

Recommended print settings, inner core and cap Nozzle diameter: 0.4mm / 0.6mm Layer height: 0.25mm - 0.3mm Layer width: default Walls: 2 Bottom and top layers: 4 Infill: 5% Outer wall speed: 25 - 45 mm/s

Recommended print settings, modules Nozzle diameter: 0.4mm / 0.6mm Layer height: 0.25mm - 0.4mm Layer width: default Walls: 2 Bottom and top layers: 4 Infill: 5% Outer wall speed: 25 - 45 mm/s

Fuzzy skin settings (for fuzzy skin modules) Fuzzy skin: enabled Point distance: 0.25 mm Thickness: 0.8 mm
