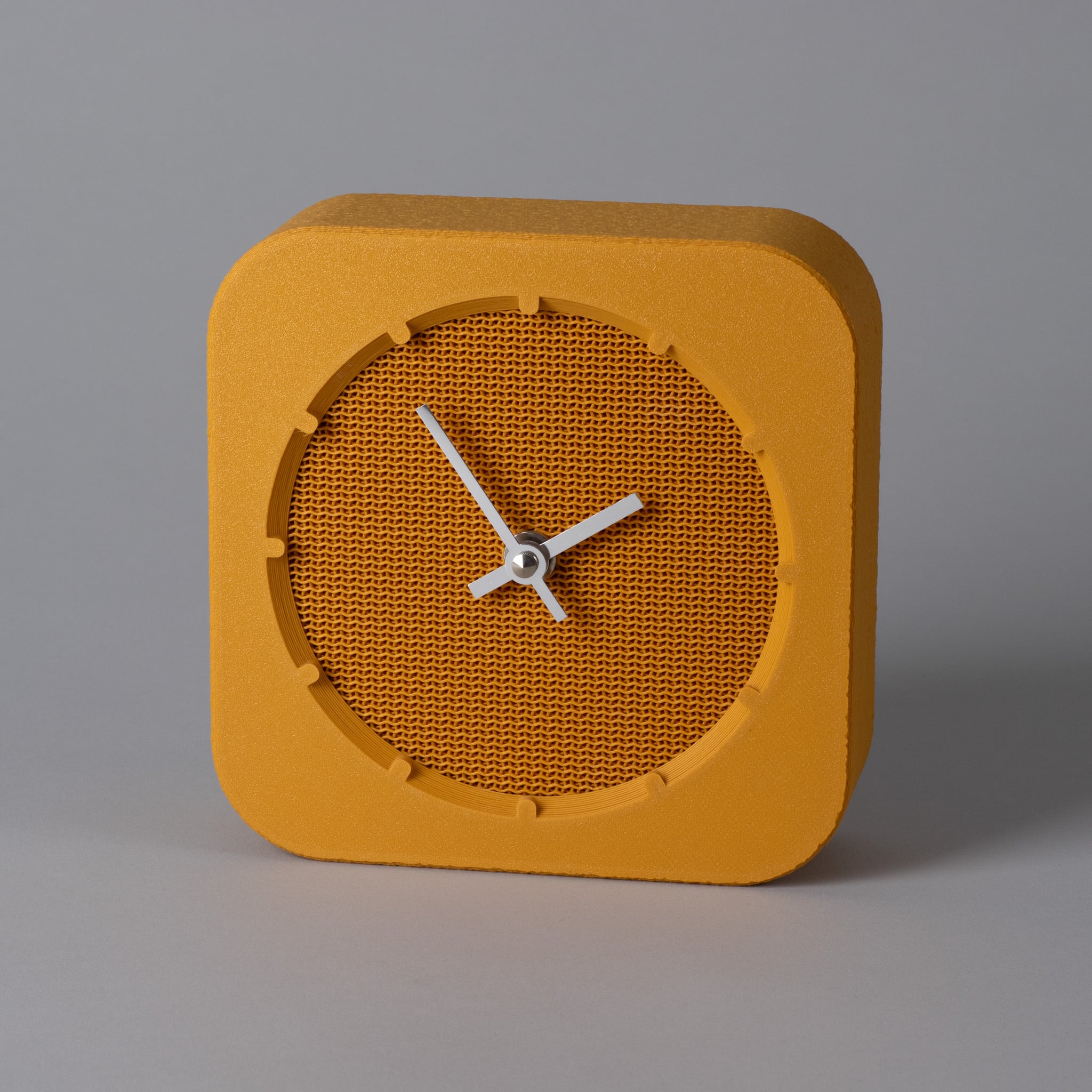

With CUBIC I designed a table clock that feels sleek and modern, with a stylish appearance. The square form is rounded at all corners, giving the clock a refined look. The gyroid clock face brings a graphic detail that makes the clock stand out, while fuzzy skin on the outside adds a soft texture. The back plate clicks onto the housing with a twist lock mechanism, so you can place the quartz movement neatly without visible fastening.

Specs Size: 15.8 x 15.8 x 5.2 cm Resizable: no (due to hardware fit) 3D Model Type: shelled body Recommended materials: PLA, PETG Print difficulty: easy

Required hardware

• Quartz movement (16 mm shaft)
• Hour hand: 47 mm (aluminium)
• Minute hand: 62 mm (aluminium)
• Glue (for attaching the clock face)

Happy printing!

Recommended nozzle diameter and print settings Housing Nozzle diameter: 0.4 mm or 0.6 mm Layer height: 0.25 mm - 0.35 mm Walls: 2 Bottom and top layers: 4 Infill: 5-10% Outer wall speed: 25 - 45 mm/s Fuzzy skin: enabled on outer walls. Point distance 0.3 mm, thickness 0.4 - 0.6 mm. Print orientation: front side (with the hour marks) on the build plate. Make sure your bed is clean for the best surface finish.

Clock face Nozzle diameter: 0.4 mm or 0.6 mm Layer height: 0.25 mm - 0.35 mm Walls: 2 Bottom layers: 3-4 Top layers: 0 Infill: 40 - 45% gyroid (direction of your choice) Outer wall speed: 25 - 45 mm/s Print orientation: gyroid side facing up.

Back plate Nozzle diameter: 0.4 mm or 0.6 mm Layer height: 0.25 mm - 0.4 mm Walls: 2 Bottom layers: 0 Top layers: 4 Infill: 40 - 45% gyroid (direction of your choice) Outer wall speed: 25 - 45 mm/s Print orientation: gyroid side (bottom) on the build plate.
