Collapsing Sith Lightsaber

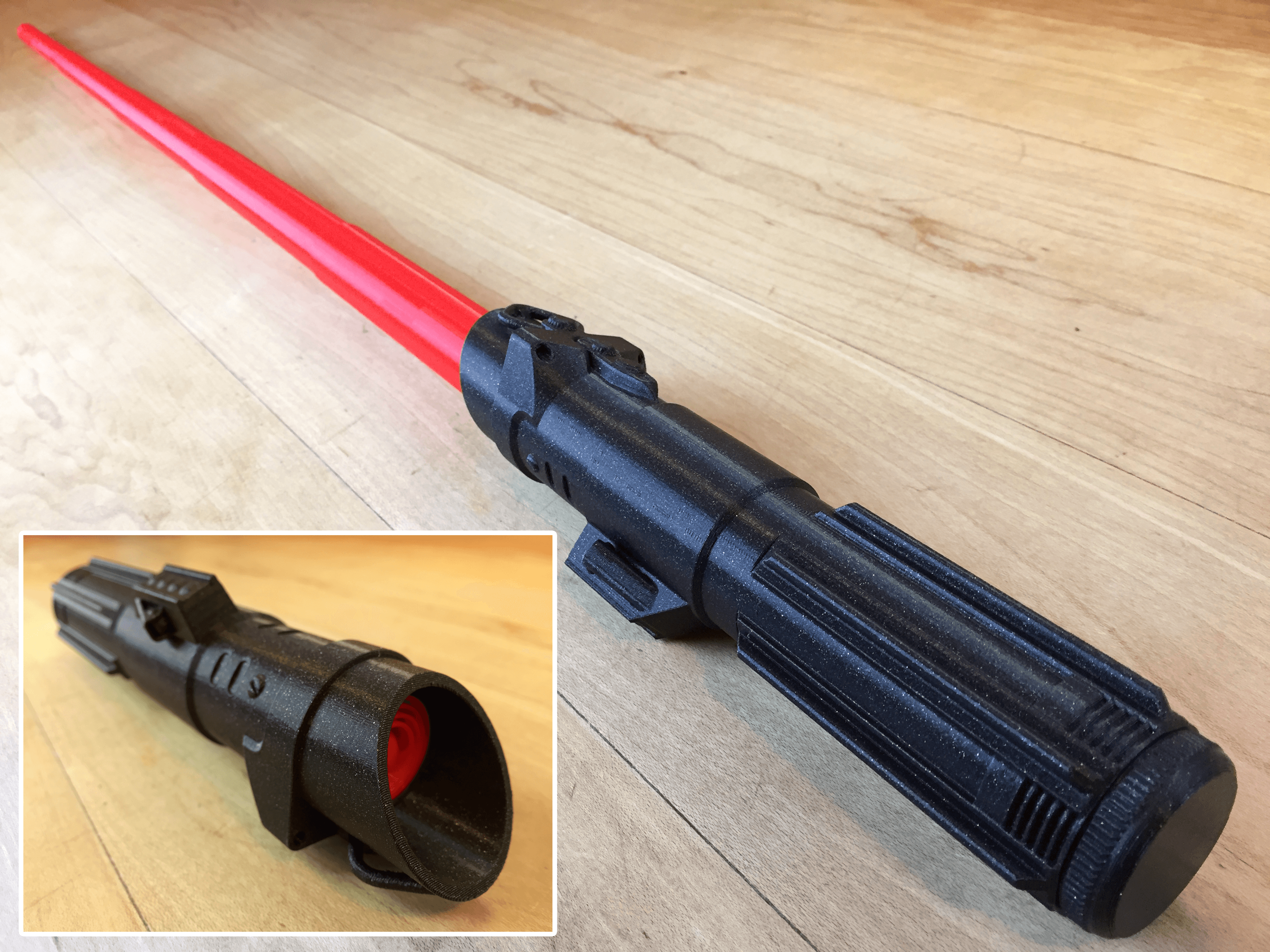

This Lightsaber has a removable collapsing blade that can be printed separately in a different color. The hilt is designed with a screw on cap which allows the blade to be inserted after its printed. The hilt is 209mm long with the cap installed but it expands to over 950mm in total length with the collapsing blade installed!
Its designed to be printed with a ,4mm nozzle, with a line thickness of .43, so the blade will be two shells thick. The test print can be found here.
Links to the filament I used(aff): Galaxy Black Lipstick Red
Video Intro Troubleshooting
Collapsing Lightsabers ROTJ Single Extrusion ROTJ Dual Extrusion Vader’s Dual Extrusion Leia’s Dual and Single
Support and Licensing If you would like to help support more free models please consider joining my Thangs Membership To get permission to sell physical copies of my models, consider joining my Patreon
Collapsing Sith Lightsaber
BICSaber – Write with the Power of the Force!
Darksaber from Star Wars
Star Wars - Cal Kestis Lightsaber
Ketsu Onyo's Blaster - Rebels
Ben Solo's Lightsaber from Star Wars
BrickSaber: LEGO-Inspired Functional Lightsaber
“I AM YOUR FATHER” – Chibi, Vader, Care Bear, Flexi Sith Edition
Assembly Lightsaber - Jedi Survivor
Print-In-Place Miniature Easel :: Art & Hobby Display Stand
Destroyed Apartment Buildings
Dark Lord Duck – Galactic Villain Collectible
Rengoku Lightsaber
Destroyed Apartment Buildings - 8, 12 and 16 Storey
Patience Lightsaber - Jedi Survivor
Marvel Rivals Gambit Collapsing Staff
Jod Na Nawood's Blaster - Skeleton Crew
I am your father - Print in Place, Articulated, Star, Wars, Bear, Care
Comically Small Collapsing Saber! - Free for a limited time!
Tomioka Lightsaber
how long does it take
How many walls should the vase version of the blades have? I have it set as 2, but not sure this is correct. I haven't printed it yet.
Vase mode will print with a single line so you need to change the line width. There is more info on this on my troubleshooting page.
https://www.dddprintingworld.com/blogs/general-instructions-for-printing-collapsible-lightsabers-and-swords/instructions-for-printing-collapsible-lightsabers-and-swords
does the hilt need supports cause when i sliced it it shows supports? also should i use horizontal expansion (-0.5mm)?
Supports are not needed. Typically the issue is the seam catching, not sure if a negative horizontal expansion will help.
Why are all the files for vase made solid???
So then can be printed in vase mode???
the blades still fall through each even after watching the trouble shooting video. is there any other setting i need to change?
If you are printing in vase mode, you need to change your line width.
can I print this on a resin printer?
I dont know to be honest.
When I print the blades in vase mode they fall through each other, my extrusion multiplier is already at 0.98, should I still increase this? Would you have a suggestion by how much? I did watch the trouble shooting video.
Strange that they are still fallign thru, I would make sure you are changing the correct setting. I know you have to change it a couple places Orca, Prusa, and Bambu slicers.
