z stepper motor bracket

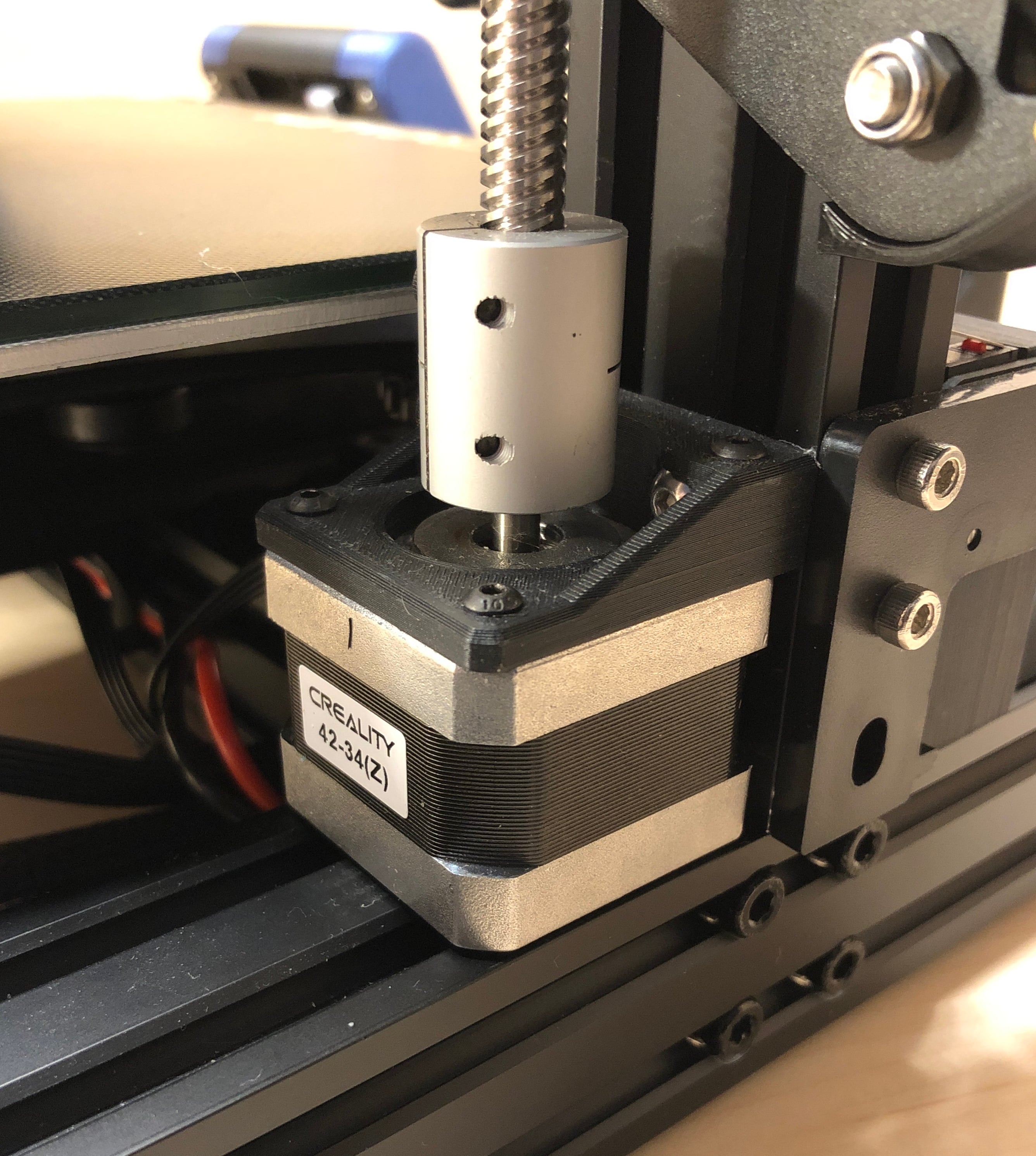

I noticed the dinky bracket that came with the Crealty Ender 3 Pro for the z axis motor didn't properly align the screw with the frame. This bracket has slotted holes to allow front to rear and side to side movement of the stepper motor. Once the screw is aligned just tighten down the screws. This will help to reduce binding and reduce wear on the brass z nut.
