Raspberry Pi Mounting Rack with Support for Power Supply and Network Switch

by
swbrandel
Follow
Follow
Remix Model
S
swbrandel
|
Image 1 of 4
Raspberry Pi Mounting Rack with Support for Power Supply and Network Switch 3d model
S
swbrandel
|
Image 1 of 4
Raspberry Pi Mounting Rack with Support for Power Supply and Network Switch 3d model
2D
3D
Makes
Raspberry Pi Mounting Rack with Support for Power Supply and Network Switch 3d model
Raspberry Pi Mounting Rack with Support for Power Supply and Network Switch 3d model
Raspberry Pi Mounting Rack with Support for Power Supply and Network Switch 3d model
Raspberry Pi Mounting Rack with Support for Power Supply and Network Switch 3d model

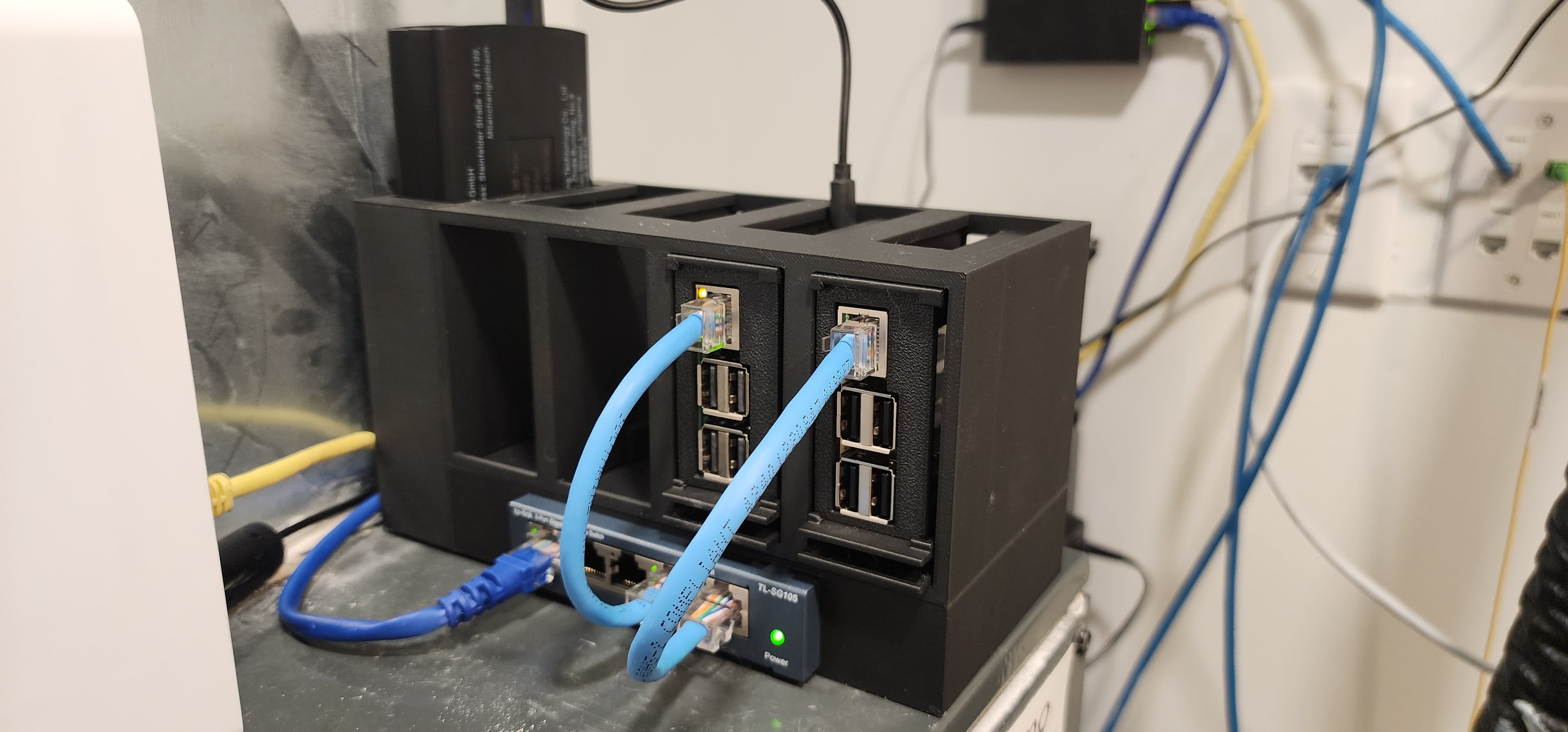

This is 4x Raspberry Pi Holder with the ability to swap and power from within the case. I have looked and tested around and the model works with all standard raspberry pi's. YAY. I have been successful in mounting a raspberry pi 3b and a libre compute board (le potato), as they all use the same mounting and size dimensions. I have also included links for used hardware at the end of the description. I have made mounts and parts to hold the USB power supply and network switch via a friction fit. The addons for the power supply and switch are their own stand alone parts so they can be added independently. To add them on I just welded them together with a soldering iron but glue would work just fine. I plan on adding active cooling with 60mm Fans via usb power in the future.

For the inserts I used the m223.2 sunk in with a soldering iron and m2x4 or m2x8 screws. You need 3 brass inserts and 3 screws per pi.

If you like the model please support, it took far too much filament to prototype this. The Original post for this model of mine is here - https://makerworld.com/en/models/566211 - if you want to support my work.

Parts I Used for this Project with links: Brass Inserts - https://a.co/d/6fekP9h Machine Screws - https://a.co/d/8tuqU6y USB Power Supply - https://a.co/d/cIherHH Network Switch - https://a.co/d/gTnpXSF


8 Likes17 DownloadsAugust 8, 2024
