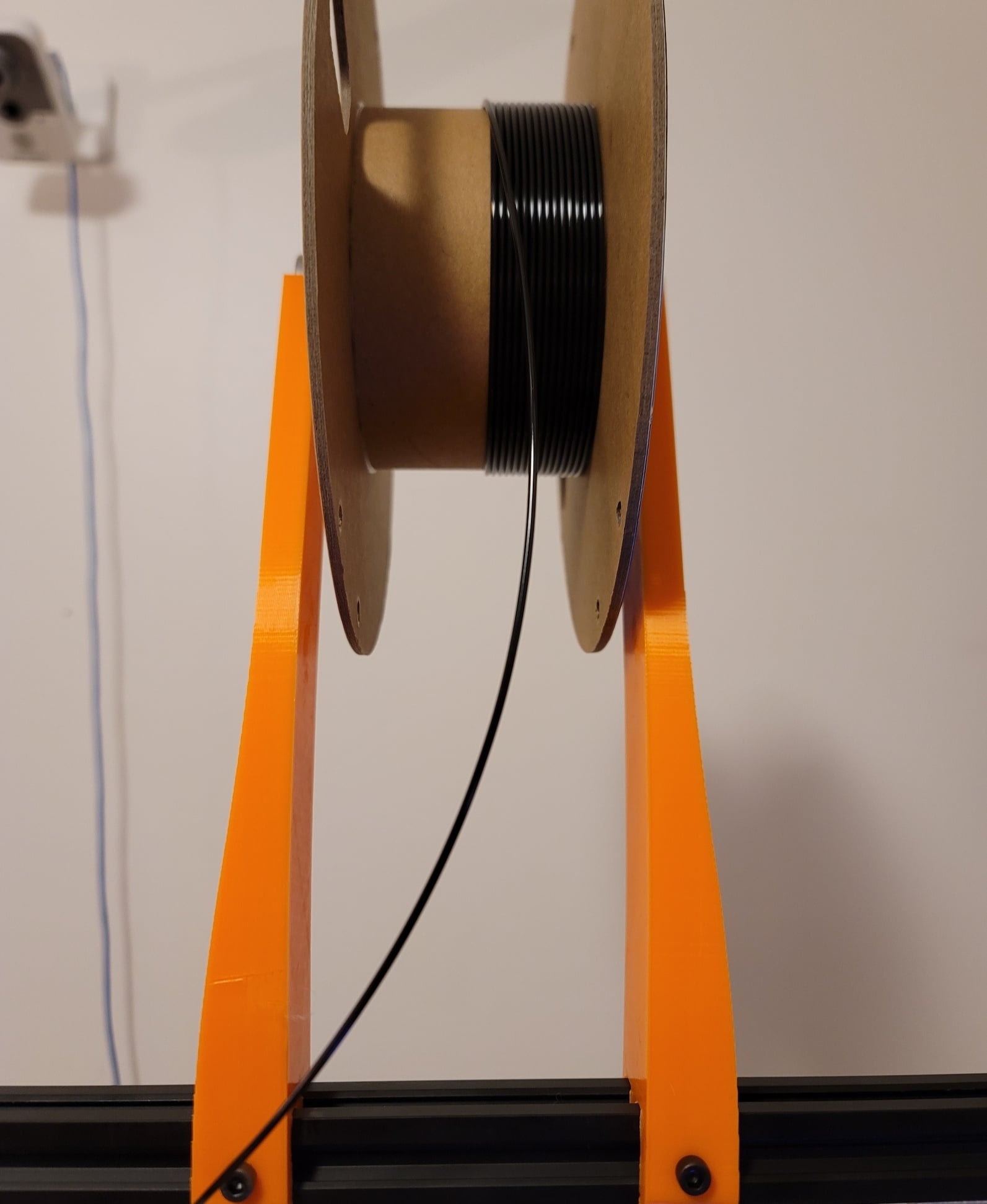

An angled spool holder project, intended to lower friction, angle the spool to an acceptable angle to allow a runout sensor, and to be modular in size.
Can fit spools with a reel diameter of 38-60mm ID. Will add more sizes of cone upon request!
The printed M8x1.25 adjustment caps aren't needed unless you are using a long all-thread rod and want to separate multiple spools.
M8x1.25 all-thread rod, min. length 100mm (https://www.mcmaster.com/catalog/129/3563/99067A114) 608-RS bearing, x2 (https://amzn.to/44ZLihL) M4x8 machine screw, x2 (https://amzn.to/3DRq2yE) M4 T-nut, x2 (https://amzn.to/3DM11Fb)
F3D file is included in "Download All" for your own use.
Looking for the Filament Sensor bracket in the picture? Look no further!
