Toilet screw adapter

by
rapunkill
Follow
Follow
Remix Model
R
rapunkill
|
|
Image 1 of 3
Toilet screw adapter 3d model
R
rapunkill
|
|
Image 1 of 3
Toilet screw adapter 3d model
2D
3D
Makes
Toilet screw adapter 3d model

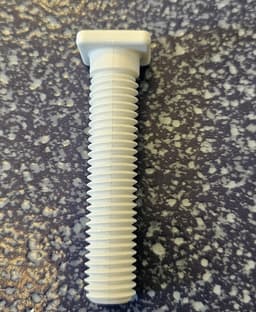

Toilet screw adapter - The bolt we're supposed to use. The printed part is a sleeve that copies to top portion - 3d model
Toilet screw adapter 3d model

Bidet screw adapter for toilets that use threaded metal screws instead of large plastic nuts and bolts to prevent a replacement toilet seat or bidet from rocking.

My printer isn't super dialed in so I had to enlarge the hole with a drill to have the threaded part of the screws go in. The head of the screw had to be forced to go in the recess with a clic (still turned fine).

onshape link: https://cad.onshape.com/documents/97d7be585b918dbec02d02f9/w/6b2fe0acbed9fc40dc01328c/e/c85cf8f7e08d6e495e965a91
