gridfinity plain bins
4.3K downloads · 4 years ago · one of the things that Zacks original divider bins were missing is just some plain jane bins. I've e

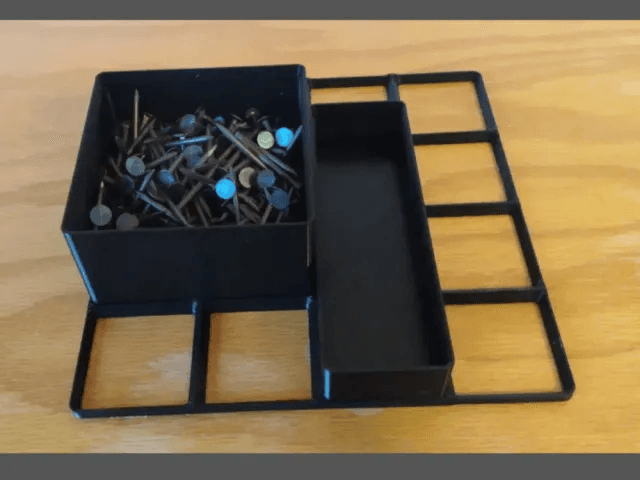

one of the things that Zacks original divider bins were missing is just some plain jane bins. I've exported a few just from his blank storage templates.
Gridfinity Plain Bins - Various heights
Gridfinity Divided Plain Bins
Plain Bins
Solder Tools Insert
13 mm Small Thread, Plain Head, Bolt
20 mm Big Thread, Plain Head, Bolt
13 mm Big Thread, Plain Head, Bolt
9 mm Big Thread, Plain Head, Bolt
20 mm Small Thread, Plain Head, Bolt
10 mm Mid Thread, Plain Head, Bolt
20 mm Mid Thread, Plain Head, Bolt
9 mm Small Thread, Plain Head, Bolt
18 mm Mid Thread, Plain Head, Bolt
20 mm Small Thread, Plain Head, Shank Bolt
13 mm Big Thread, Plain Head, Shank Bolt
20 mm Big Thread, Plain Head, Shank Bolt
13 mm Small Thread, Plain Head, Shank Bolt
Dispenser lids
10 mm Mid Thread, Plain Head, Shank Bolt
i love those bins. printed quite a few. i would really need some of those bins with x9 height. any chance you could generate them with that height or somehow share the source files to modify?
Thank you for adding the 1x12 versions. However, is it possible to add the same 1x12 variants but with the label and with/without inner slanted walls? Also, I haven't found any tutorial for beginners online on how to easily modify the parametric files. Would love your help to point me in the right direction.
Thank you - I've tweaked some to be 77 mm tall so they take the full height available in my drawers.
I use these for things that don't need labelling, like popsicle sticks.
But if you don't label it, how will you know that they're popsicle sticks?
Love these. Using the 2x5x6. Any chance of making a 3x5x6
funny how even Zack forgot to make one that matches the raspberry pi zero 1 or zero 2.
1 slot, divider in the middle, around 90 mm tall, nothing that blocks the opening (will hold 2 pi zero).
i will have to try to make one myself. the perfect starting project i guess. just increasing the z length without changing the bottom/base. because Cura wont let me do this out of the box sadly.
thanks for sharing.
It´s a very nice set. It would be great to have it with the bottom, even if inside is not flat, saving on material, as most of the time you don`t need magnets or weights.
Could you add taller versions, please? The only tall holders that seem to be available have slots/holes. Some big tall and empty version would be amazing.
I've added 1x1x12, 1x2x12, and 2x2x12.
Would you mind posting stls of 3x4x6, 3x4x3 and 3x4x1?
Ive added these, note that 3x4x1 isnt a size afaik, I went with 3x4x2
What did you modify from the original parametric file? I tried modifying the parameters slotsHigh, slotsWide, and slotsDeep but there are rebuilding errors.
Those parameters. Fusion doesn't deal well with bodies being added into the timeline before extrudes that join a bunch of bodies. Most of the time you have to go back and fix things.
Exactly what I'm looking for. Could you make some that are taller 4"-5"? like cup size to store pens and stuff?
turns out this is something other people want too, I've added 1x1x12, 1x2x12, and 2x2x12.
There are better options in the gridfinity system already to store pens and tall things. I really meant these as a stopgap for when things didn't exist already.
