Please check out the assembly tutorial for a similar keyboard: https://youtu.be/iOeYkLlq9Ds

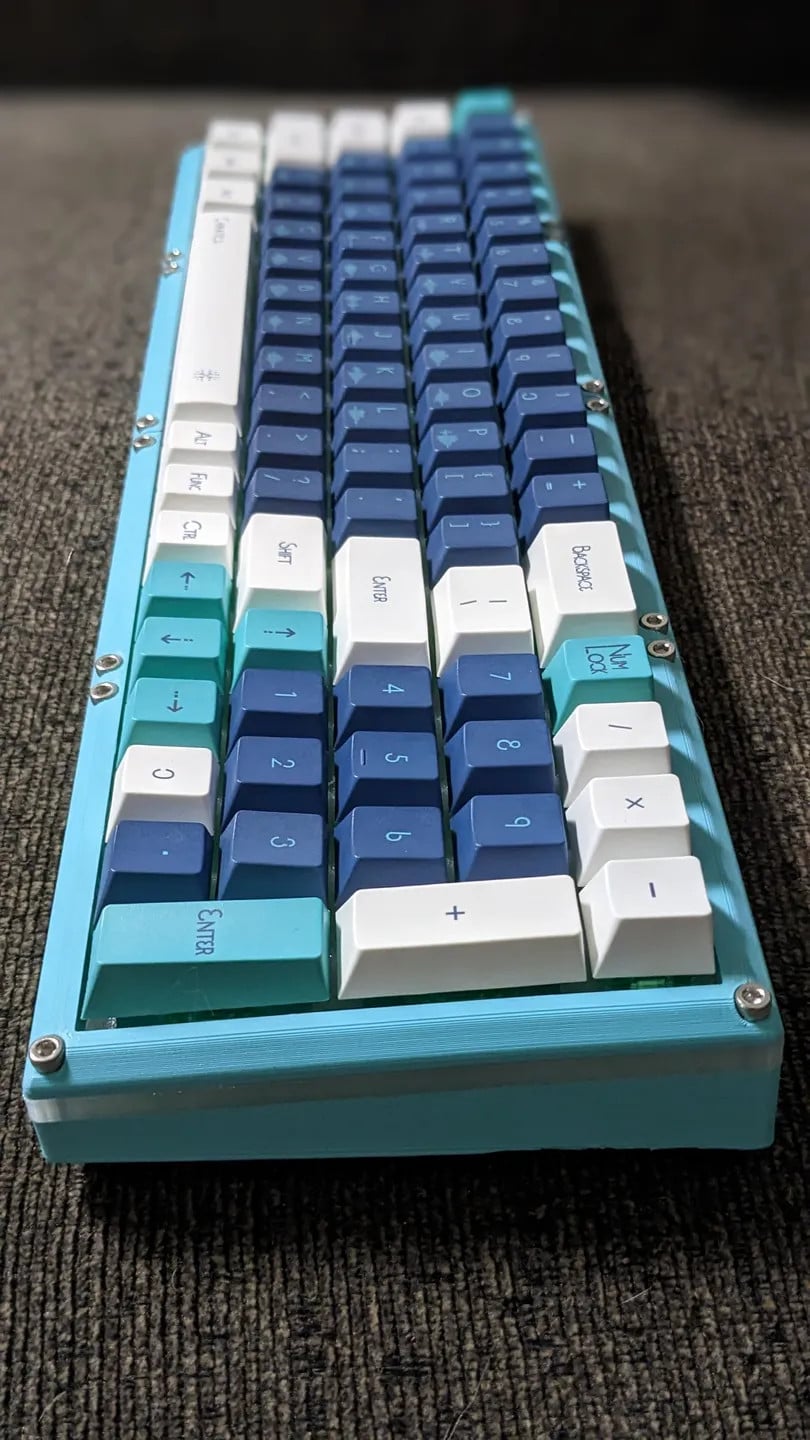

Friends and coworkers were asking for a 3D printed keyboard that included a numpad. Here it is. The layout is similar to my 65% keyboard and is compact enough to be printed and assembled the same way. This keyboard has been completely modeled from scratch, but the design was inspired by the keyboards originally designed by Thingiverse user Fumbucker. All the pieces will fit on a standard Ender 3 clone and can be printed without supports. For the micro controller, I would recommend using a Teensy 2.0++ but you could use any Arduino compatible controller that has enough pins.
If you find this design interesting, please check out my other 3D models and my YouTube Channel.
You will need: 1 - Teensy 2.0++ or another development board 81 - 1N4148 Diodes 81 - of your favorite mechanical keyboard switches A compatible keycap set 5 - 2unit plate mount stabilizers 1 - 6.25 plate mount stabilizer for the spacebar 1 - USBC Breakout board 8 - 16mm M3 bolts 8 - 20mm M3 bolts 16 - M3 nuts Some wire and maybe some rubber feet for the bottom
3D PRINTING SETTINGS
Material: PLA Infill: 20% Layer Height: .2mm Supports: No
