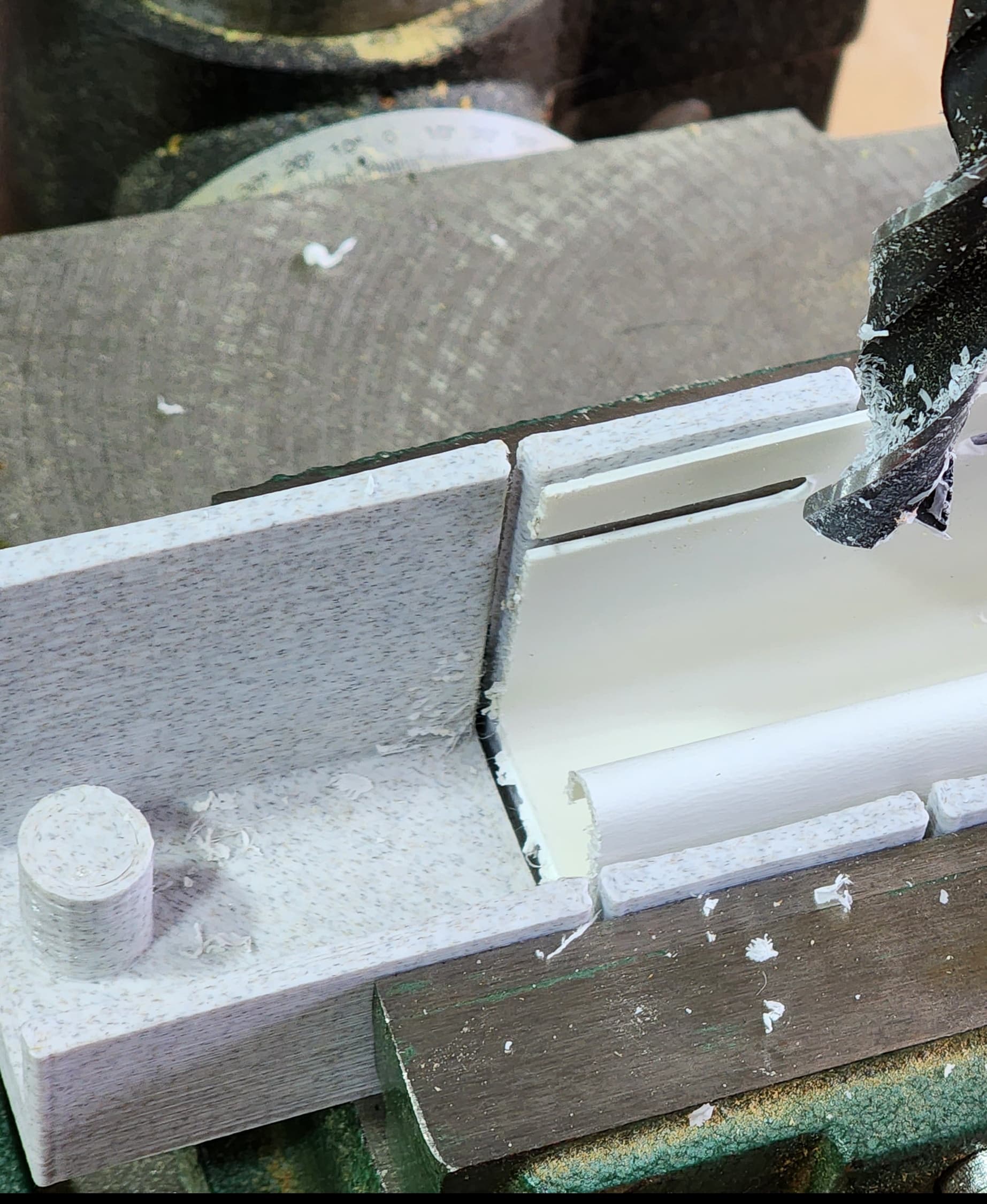

LED Pixel Drill Press Jig - J Channel - The first line is used to align the Jig to drill the first hole on the J-channel. - 3d model

LED Pixel Drill Press Jig - J Channel - Add Clamp to secure J-Channel. - 3d model

LED Pixel Drill Press Jig - J Channel - GO Slow! Going too fast will cause J-channel to climb up the Drill bit. - 3d model

LED Pixel Drill Press Jig - J Channel 3d model

LED Pixel Drill Press Jig - J Channel - Now the First Hole can be moved to the post for proper spacing between pixels. - 3d model

LED Pixel Drill Press Jig - J Channel - Rinse and Repeat! - 3d model

LED Pixel Drill Press Jig - J Channel 3d model

Drill Press Jig for LED bullets 12 mm in J-Channel. The lines ae to help with alignment and proper spacing. The spacing is 2.75 inches between centers.

J-channel purchased at Lowes.
