Gear Orb Fidget - Super fun print! I scaled it up to 135% and used a red/blue dual color silk from R3D. I had some filament twisting during the print so it's not perfect.

A note to the creator, please put a note about the multi color tower in the description above. I didn't know about it until after printing everything and you mention it in the assembly video which is to late at that point.

If you intend on scaling it up, be aware that the tolerances don't play super well. It has obviously been optimized for the normal scale because it gets a bit lopsided at the larger scale. Still super cool though!

Also, if you're having trouble with assembly, make sure you have place the round vs sharp hubs in the correct spots. - 3d model

Gear Orb Fidget - Beautiful elegant print but watch your fingers, it bites - 3d model

Gear Orb Fidget 3d model

Gear Orb Fidget 3d model

Gear Orb Fidget - Dual color filament was easy to align thanks to the video and cylinder. Great design! I had to modify the brim gap to 0.05 so that the tall pieces wouldn't tip over but then it was fine. - 3d model

Gear Orb Fidget 3d model

Gear Orb Fidget - Stronghero pla silk rainbow filament. - 3d model

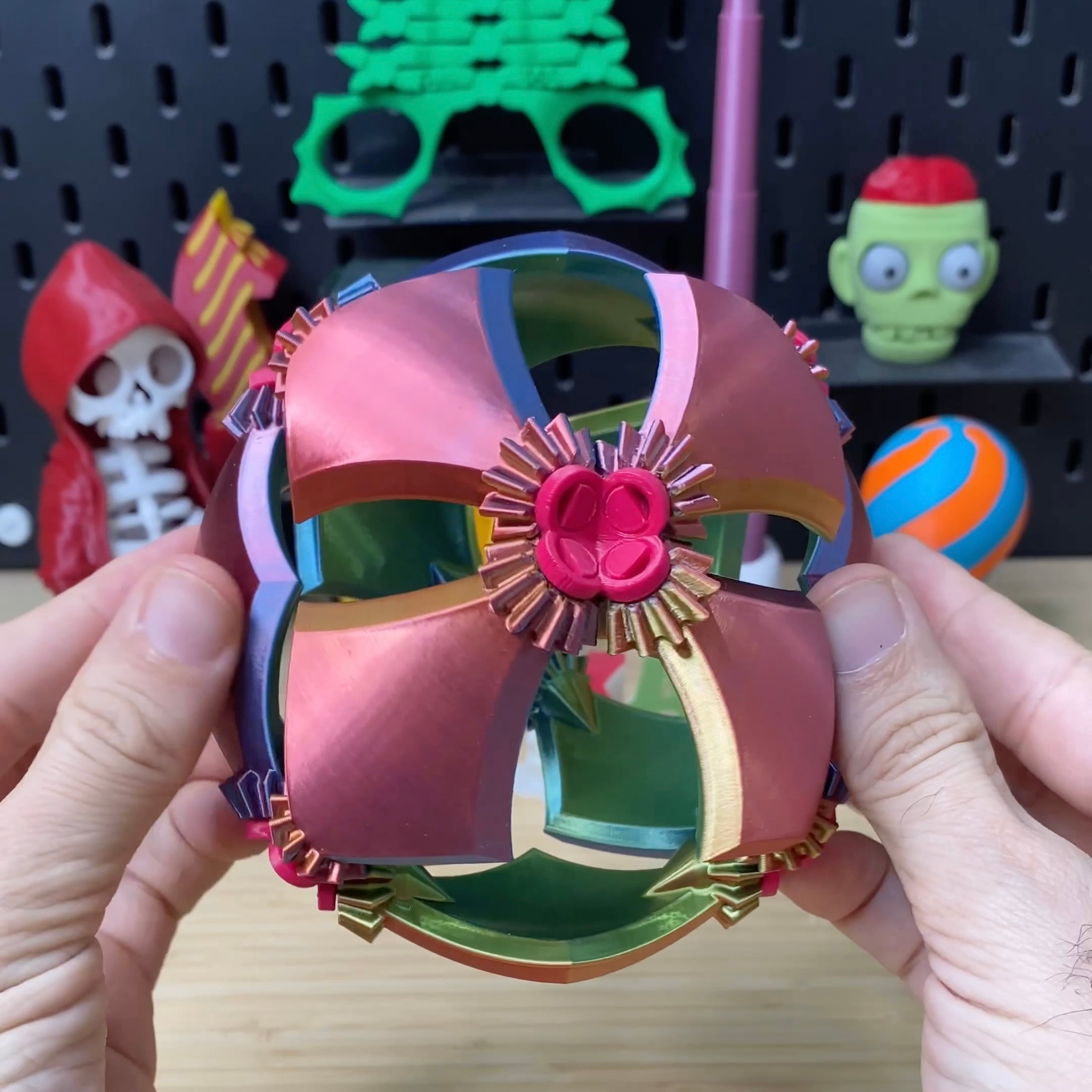

Gear Orb Fidget - My make
https://kady3dprinting.com/model/3d-printed-gear-orb - 3d model

Gear Orb Fidget 3d model

Gear Orb Fidget 3d model

Gear Orb Fidget 3d model

This model is restricted by licensing terms.

View license.

For this one, you need: 12 Pieces 24 Pins 6 Connectors

You can also just print the "All" File, it has everything you need

Print settings. The Pieces/Gears could need a brim. No supports.

Assembly: I made a Video about that. https://youtu.be/L0v4gBz1jnw

Troubleshooting: To tight. If the standard Connector is too tight, print one of the other connectors provided. The higher you go, the more loose everything should become. But there is also too loose when the gears stop engaging properly.

Categories:

,

Tags:

409 Likes1.4K DownloadsSeptember 27, 2024

409 Likes1.4K DownloadsSeptember 27, 2024

This model is restricted by licensing terms.

View license.

Instructions

Filament • 0.2mm

MaterialPLA

Layer height0.2 mm

Infill density10 %

SupportsNone

BrimYes
