Gear Orb Fidget

by
RuvenBals
Follow
Follow
Remix Model
Dragonsblood3D
Dragonsblood3D
|
|
Image 16 of 20

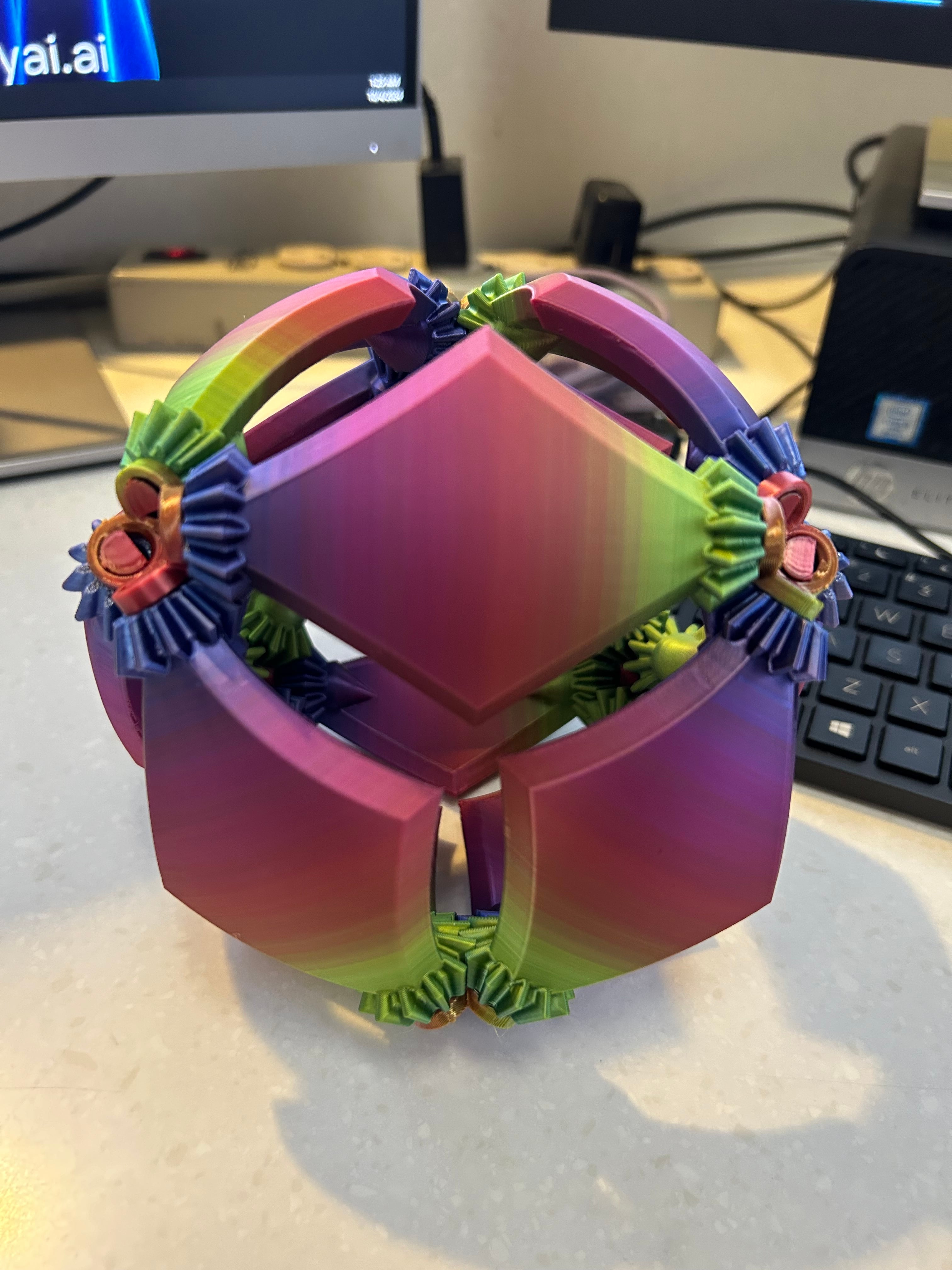

Gear Orb Fidget - Stronghero pla silk rainbow filament.  - 3d model
Dragonsblood3D
Dragonsblood3D
|
|
Image 16 of 20
Gear Orb Fidget - Stronghero pla silk rainbow filament.  - 3d model
2D
3D
Makes
instagram-play
Gear Orb Fidget 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget - Super fun print! I scaled it up to 135% and used a red/blue dual color silk from R3D. I had some filament twisting during the print so it's not perfect.

A note to the creator, please put a note about the multi color tower in the description above. I didn't know about it until after printing everything and you mention it in the assembly video which is to late at that point.

If you intend on scaling it up, be aware that the tolerances don't play super well. It has obviously been optimized for the normal scale because it gets a bit lopsided at the larger scale. Still super cool though!

Also, if you're having trouble with assembly, make sure you have place the round vs sharp hubs in the correct spots. - 3d model
Gear Orb Fidget - Beautiful elegant print but watch your fingers, it bites  - 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget - Dual color filament was easy to align thanks to the video and cylinder.  Great design!   I had to modify the brim gap to 0.05 so that the tall pieces wouldn't tip over but then it was fine. - 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget - Stronghero pla silk rainbow filament.  - 3d model
Gear Orb Fidget - My make
https://kady3dprinting.com/model/3d-printed-gear-orb - 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget 3d model
Gear Orb Fidget 3d model
This model is restricted by licensing terms.

For this one, you need: 12 Pieces 24 Pins 6 Connectors

You can also just print the "All" File, it has everything you need

Print settings. The Pieces/Gears could need a brim. No supports.

Assembly: I made a Video about that. https://youtu.be/L0v4gBz1jnw

Troubleshooting: To tight. If the standard Connector is too tight, print one of the other connectors provided. The higher you go, the more loose everything should become. But there is also too loose when the gears stop engaging properly.


409 Likes1.4K DownloadsSeptember 27, 2024


409 Likes1.4K DownloadsSeptember 27, 2024
This model is restricted by licensing terms.

Instructions

Filament • 0.2mm

MaterialPLA
Layer height0.2 mm
Infill density10 %
SupportsNone
BrimYes
