#ThangsBambuContest

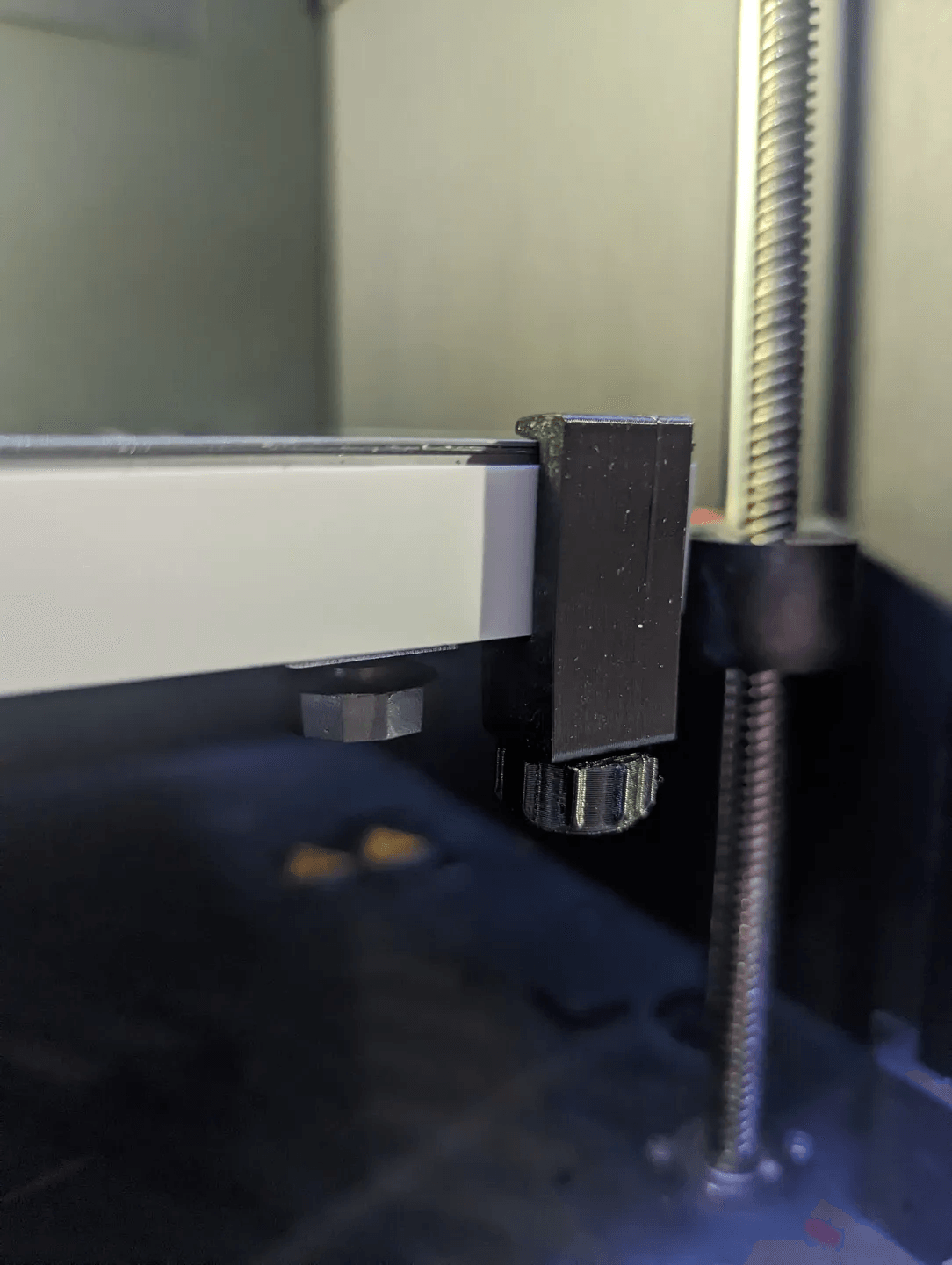

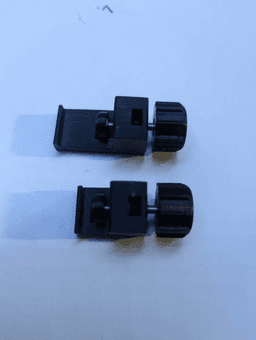

Used to hold the bed down while printing full bed models that have the potential to curl up the bed edges
There is slight total print height loss, do double check your clearance by homing and lowering the bed 250mm. Measure your height with adapter installed from there and adjust your master print height
Use at your own risk and be cautious of the bed height limits to so you don't break anything.
Printing:
High infill (30-40%) recommend 4-5 Walls with the brackets on there sides to give better layer strength Appropriate material to the bed temperature, ABS and higher strongly advised Caution:
-on back left placement is important so it doesn't catch the purge dump bin Bed stop's 35mm from top of bed to base, these adapters are 43mm or 10mm higher. Essentially you'll lose 10-15mm of totally print height in theory. reduces the outer edge by 5mm use the P1P start Gcode and copy it into your slicer file to avoid the clips
materials:
Print in an acceptable materials no PLA for ABS etc… x2 M3 nuts x1 M3 25-30mm bolt Revisions:
Feb 17 2023
Adjustments made to the location of the bottom tension, and adjust the parts to properly move as to many nuts locked up the tool
