This is a 90% COMPLETE WORK IN PROGRESS. It is already functional, but missing the following:

  1. Holder/slot for the internal speaker
  2. switch for voice activation control
  3. rear panel to cover up around the USB slot and reuse the Roku flag
  4. some mechanism to add IR filter material to the hole in front for the IR LED would be nice and improve the appearance

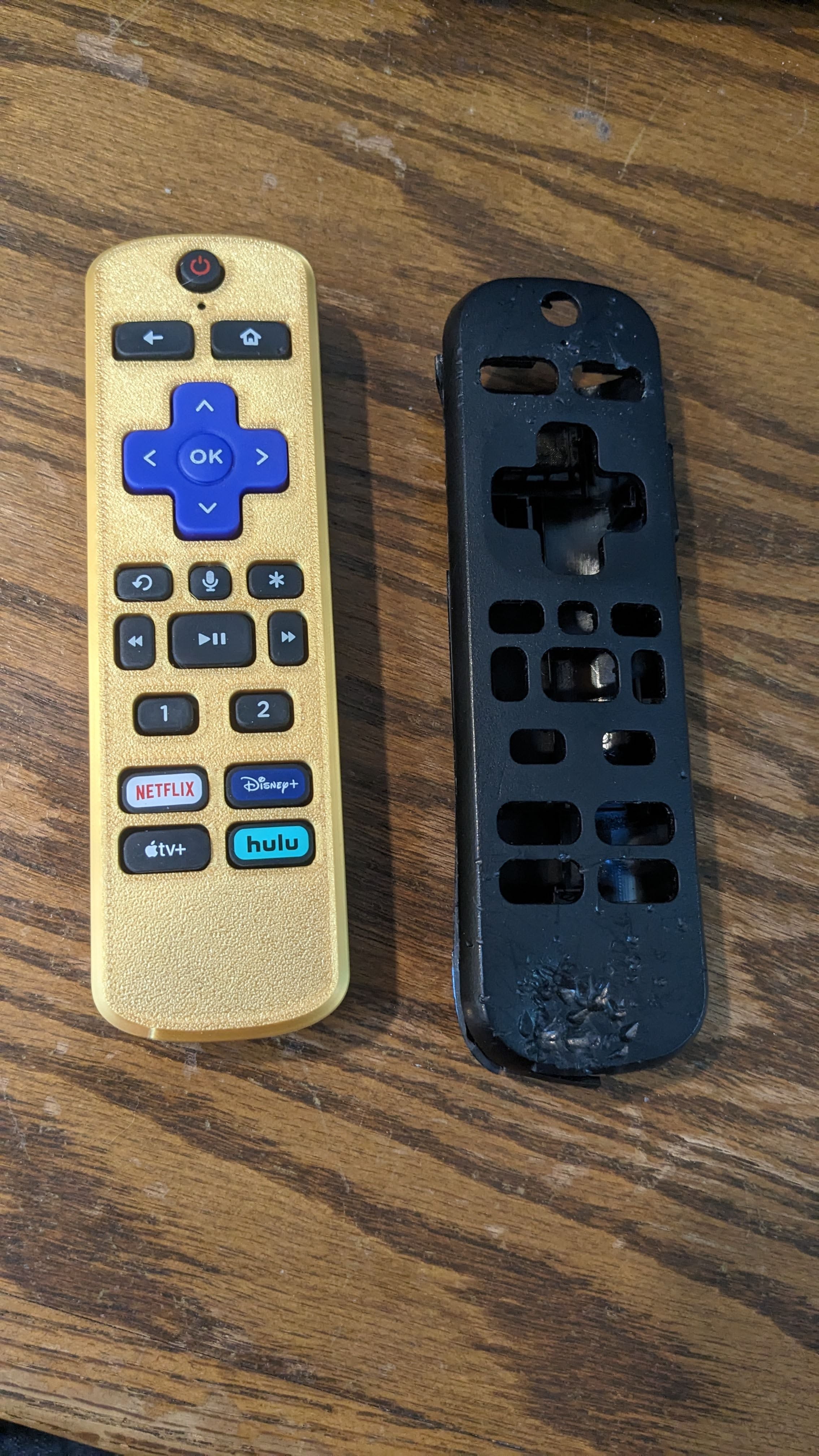

One of my dogs ate my Roku Voice Remote. The electronics survived, but the case was not salvageable. I wasn't able to find a ready made design to replace the damaged case, so this is my attempt at the same.

This is public in onshape here: https://cad.onshape.com/documents/9a1bfb1d31e6596f08c145e0/w/8f25e4c9c837cc29a71eb8c0/e/ee14b3e46f56976e23a957bc
