Label Slot Bins for Gridfinity
438 downloads · 2 years ago · Little rework of Zack's original bins. The headline feature is a side inserted slot for 9mm label ta
This model is restricted by licensing terms.
View license.

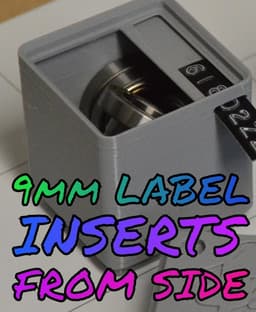

Little rework of Zack's original bins. The headline feature is a side inserted slot for 9mm label tapes, primarily DYMO-style 9mm vinyl embossing tape.
These labels refuse to stick to the 3D printed labeling surface on Zack's original bins, so this is my solution, and it works REALLY well!
Beveled the magnet holes so they print cleanly every time, while still having enough of a counterbore to glue in magnets
The bottom surface inside the bin slopes forwards, so parts stay in the front where you can see and reach them.
These models print well with 0,4mm nozzle and decent with 0,8mm nozzle. 0,6mm is not ideal.
.f3d Parametric source files are now attached
Label Slot Bins for Gridfinity
438 downloads · 2 years ago in and
This model is restricted by licensing terms.
View license.
Gridfinity 4" Thermal Label Dispenser
Gridfinity Divider Bins
Gridfinity Fastener Bin Template (With Driver Storage)
Gridfinity Quad Window Bin 1x1x12
Slidfinity - Gridfinity Compatible Drawers
Screw & Nail Box - Grifinity Bin
GEN2 Decor Gridfinity Magnet Drawers - STANDARD
GEN2 Decor Gridfinity Magnet Drawers - LARGE
GEN2 Decor Gridfinity Magnet Drawers - MINI
Gridfinity 120pc Toolbox Driver Bit Organizer
Chain Link Gridfinity Bin 1x2 40mm
Chain Link Gridfinity Bin 1x2 100mm
Chain Link Gridfinity Bin 1x2 60mm
Chain Link Gridfinity Bin 1x2 80mm
Chain Link Gridfinity Bin 100mm
Chain Link Gridfinity Bin 60mm
Chain Link Gridfinity Bin 40mm
Chain Link Gridfinity Bin 80mm
Chain Link Gridfinity Bin 2x2 (60mm)
CAD file available?
Yes! Parametric .f3d files are now included in the download.
well that's genius. This should be included in the perplexinglabs generator trying to get regular stickon labels to stick to 3d prints is pretty frustrating
Really liking these, will be printing a fair few of them. Is it possible please to get the MiniSlot 3x and 4x variants with a 1x slot size? The slot 1x & MiniSlot 2x have a 1x label slot size, however the minislot 3x size has a 1.5x label slot and the minislot 4x has a 2x slot. I feel these would be more useful with a 1x slot as would normally store larger items that don't need a larger tag.
Is there a way to add a central divider? I tried to use the fusion360 dividerCount parameter but that doesn't seems to have any effect.
