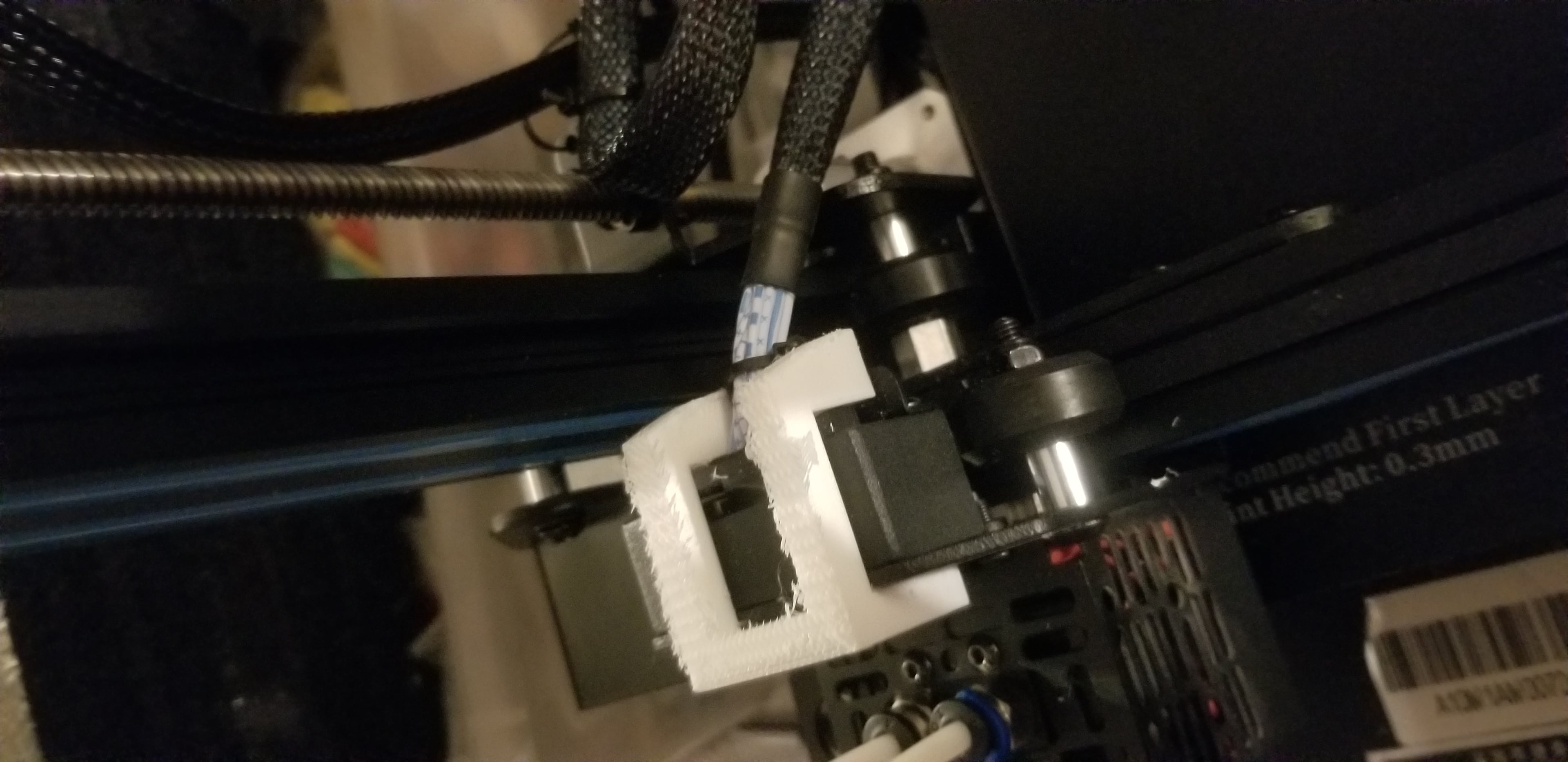

If you do make this please trim back the flared out portion or it will bump into the vertical supports when trying to home or if you are printing an object close to the right hand side. I haven not updated the model. I trimmed it back with a dremel. I had an issue with the print head assembly cable header slipping out of it's mating connector on the print head assembly. I probably just needed to tighten the tie strap but knowing that the current in a couple of those cables has to power the heating element I didn't want that cable too tight. So I made this clamp to hold the connector in place.
