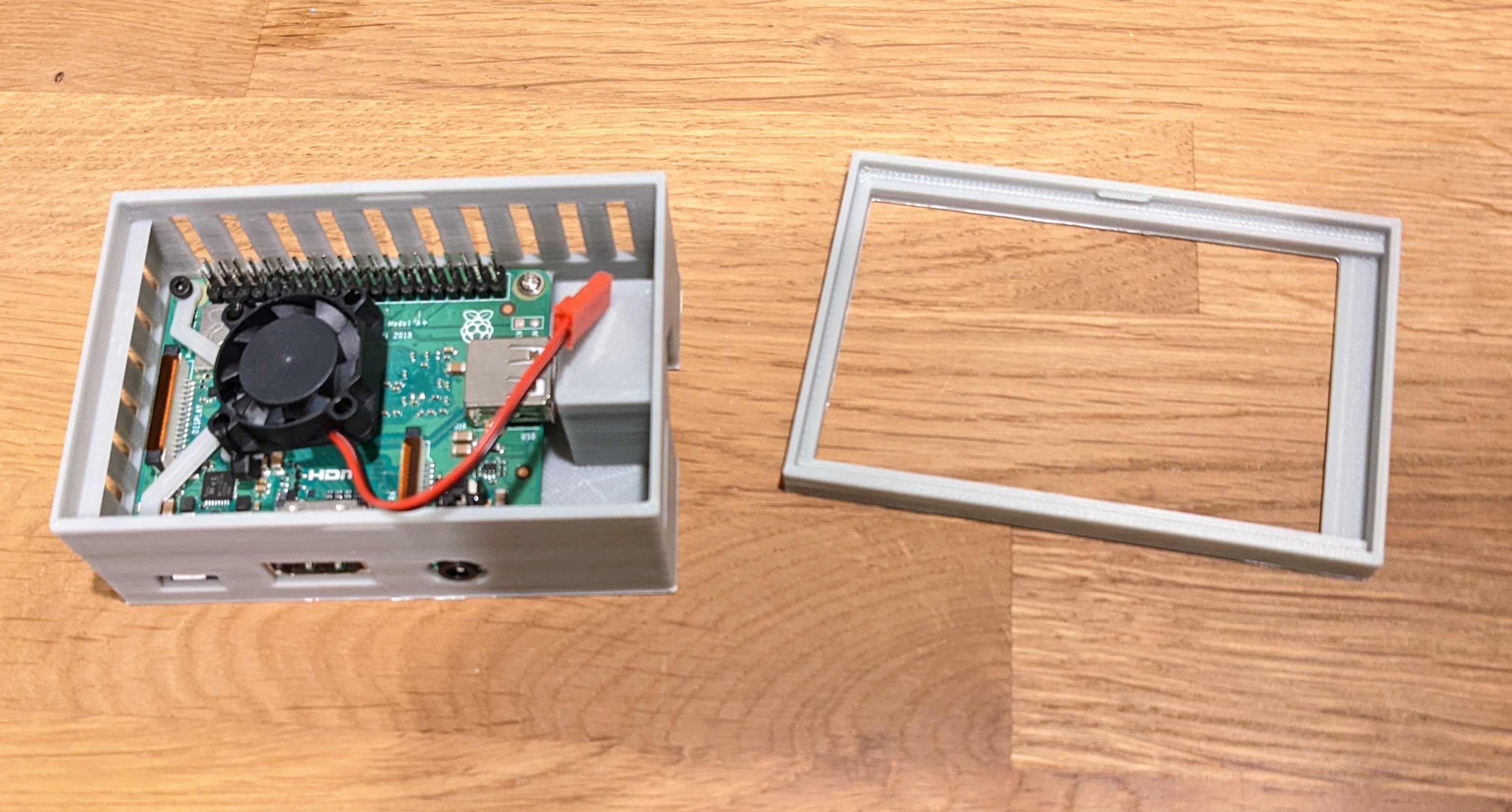

Raspberry Pi 3A with 3.5 inch GPIO LCD Case

Case for a RPi 3A or 3A+ with a 3.5" GPIO touchscreen. It's perfect for a klipper / klipperscreen setup. I used the display from this kit, but any 3.5" 480x320 GPIO module should work : https://www.amazon.com/dp/B08864L7N3

The fan bracket is optional, but the kit came with a 25mm fan, so I figured I'd utilize it. Just zip tie the fan to the bracket.

You'll need some M2x6mm or smaller screws to secure the RPi in the case.

Print parts as provided. No supports are necessary as long as your bridging is halfway decent.
