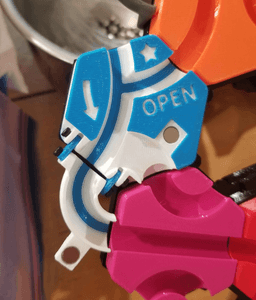

I was inspired by dapperrogue's skybridge tile. So I decided to make a smaller-scale version of it that's easier to assemble. This baby version has just one little bridge that can either drop around to a lower tile on the left side of the board or reach up to a tile on the right side. (And vice versa for the mirrored version.)

The rules are the same as for the original skybridge tile so if you need a rules card, print that one. Those rules are: "Limit: Must play with the bridge suspended off the edge of the board." If you want the piece to be more flexible and powerful, you could play with these rules instead: "Limit: Must be placed with the bridge open. When a ball falls under the bridge: Destroy this." With those rules you can build the tile almost anywhere on the board. That rules card is left as an exercise for the downloader.

Required Materials:

• Two M2x4mm screws (M2x6mm screws should work too)
• Two M2x6mm screws
• Two 6mm x 2mm magnets
• Glue

Printing:

• One Body
• One Bridge, print with supports
• Two Links Make sure the body and the bridge are both for the same direction.

Assembly:

1. (Optional) Use a round file to clear out any debris in the holes in the links.
2. Attach the two links to the body using the M2x6mm screws.
3. Attach the links to the bridge using the M2x4mm screws.
4. Adjust the tightness of the screws so that the bridge opens easily but doesn't move on its own.
5. Glue the magnets into the slots on the body and bridge. Make sure to get the polarities right.

If you like this tile, I have a bunch more on my profile!
