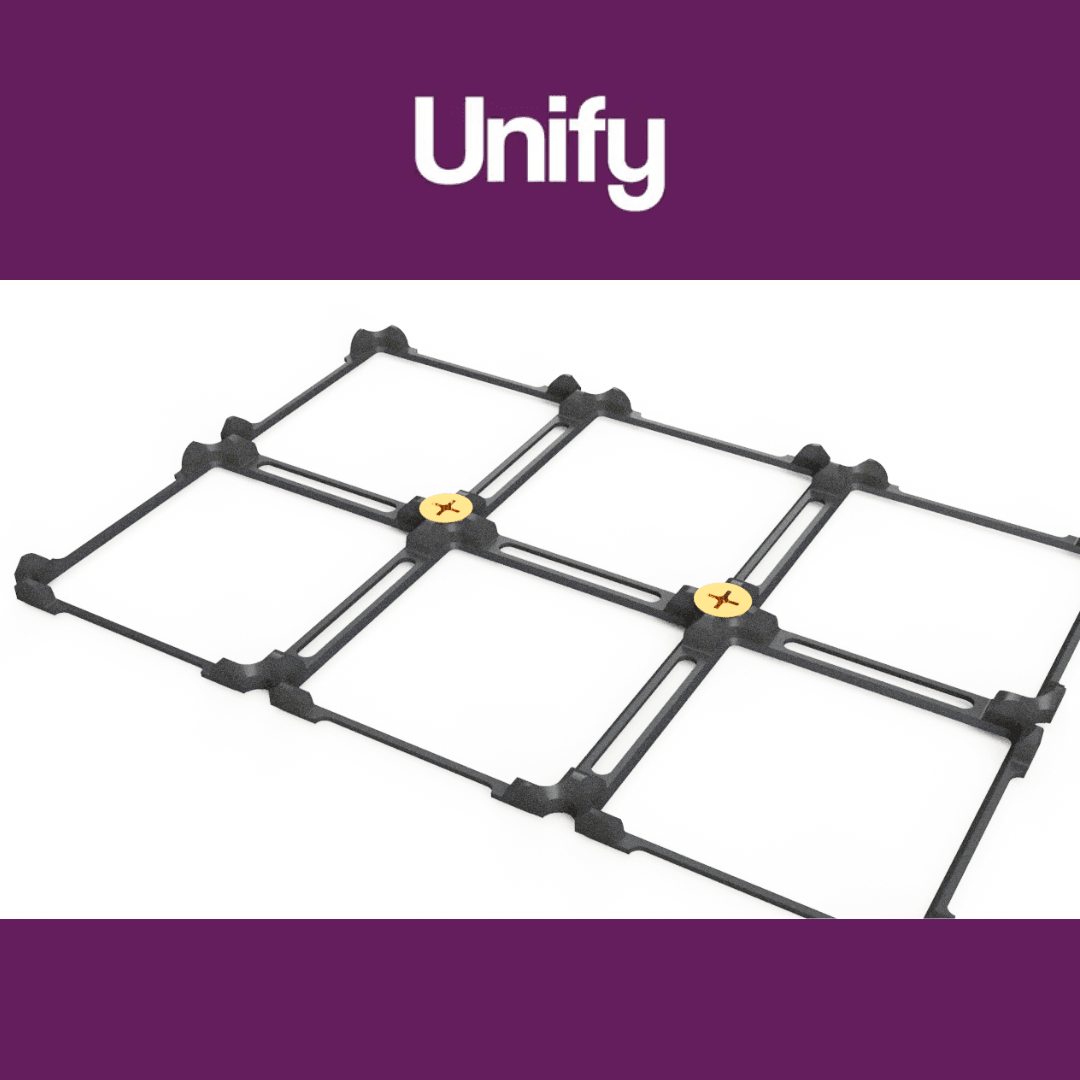

Gridfinity Skeletonised Base with screwholes
151 downloads · 1 year ago · A redesign of a skeletonised Gridfinity base that I saw recently - this design follows the same goal
A redesign of a skeletonised Gridfinity base that I saw recently - this design follows the same goal of reducing material usage while also adding the ability to fix down the base with screws (I used 3.5mm x 20mm wood screws for this)
If anyone would like some more grid sizes uploaded, please let me know and I will add them as soon as possible.
Current Sizes available:
- 3x3
- 3x5
- 3x6
- 4x4
- 4x5
- 4x6
- 5x5
- 5x6
- 6x6
Although this is a lightweight print, I can confirm that it prints well on a 0.6mm nozzle.
I have added a new version (I didn't want to remove this one, in case it's helpful for anyone)
Gridfinity Skeletonised Base with screwholes
151 downloads · 1 year ago in  andÂ
Gridfinity Skeletonised Base (Reinforced) with screwholes
Gridfinity Tool Box Base
Battery Holder with optional Gridfinity base
Gridfinity Base for Ikea Skadis Pegboard
Metal pegboard Gridfinity Base 3x1.stl
Gridfinity+ base
Sharpie Organizer Solid and 1x4 Gridfinity Base
Bergeon 30081-P05 Rotating screwdriver holder Gridfinity Base
Thermopen one holder gridfinity base
Radius Tool with Gridfinity Base
The Stackable Wall Mountable Gridfinity base!
Gridfinity Base and Boxes for Neptune 4 Max Drawer
Tentacle System
Simplified Gridfinity bases optimized for magnets-only
Stackable Wall Mountable Gridfinity base 1x5 and 2x5
Ender3V3SE Gridfinity ZAxis base + clip
Gridfinity Base for Keter Tool Storage Drawers - 5x10
VESA monitor stand arm with Gridfinity base
Gridfinity Bases for Kobalt Toolbox
New reinforced version uploaded :) - Find it here!
Hey I really like the model but would you be able to upload the Cad file itselve ? Id really like to have a 4x5 3x5 4x6 3x6. Thank you verry much for the great model :D
New sizes added as requested :)
Thank you verry Much!!
Do you have any advice on how you screw the plates down ? For me either the screw is sticking too far out of the print or the friction of the screwhead and the print is enough to move the plate a bit or even buckle it when putting down the 4th screw in one plate.
I must admit that I had a similar problem, but I had a box of 3.5mm x 20mm screws that were just the right size. I might have to look into strengthening the frame a little more though - maybe I went a little too far with the material savings :D
yeah i think at least adding a one line thick wall on the edges would probably help with the buckeling a lot ... but on the other hand that would negate a lot of the filament savings ... I guess glueing would mitigate the buckeling issue too but at that point connectors to at least correctly fit together multiple plates would be really good ...
Its a hard problem to optimize tbh
I have added a new version (I didn't want to remove this one, in case it's helpful for anyone)
I'll have a look at this as soon as I have some time - possibly some reinforcing ribs would work. Wouldn't save as much filament, but could look nice while still far lighter than the standard bases.
I will add those additional sizes for you @Admorei (There is already a 3x5 and a 4x5 in there)
