Mini Solder Fume Extractor
8 downloads · 4 years ago · Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:4961352.
【Min
This model is restricted by licensing terms.
View license.
Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:4961352.

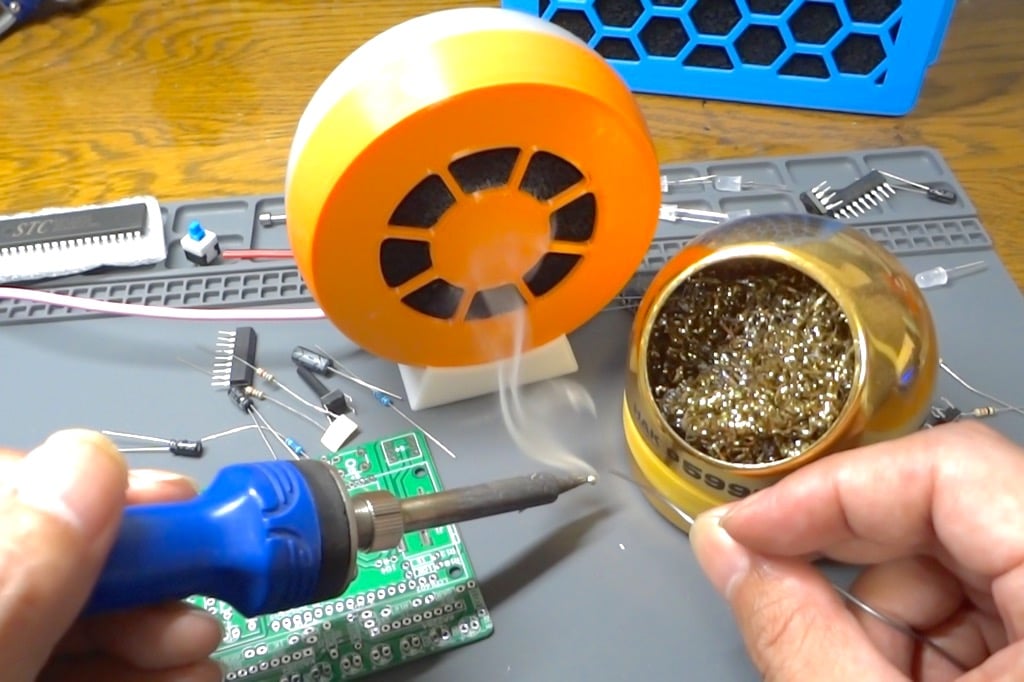

【Mini Solder Fume Extractor】 60mm×60mm×15mm FANを使ったミニサイズのはんだ吸煙器となります。 排気口を本体横に付けることにより縦置き&横置きで使用が可能となっています。 DC-DCコンバーターを使用しMicroUSB端子(5V)入力を12Vに昇圧してFANを駆動させています。
【Google Translation】 It is a mini size solder smoke absorber using 60mm x 60mm x 15mm FAN. By attaching the exhaust port to the side of the main body, it can be used vertically and horizontally. The DC-DC converter is used to boost the MicroUSB terminal (5V) input to 12V to drive the FAN.
【Posted blog】 https://burariweb.info/gadget/3d-printer/mini-solder-fume-extractor.html
【Items used】 ・60mm×60mm×15mm FAN ・DC-DC Converter(Input USB terminal)
