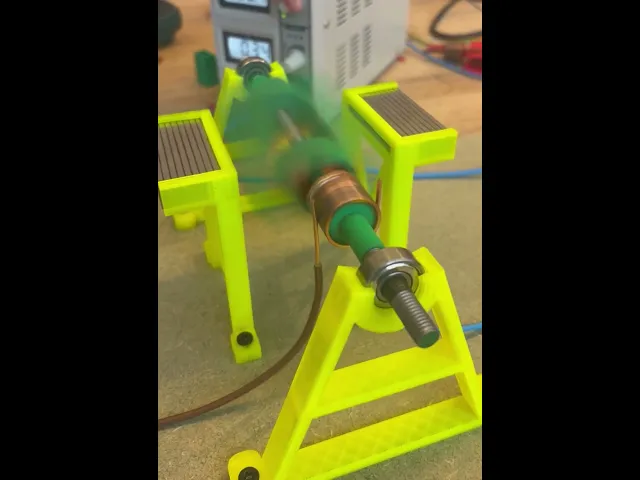

DC-motor, educational

14 downloads · 1 year ago · DC Motor Components not printed): - Stator assembly (neodymium magnets 59mm) - Bearings (8mm x 22mm

Description

DC Motor Components not printed):

Stator assembly (neodymium magnets 59mm)
Bearings (8mm x 22mm x 7mm)
Brushes(copper wire)
Insulated copper wire (for windings)
4mm screws
8mm rot
plank to pin do the model

you can remix this

Discussions

itzaec997 months ago

do you have links for the magnets, bearings, etc? .

TheBelgianGeek7 months ago

Sorry, I only have the link for the bearings. The rest were just some scraps lying around, like the insulated copper wire I salvaged from an old motor. I only had a week to make it, it was a small school project where I may have gone a little overboard.

If you have any questions, I'd be happy to help.

https://www.amazon.com.be/-/nl/kogellagers-koolstofstaal-miniatuurkogellagers-afgeschermd-skateboards/dp/B0DS8GXXF6

itzaec997 months ago

im also gonna turn it in as a school proyect. theyre asking me to turn into a generator as well. hopefully that works out lol.

itzaec997 months ago

Thanks man! I was able to find the magnets. my only question now is, how do you connect the copper tube to your windings? it looks like you welded something but im not sure. also how much voltage are you feeding it?
