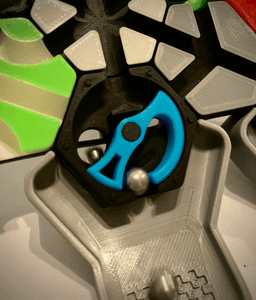

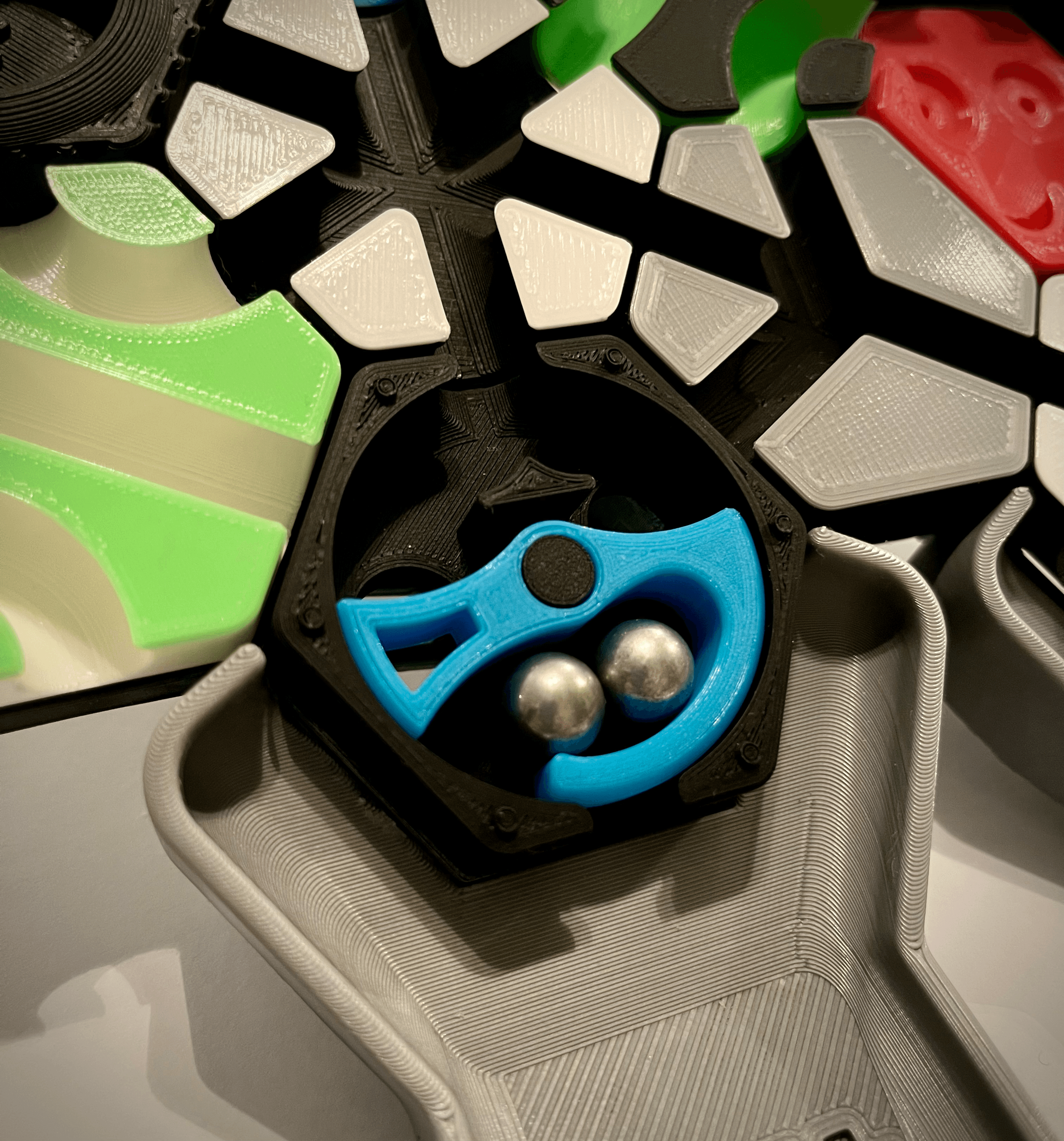

This effect tile is designed to test your luck - based on pure randomness, you will get either 2 balls or nothing at all. In any case, your ball will fall under the board, so you may get an advantage recovering it with, for example, a Respawn Tile!

The rules for this tile are simple - if two balls came out of the tile, put two more through the hole in the cap right away.

ASSEMBLY: Make sure that the flipper can return to approximately a "horizontal" position reliably, then secure the pin (compatible with Flip-Flop and Railroad Switch Tiles) with a drop of glue from the bottom and glue the cap. Also you can use a M3x8 or M3x10 screw instead of the pin. And most importantly - your board must be properly leveled!

P.S: This is not a final version. The model has some minor issues - it may dispense balls on its own in case of strong vibrations and the flipper should reset its position more reliably. Also a rules card will be added.

If you have any issues or suggestions, surely leave a comment!
