ARRI 1/4-20 Pin-Lock NATO Rail Block for CCM-1

by
PrintingNook
Follow
Follow
Remix Model
PrintingNook
PrintingNook
|
Image 1 of 5
ARRI 1/4-20 Pin-Lock NATO Rail Block for CCM-1 3d model
PrintingNook
PrintingNook
|
Image 1 of 5
ARRI 1/4-20 Pin-Lock NATO Rail Block for CCM-1 3d model
2D
3D
Makes
ARRI 1/4-20 Pin-Lock NATO Rail Block for CCM-1 3d model
ARRI 1/4-20 Pin-Lock NATO Rail Block for CCM-1 3d model
ARRI 1/4-20 Pin-Lock NATO Rail Block for CCM-1 3d model
ARRI 1/4-20 Pin-Lock NATO Rail Block for CCM-1 3d model
ARRI 1/4-20 Pin-Lock NATO Rail Block for CCM-1 3d model
This model is restricted by licensing terms.

Hi!

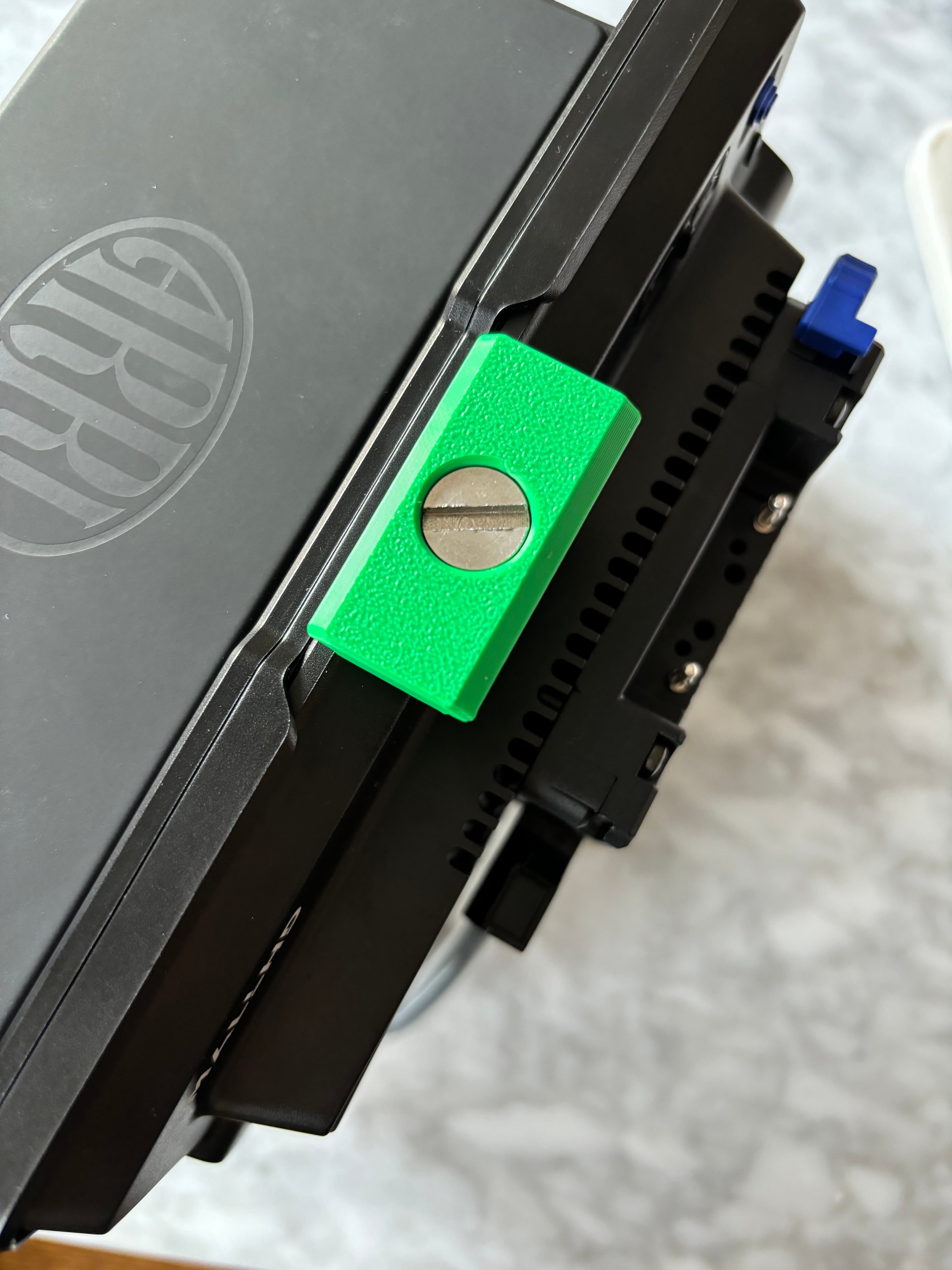

This is a 38mm NATO accessory rail I created with the new ARRI CCM-1 monitor in mind. There are currently (Nov 2023) no accessories for the new ¼-20 Pin-Lock standard so I decided to model one.

Features:

  • 38mm NATO Rail

  • ARRI ¼-20 Pin-Lock (10.4 Spaced pins). NOT compatible with SmallHD

  • Threaded hole to ‘capture’ screw

  • Reference Screw : 11.8mm head dia. 5mm shoulder. 5mm thread.

Printer Settings: (currently) with PLA, 3 walls, 15% infill, on a Bambu P1S.

Notes: I plan to print with PAHT-CF shortly. Will update with notes and photos.
