This model is restricted by licensing terms.

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5553945.

Model has been moved to Printables.com:

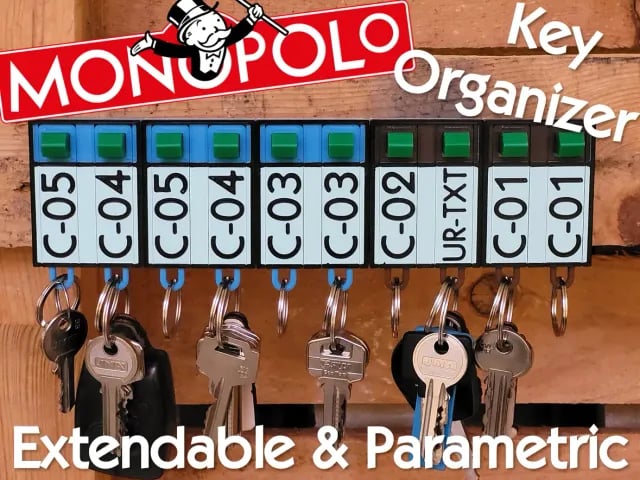

I was tasked by an airbnb [wannabe] overlord to create an extendable key organiser system. I went full monopoly style, not sure he likes the result!

About the design:

  • Heavily inspired by the monopoly game board !
  • Extendable tile system ! You can start your key empire as a key-peasant and expend it all the way to Lord-of-the-Keys
  • Choose your favorite colors, customise your monopoly board
  • No screw visible from the face of the key organizer

How to Print:

  • No MMU needed, just add color changes at the right heights
  • No support
  • Optimised for 0.6mm nozzle (with latest slicer: arachne enable)
  • Tile and keychains to print @0.2mm layers the other elements can be print @0.3mm layer
  • Keychain text is parametric in the freecad file (requires basic knowledge)
  • Joins length are parametric too: input tile length in the freecad file
    • UP join: input number of tile
    • DOWN join: input number of tile - 0.5
  • Print as many triangle as you want

Hadware:

  • Keyrings 25mm will work best (do not touch the wall)
  • Screws: I used a combination of
  • 2.5mm diam *10mm length (5mm diam head)
  • 2.5mm diam *15mm length (5mm diam head)

If you can't work on the Freecad file, I'll be happy to add keychains text variations. Ask me !

Please share your makes! Hope it helps!
