“Simple Wall Multibin Shells” are faster to print and “nicer” looking than Multipoint Rail Multibin Shells.

They can be stacked, extended, turned into a single drawer, and come with internal accessories for further customization.

However, if you want a Multibin Shell that can also connect to Multiboard tiles, connect with other Bins, and has pin holes for securing Internal Dividers and Shelves, then use “Multipoint Rail Multibin Shells” instead.

Multibin Shells are paired with Multibin Inserts to create a “Multibin”. Multibin Inserts give the Shell the functionality to hold/organize specific items.

Bin Base:

• Multibin Shells can be placed on Multibin Panels (50 mm grids).
• They can also be placed on Base Plates , and further secured using Base Plate Bolt Lockers or 10x2 N52 Neodymium Disk Magnets.
• The Bin Base can also connect to a Multipoint to form a Drawer.

Corner Pin Holes: Used for locking external attachments (like Multibin Extensions or Lids).

Dimensions:

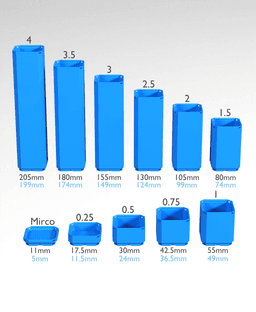

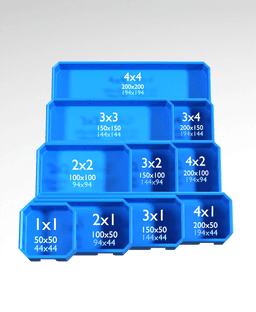

This Multibin Shell is 3x1x1.5 cells (150 mm wide, 50 mm long, and 80 mm high). Stacking a 1.5 cell high Shell on another Shell will increase its height by 75 mm.

The internal distance between walls is 144x44 mm. The total internal height is 74 mm (69 mm up to the top internal rim)

The Multipoint Holes on the Bin Base are directed towards the front (width) of the Bin.

Learn more about Multibins at https://multiboard.io/knowledge-hub

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

For more information about printer settings, click here.

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
