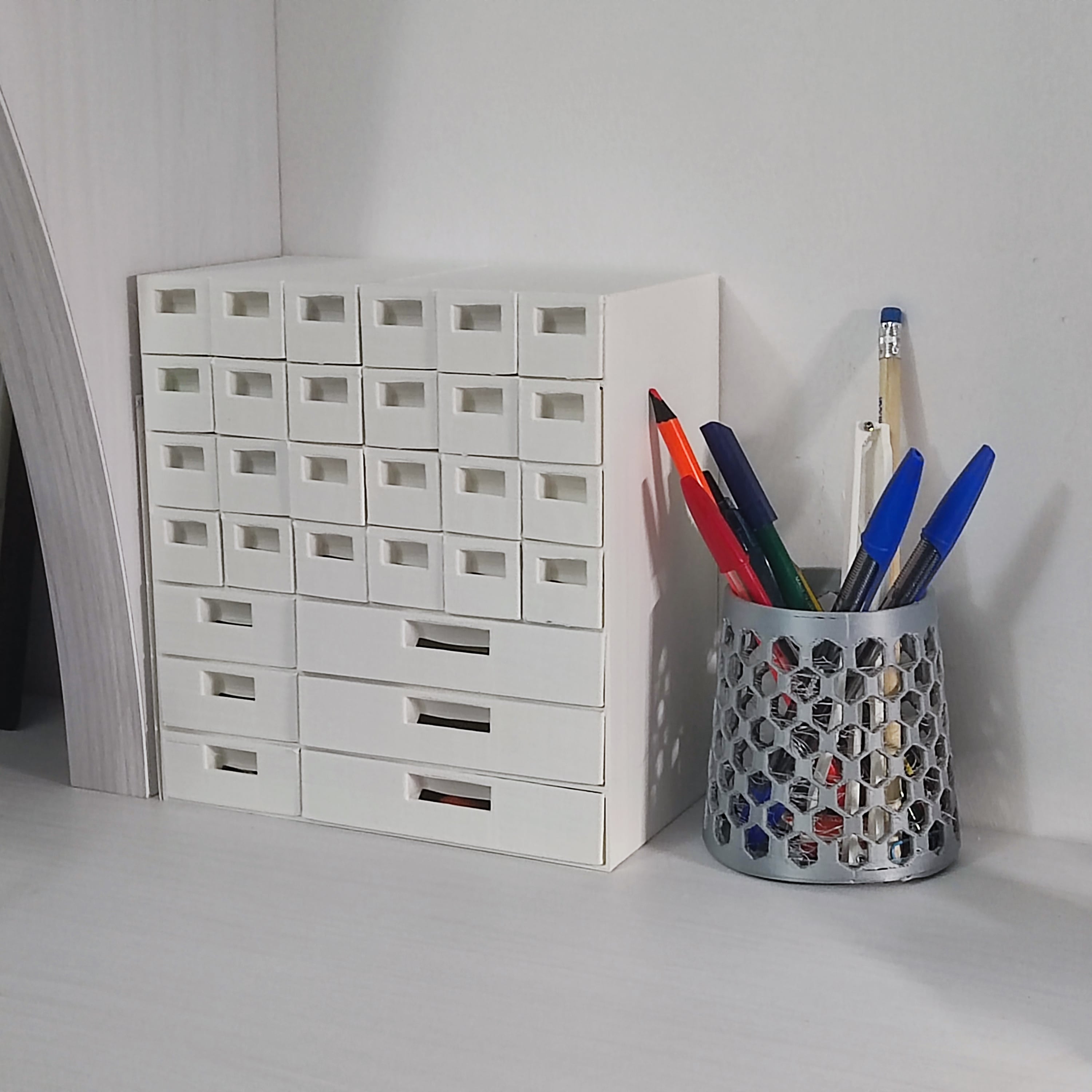

A simple organizer box with 3 different sizes of drawers. Ideal for storing small electronics, screws, resistors, etc...

The overall print takes 1 kg of plastic. I printed all the parts in one day with a stock ender-3. The result ended up pretty well, it seems pretty reliable and robust, maybe too much but I still think it's worth the cost. It can be improved, so remixes are welcomed. I attached the .f3d and .step files for remixing.

The dimensions are the following: Box: 180x191x101.6 mm (outer space dimensions) Drawers: (Inner space dimensions) Small: 25.5x23x84 mm Medium: 55x23x82.5 mm Large: 114x23x82.5 mm

You have to print 24 small drawers, 3 medium and 3 large. It is designed to be 3d printed without supports. The main frame is designed to be printed with a 1mm nozzle. But you can use 0.8 or 0.4 as well. The drawers are designed to be printed with a 0.8mm nozzle. But you can also use 0.4.

Feedback is appreciated.
