EZPZ Screwdriver Bit Clip

Subscribe for access starting at $10 USD
Get access to this model and 293+ more
This model is restricted by licensing terms.

"Keep your friends close and your screwdriver bits closer"

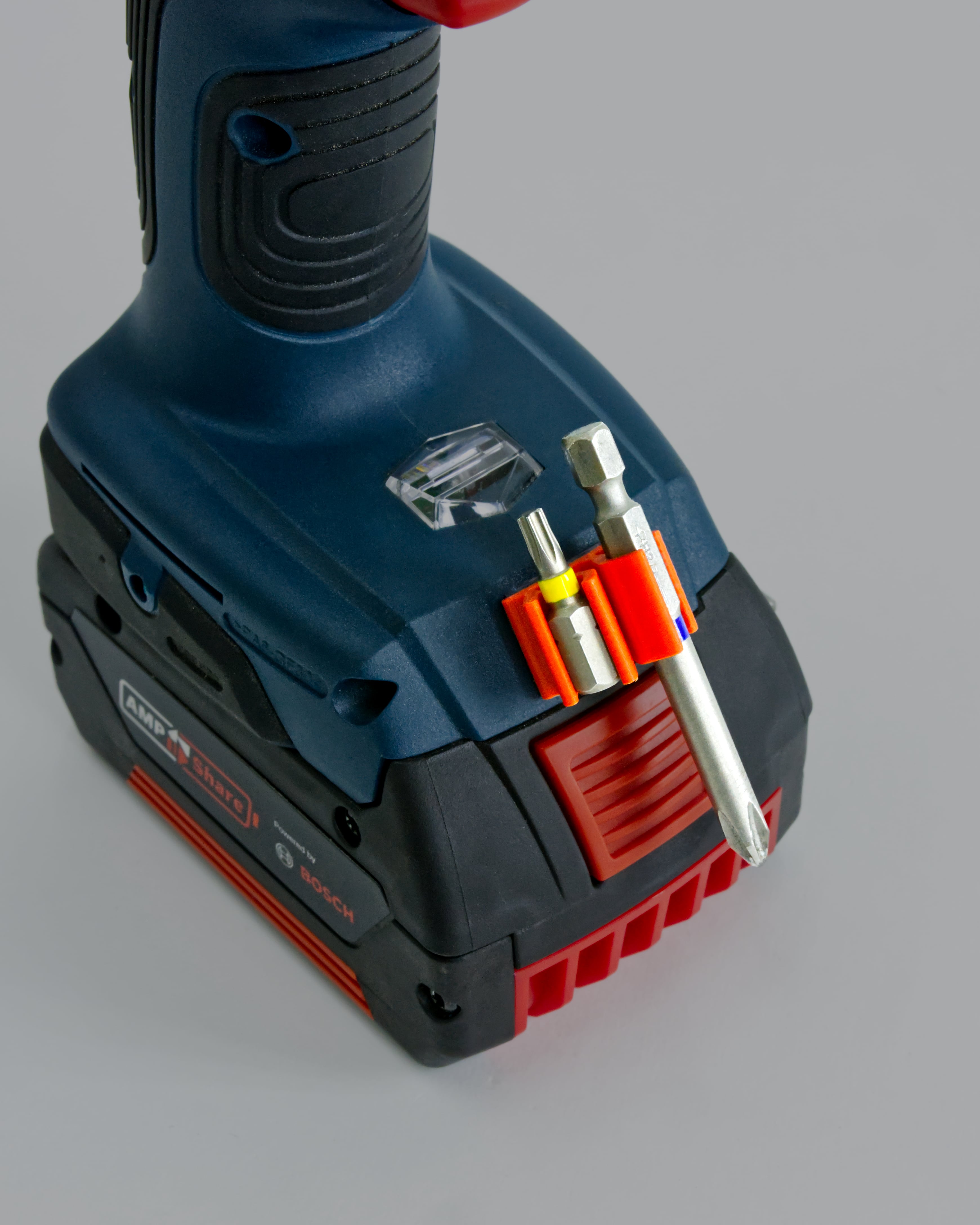

This EZPZ Screwdriver Bit Clip is designed to stick onto your handheld drill or wherever you need constant access to screwdriver bits. It's designed with flexing walls that let your easily snap bits into place, while also keeping them firmly held.

This download includes several versions with flat and curved faces to fit onto various surfaces. Files are named by curve diameter (60mm works perfectly for the side of my drill). Leave a comment if you need another specific diameter. I glued mine in place using hot melt glue, but can use E6000, Double Stick Tape, etc. to secure them.


**Printing Guidelines**

  • Print solid (or just set to 3 solid walls).
  • I printed with ASA for longevity, but I suspect ABS, PLA, PETG, etc. will all work.
  • If your printer has adhesion issues with thin parts on the build surface, you can use a brim/brim ears to prevent failure.
  • I used seam painting along the bottom surface to hide seams (and prevent them being on the flexing arms which could make them weaker).
