🛠 Customizable in Your Browser
Adjust size, height, clearance, and more so it prints exactly how you need.
Customize it on the Lunar Prototypes website. No slicer hacks or CAD required.

Build Your Version Now

See below for more details.

---

Overview

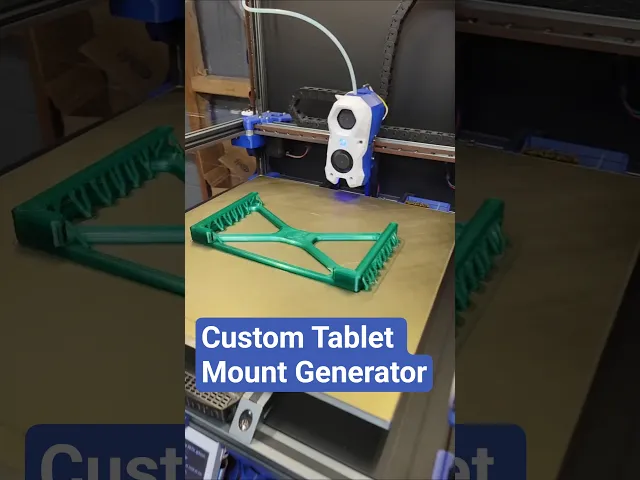

Custom tablet wall mount generator with adjustable width, thickness, port slots, and screw sizing.

Tablet wall mount generator that creates a custom-fit mount based on your device dimensions. Adjust width, height, and thickness, add side cutouts for ports and cable clearance, and select screw size and mounting hole spacing. Designed to fit a wide range of tablets and mounting setups with minimal modification.

---

Customization Instructions

Customize your Wall Mount Tablet Holder directly on the Lunar Prototypes website.

1. Navigate: Go to the customization tab on the model page.
2. Customize: Enter your desired measurements and adjustments.
3. Submit: Click submit and wait for the design to complete.
4. Download: Once the job completes, download your custom STL and slice as usual.

Note: The customization system is currently in beta. Your feedback helps us improve.
👉 Join our Discord if you have issues or ideas.

---

Printing Tips

Printing Technology: FDM
Layer Height: 0.2 mm
Perimeters: 4
Infill: 10%
Infill Pattern: Gyroid
Recommended Material: PLA, PETG, ABS, ASA
Supports: Yes
Support Type: Tree

Notes:

• Supports required, recommend tree supports.
• For toolchangers/multi material printers, recommend PETG interface if mount is printed in PLA.

---

Materials Needed

• 1x Tablet

Instructions:

1. Measure length and width of tablet
2. Measure distance from base of tablet face to first port for both sides.
3. Measure distance between start of first port and end of last port
4. Repeat for both sides.
5. Set dimensions in customizer and generate6. Print & mount

---
